Sound insulating front for BMW 5 Series G61 Touring 520dX (2025)

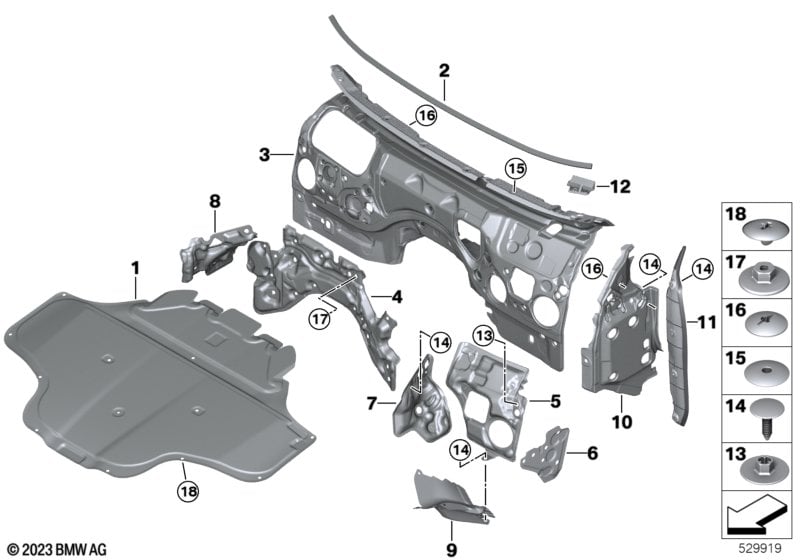

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation, hood | 1 | 51485A0AC19 | Shop at ECS Tuning | ||||||
| 02 | Sound insulation windshield | 2 | 51485A0D970 | Shop at ECS Tuning | ||||||
| 03 | Sound insulat., splash wall, upper part | LHD | 1 | 51489870964 | Shop at ECS Tuning | |||||
| 04 | Sound insulat.dash panel engine room ce. | ICE | 1 | 51489423289 | Shop at ECS Tuning | |||||
| 05 | Noise insulation, firewall on left | LHD | 1 | 51489423303 | Shop at ECS Tuning | |||||
| 05 | Noise insulation, firewall on right | LHD | 1 | 51489423304 | Shop at ECS Tuning | |||||
| 06 | Noise insulation, firewall, front left | LHD | 1 | 51489423307 | Shop at ECS Tuning | |||||
| 06 | Noise insulation, firewall, front right | LHD | 1 | 51489423308 | Shop at ECS Tuning | |||||
| 07 | Sound insulation, partition, inner left | LHD | 1 | 51489423311 | Shop at ECS Tuning | |||||
| 07 | Sound insulation, partition, inner right | LHD | 1 | 51489423312 | Shop at ECS Tuning | |||||
| 08 | Sound insul.,eng.-comp. part.wall,right | LHD ICE/PHEV | 1 | 51489423316 | Shop at ECS Tuning | |||||
| 09 | Sound insulation wheel well left front | LHD | 1 | 51485A0E433 | Shop at ECS Tuning | |||||
| 09 | Sound insulation wheel well right front | LHD | 1 | 51485A0E434 | Shop at ECS Tuning | |||||
| 10 | Sound insulation, A-pillar, bulkhead le | 1 | 51485A0A297 | Shop at ECS Tuning | ||||||
| 10 | Sound insulation, A-pillar, bulkhead ri | 1 | 51485A0A298 | Shop at ECS Tuning | ||||||
| 11 | Seal, side frame, left | 1 | 51485A0A905 | Shop at ECS Tuning | ||||||
| 11 | Seal, side frame, right | 1 | 51485A0A906 | Shop at ECS Tuning | ||||||
| 12 | Holder for vehicle identification number | 1 | 51489875075 | Shop at ECS Tuning | ||||||
| 13 | Clip nut | 5X9 D=30 SW10 | 3 | 07147261260 | Shop at ECS Tuning | |||||
| 14 | Plug-in retainer | 12 | 07147283890 | Shop at ECS Tuning | ||||||
| 15 | Clip | 5 | 07147384894 | Shop at ECS Tuning | ||||||
| 16 | Push-button, gray | 11 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 17 | Plastic nut | 21 | 07149381677 | Shop at ECS Tuning | ||||||
| 18 | Clip | 12 | 51489119216 | $0.37 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 520dX Sound insulating front?
- This technical diagram illustrates the Sound insulating front within the Vehicle trim group for the 5 Series G61 Touring 520dX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulation, hood (Part #51485A0AC19).
- Which models use the hardware listed in this Sound insulating front?
- The hardware and components featured in the Sound insulating front are specific to the 5 Series G61 Touring 520dX produced during 2025. These technical specifications ensure that parts like the Sound insulation, hood (51485A0AC19) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating front assembly?
- Each item in the Sound insulating front corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 520dX, you can identify the Sound insulation, hood by locating its position on the schematic, which then links to the official BMW part number 51485A0AC19 for the Vehicle trim section.
