Sealing cap/plug for BMW 5 Series G61 Touring 520d (2023)

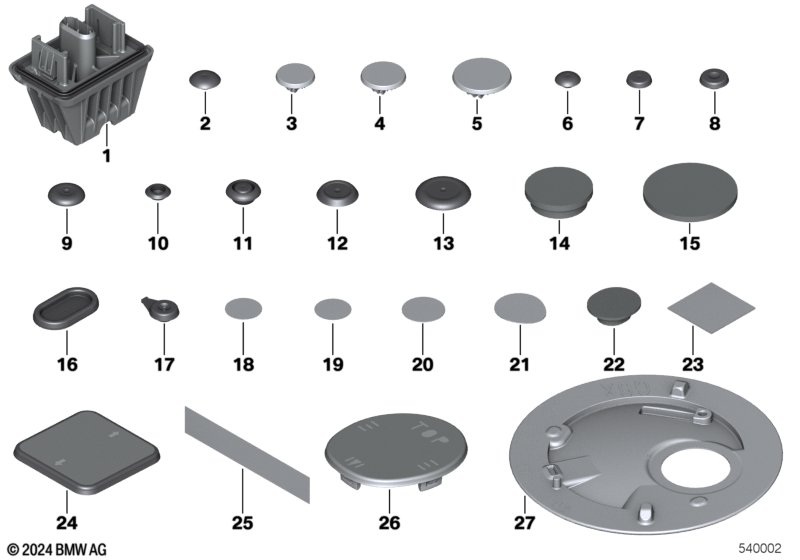

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mount, vehicle lift | 4 | 51719624963 | Shop at ECS Tuning | ||||||
| 02 | Paint plugs with hot-melt adhesive ring | D=15MM | 6 | 07147131128 | Shop at ECS Tuning | |||||
| 03 | Paint plug | D=20MM | X | 51915A0C2C2 | Shop at ECS Tuning | |||||
| 04 | Paint plug | D=25MM | X | 51915A0C2C3 | Shop at ECS Tuning | |||||
| 05 | Paint plug | D=35MM | X | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 06 | Seal plug | D=12MM | 20 | 07147131129 | $0.49 | Shop at ECS Tuning | ||||
| 07 | Blind plug | D=12MM | X | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 08 | Blind plug | D=15MM | 25 | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 09 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 10 | Seal plug | D=15MM | 2 | 07147424260 | Shop at ECS Tuning | |||||
| 11 | Seal plug | D=21,7MM | 2 | 07149626974 | Shop at ECS Tuning | |||||
| 12 | Blind plug | D=25MM | X | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| 13 | Blind plug | D=35MM | 2 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=40MM | 8 | 51712258519 | $0.89 | Shop at ECS Tuning | ||||
| 15 | Blind plug | D=55MM | 2 | 61138353500 | $1.12 | Shop at ECS Tuning | ||||
| 16 | Plug | 26X52MM | 8 | 51713412220 | $1.03 | Shop at ECS Tuning | ||||
| 17 | Seal plug | 2 | 51717440210 | Shop at ECS Tuning | ||||||
| 18 | Sealing film | D=30MM | 4 | 07147472330 | NoS | Shop at ECS Tuning | ||||
| 19 | Adhesive pad | D=30MM | 4 | 07147294885 | Shop at ECS Tuning | |||||
| 20 | Adhesive pad | D=35MM | 2 | 51919624970 | Shop at ECS Tuning | |||||
| 21 | Sealing film | D=40MM | 3 | 07147423498 | NoS | Shop at ECS Tuning | ||||
| 22 | Sealing plug | 20X25MM | 2 | 51713402713 | $0.69 | Shop at ECS Tuning | ||||
| 23 | Seal and insulation mat | 50X50MM | 2 | 07149626118 | Shop at ECS Tuning | |||||
| 25 | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| 26 | Cover for steering column opening | 1 | 51477343485 | Shop at ECS Tuning | ||||||
| 27 | Sealing cap, floor panel, rear | 1 | 51715A11DD1 | NoS | Shop at ECS Tuning |
