Exterior trim / grill for BMW 4 Series G22 Coupé LCI M440dX (2025)

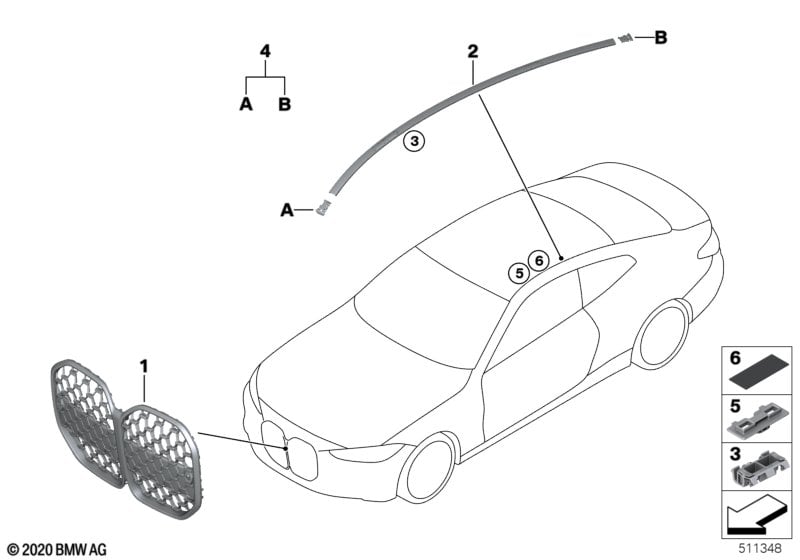

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI M440dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function and Parking assistance system Plus |
S5AUA=Yes S5DFA=No S5DNA=Yes |
|||||||||
| 01 | Grill front | ICAM/MPA/FRR | 1 | 51135A55DB3 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function and Parking assistance system Plus |
S5AUA=No S5DFA=No S5DNA=Yes |
|||||||||
| 01 | Grill front | ICAM/MPA/BASIS | 1 | 51135A55DA9 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function and Parking assistance system Plus |
S5AUA=No S5DFA=Yes S5DNA=Yes |
|||||||||
| 01 | Grill front | ICAM/MPA/MRR | 1 | 51135A55DB1 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function and Parking assistance system Plus |
S5AUA=No S5DFA=Yes S5DNA=No |
|||||||||
| 01 | Grill front | MPA / MRR | 1 | 51135A55DB0 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function and Parking assistance system Plus |
S5AUA=No S5DFA=No S5DNA=No |
|||||||||
| 01 | Grill front | MPA / BASIS | 1 | 51135A55DA8 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function and Parking assistance system Plus |
S5AUA=Yes S5DFA=No S5DNA=No |
|||||||||
| 01 | Grill front | MPA / FRR | 1 | 51135A55DB2 | Shop at ECS Tuning | |||||
| 02 | Roof molding prime-coated left | 1 | 51137930955 | Shop at ECS Tuning | ||||||
| 02 | Roof molding prime-coated right | 1 | 51137930956 | Shop at ECS Tuning | ||||||
| For vehicles with Carbon roof |
S40CA=Yes |
|||||||||
| 02 | Roof molding left | M | 1 | 51138073063 | Shop at ECS Tuning | |||||
| 02 | Roof molding right | M | 1 | 51138073064 | Shop at ECS Tuning | |||||
| 03 | Clip, upper part | CFK | 14 | 51318075020 | Shop at ECS Tuning | |||||
| 04 | Set of end caps, primed | 1 | 51137930959 | Shop at ECS Tuning | ||||||
| For vehicles with Carbon roof |
S40CA=Yes |
|||||||||
| 05 | Clip, bottom part | CFK | 1 | 51138086135 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive tape | 1000MM | 1 | 51138086328 | Shop at ECS Tuning | |||||
| For vehicles with Carbon roof Is required for the installation of part number 8 086 135. |
S40CA=Yes |
|||||||||
| 06 | Adhesive tape | 1000MM | 1 | 51138086328 | Shop at ECS Tuning | |||||
