Emblems / letterings for BMW 4 Series G22 Coupé LCI 420d (2025)

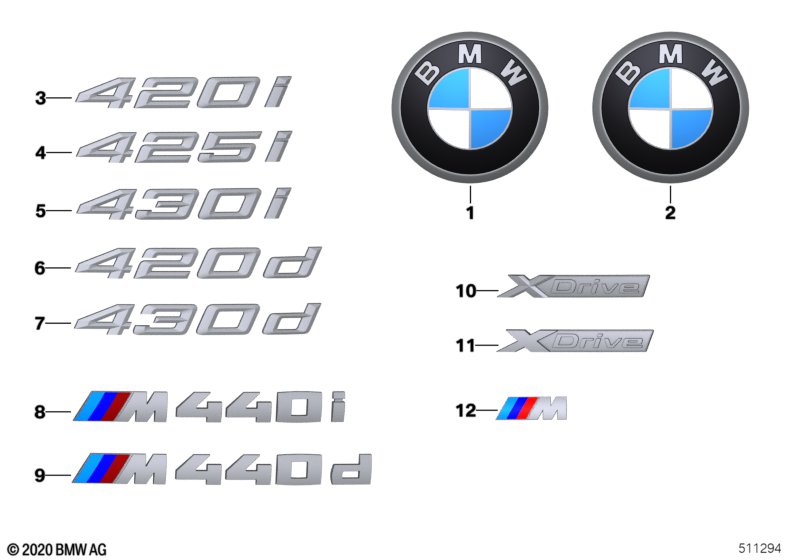

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to hood | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51149498988 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus only applies to trunk lid |
S5DMA=Yes S5DNA=Yes |
|||||||||
| 02 | Emblem | RFK | 1 | 51147497531 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus only applies to trunk lid |
S5DMA=Yes S5DNA=No |
|||||||||
| 02 | Emblem | RFK | 1 | 51147497531 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus only applies to trunk lid |
S5DMA=No S5DNA=Yes |
|||||||||
| 02 | Emblem | RFK | 1 | 51147497531 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus only applies to trunk lid |
S5DMA=No S5DNA=No |
|||||||||
| 02 | Emblem | 1 | 51147497530 | Shop at ECS Tuning | ||||||
| 06 | Label | 420D | 1 | 51149463145 | Shop at ECS Tuning | |||||
| For vehicles with Delete extra external lettering and M Aerodynamics package |
S3DZA=No S715A=Yes |
|||||||||
| 12 | Emblem side panel | M | 2 | 51148088378 | Shop at ECS Tuning | |||||
