Wheelarch trim for BMW 4 Series F36 Gran Coupé 418d (2015)

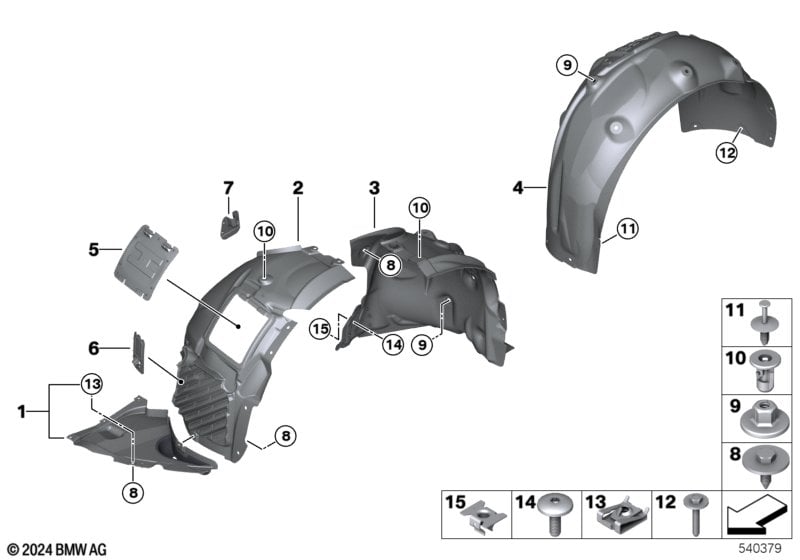

This Wheelarch trim technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé 418d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 01 | Cover, bottom left | 1 | 51717260741 | Shop at ECS Tuning | ||||||
| 01 | Cover, bottom right | 1 | 51717260742 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Cover, bottom left | M | 1 | 51718054551 | Shop at ECS Tuning | |||||
| 01 | Cover, bottom right | M | 1 | 51718054552 | Shop at ECS Tuning | |||||
| 02 | Cover, wheelhousing, fr. sec., front lft | 1 | 51717260729 | Shop at ECS Tuning | ||||||
| 02 | Cover, wheelhousing, fr. sec., front rgt | 1 | 51717260730 | Shop at ECS Tuning | ||||||
| 03 | Cover, wheelhousing, rear, front left | 1 | 51717260703 | Shop at ECS Tuning | ||||||
| 03 | Cover, wheelhousing, rear, front right | 1 | 51717260704 | Shop at ECS Tuning | ||||||
| 04 | Cover, wheel housing, rear left | 1 | 51717260747 | Shop at ECS Tuning | ||||||
| 04 | Cover, wheel housing, rear right | 1 | 51717260748 | Shop at ECS Tuning | ||||||
| 05 | Cover for bulb change | 1 | 51717260397 | Shop at ECS Tuning | ||||||
| 06 | Cover for cover panel, bottom | 2 | 51717259887 | Shop at ECS Tuning | ||||||
| 07 | Covering left | 1 | 51717251697 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | TS5X17 SW8 D=22 | 37 | 07149126886 | Shop at ECS Tuning | |||||
| 09 | Plastic capnut with washer | D=22MM | 26 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | L=18.4, DMAX=18 | 15 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | 8 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | 37 | 07149110671 | $0.55 | Shop at ECS Tuning | |||||
| 13 | C-clip nut | 7 | 51717065773 | Shop at ECS Tuning | ||||||
| 14 | Torx screw with washer | ISA M6X18 | 2 | 07146978618 | $2.56 | Shop at ECS Tuning | ||||
| 15 | Prestol-cage | M6 ZNS3 | 2 | 37146850307 | Shop at ECS Tuning | |||||
