Trim and seals for door, rear for BMW 5 Series G61 Touring 520d (2023)

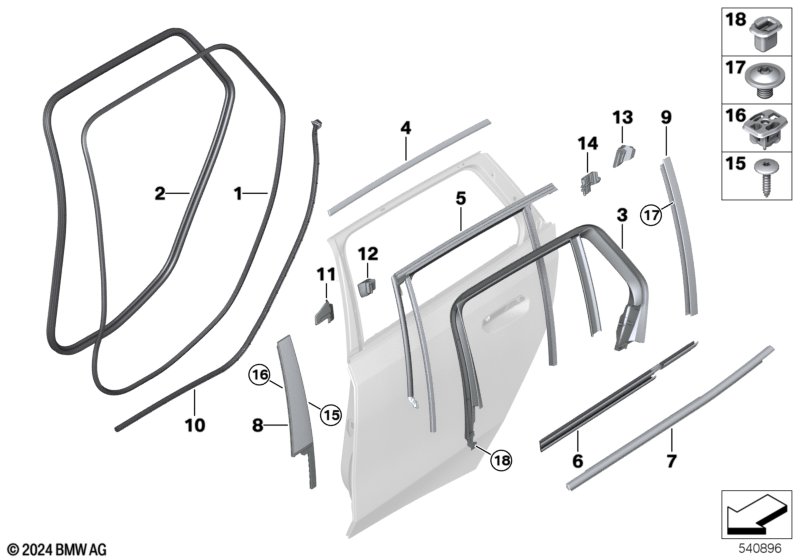

This Trim and seals for door, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip | 2 | 51765A92E21 | Shop at ECS Tuning | ||||||
| 01 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, rear | 1 | 01295A92E38 | Shop at ECS Tuning | ||||||
| 02 | Edge protection, door, rear | 2 | 51725A058A0 | Shop at ECS Tuning | ||||||
| For vehicles with Roller sun vizor, rear door |
S417A=No |
|||||||||
| 03 | Cover, window frame, rear left | 1 | 51355A167C3 | NoS | Shop at ECS Tuning | |||||
| 03 | Cover, window frame, rear right | 1 | 51355A167C4 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear door |
S417A=Yes |
|||||||||
| 03 | Cover, window frame, rear left | SSR | 1 | 51355A167D3 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover, window frame, rear right | SSR | 1 | 51355A167D4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=No |
|||||||||
| 04 | Window frame cover, rear left door | ALU SATINIERT | 1 | 51355A29E23 | Shop at ECS Tuning | |||||
| 04 | Cover, window frame, right rear door | ALU SATINIERT | 1 | 51355A29E24 | Shop at ECS Tuning | |||||
| 04 | Window frame cover, rear left door | ALU SATINIERT | 1 | 51355B59B23 | Shop at ECS Tuning | |||||
| 04 | Cover, window frame, right rear door | ALU SATINIERT | 1 | 51355B59B24 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=Yes |
|||||||||
| 04 | Window frame cover, rear left door | GLANZSCHWARZ | 1 | 51355A058F5 | Shop at ECS Tuning | |||||
| 04 | Cover, window frame, right rear door | GLANZSCHWARZ | 1 | 51355A058F6 | Shop at ECS Tuning | |||||
| 04 | Window frame cover, rear left door | GLANZSCHWARZ | 1 | 51355B59B33 | Shop at ECS Tuning | |||||
| 04 | Cover, window frame, right rear door | GLANZSCHWARZ | 1 | 51355B59B34 | Shop at ECS Tuning | |||||
| 05 | Window guide, left rear door | 1 | 51355A058A3 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right rear door | 1 | 51355A058A4 | Shop at ECS Tuning | ||||||
| 06 | Window cavity seal inner rear door left | 1 | 51355A058B1 | NoS | Shop at ECS Tuning | |||||
| 06 | Window cavity seal inner rear door right | 1 | 51355A058B2 | NoS | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=No |
|||||||||
| 07 | Shaft cover rear door left | ALU SATINIERT | 1 | 51355A29E25 | Shop at ECS Tuning | |||||
| 07 | Shaft cover rear door right | ALU SATINIERT | 1 | 51355A29E26 | Shop at ECS Tuning | |||||
| 07 | Shaft cover rear door left | ALU SATINIERT | 1 | 51355B59A47 | Shop at ECS Tuning | |||||
| 07 | Shaft cover rear door right | ALU SATINIERT | 1 | 51355B59A60 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=Yes |
|||||||||
| 07 | Shaft cover rear door left | GLANZSCHWARZ | 1 | 51355A058E3 | Shop at ECS Tuning | |||||
| 07 | Shaft cover rear door right | GLANZSCHWARZ | 1 | 51355A058E4 | Shop at ECS Tuning | |||||
| 07 | Shaft cover rear door left | GLANZSCHWARZ | 1 | 51355B59B31 | Shop at ECS Tuning | |||||
| 07 | Shaft cover rear door right | GLANZSCHWARZ | 1 | 51355B59B32 | Shop at ECS Tuning | |||||
| 08 | B-pillar trim panel rear door left | 1 | 51355A058C5 | Shop at ECS Tuning | ||||||
| 08 | B-pillar trim panel rear door right | 1 | 51355A058C6 | Shop at ECS Tuning | ||||||
| 09 | Window guide web cover left | 1 | 51355A05907 | Shop at ECS Tuning | ||||||
| 09 | Window guide web cover left | 1 | 51355B59B25 | Shop at ECS Tuning | ||||||
| 09 | Window guide web cover right | 1 | 51435A05908 | NoS | Shop at ECS Tuning | |||||
| 09 | Window guide web cover right | 1 | 51435B59B26 | Shop at ECS Tuning | ||||||
| 10 | Gap seal, door, door sill, left | 1 | 51725A19E43 | Shop at ECS Tuning | ||||||
| 10 | Gap seal, door, door sill, right | 1 | 51725A19E44 | Shop at ECS Tuning | ||||||
| 11 | Seal B-pillar trim panel bottom left | 1 | 51355A17BA5 | NoS | Shop at ECS Tuning | |||||
| 11 | Seal B-pillar trim panel bottom right | 1 | 51355A17BA6 | NoS | Shop at ECS Tuning | |||||
| 12 | Seal, B-pillar trim pan, parapet, le | 1 | 51355A17BA7 | NoS | Shop at ECS Tuning | |||||
| 12 | Seal, B-pillar trim pan, parapet, ri | 1 | 51355A17BA8 | NoS | Shop at ECS Tuning | |||||
| 13 | Seal, C-pillar, left | 1 | 51355A17BB3 | NoS | Shop at ECS Tuning | |||||
| 13 | Seal, C-pillar, right | 1 | 51355A17BB4 | NoS | Shop at ECS Tuning | |||||
| 14 | Sealing, window guide web, left | 1 | 51355A17BB1 | NoS | Shop at ECS Tuning | |||||
| 14 | Sealing, window guide web, right | 1 | 51355A17BB2 | NoS | Shop at ECS Tuning | |||||
| 15 | Fillister head screw | 8 | 07147453046 | Shop at ECS Tuning | ||||||
| 16 | Clip B-pillar trim panel | 8 | 07145A013C0 | Shop at ECS Tuning | ||||||
| 17 | Oval-head screw | 6 | 07149850688 | Shop at ECS Tuning | ||||||
| 18 | Plug-in attachment with sealing disk | 4 | 51416991309 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
