Assembly parts for BMW 3 Series E46 325i (2004)

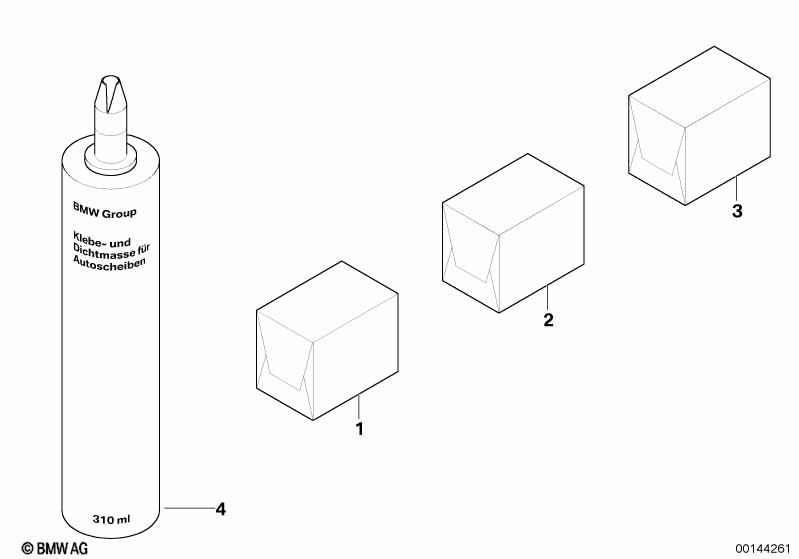

This Assembly parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of retaining elements | 1 | 72177031847 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Anti-grating kit | 1 | 51007031850 | ENDED, +core | Shop at ECS Tuning | |||||
| 04 | Window adhesive, cold, 1 hr. | 300ML | X | 83192289286 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
