Mounting parts, I-panel, top for BMW 2 Series F74 Gran Coupé 218 (2025)

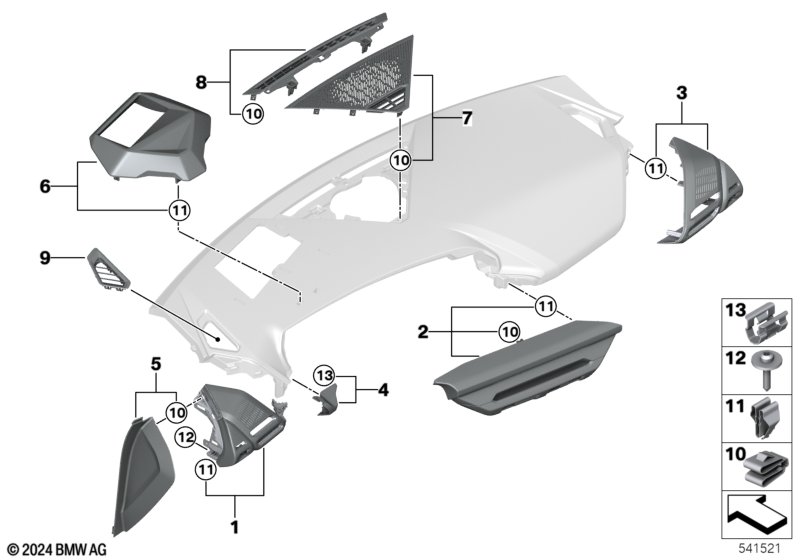

This Mounting parts, I-panel, top technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M int. decor Illu. Alu. Hexacube matte |
S43ZA=Yes |
|||||||||
| 01 | Cover instr. panel alu. driver's side | HEXACUBE MATT | 1 | 51459641889 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Int. decor 'Illuminated' Al graphite |
S43UA=Yes |
|||||||||
| 01 | Cover instr. panel alu. driver's side | GRAPHIT | 1 | 51459635200 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior decor Dark Silver |
S43TA=Yes |
|||||||||
| 01 | Trim for I-panel, driver side | DUNKELSILBER | 1 | 51459630292 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M int. decor Illu. Alu. Hexacube matte |
S43ZA=Yes |
|||||||||
| 02 | Trim instrument panel Al center | HEXACUBE MATT | 1 | 51459641891 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Int. decor 'Illuminated' Al graphite |
S43UA=Yes |
|||||||||
| 02 | Trim instrument panel Al center | GRAPHIT | 1 | 51459635204 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior decor Dark Silver |
S43TA=Yes |
|||||||||
| 02 | Cover dashboard, center | DUNKELSILBER | 1 | 51459630295 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M int. decor Illu. Alu. Hexacube matte |
S43ZA=Yes |
|||||||||
| 03 | Cover instr.panel alu. passenger's side | HEXACUBE MATT | 1 | 51459641893 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Int. decor 'Illuminated' Al graphite |
S43UA=Yes |
|||||||||
| 03 | Cover instr.panel alu. passenger's side | GRAPHIT | 1 | 51459635208 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior decor Dark Silver |
S43TA=Yes |
|||||||||
| 03 | Trim cover, I-panel, passenger side | DUNKELSILBER | 1 | 51459630293 | NoS | Shop at ECS Tuning | ||||
| 04 | Decor trim cover, driver's side | SCHWARZ | 1 | 51459635198 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover, dashboard, left | 1 | 51459630281 | NoS | Shop at ECS Tuning | |||||
| 05 | Cover, dashboard, right | 1 | 51459630282 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 06 | Trim piece for head-up display | 1 | 51459630232 | NoS | Shop at ECS Tuning | |||||
| 07 | Cover, center speaker | 1 | 51459630234 | NoS | Shop at ECS Tuning | |||||
| 08 | Trim cover, windshield defroster, center | 1 | 51459630205 | NoS | Shop at ECS Tuning | |||||
| 09 | Cover, side window defroster, left | 1 | 51459630209 | NoS | Shop at ECS Tuning | |||||
| 09 | Cover, side window defroster, right | 1 | 51459630210 | NoS | Shop at ECS Tuning | |||||
| 10 | Mounting clip | 24 | 07149418607 | Shop at ECS Tuning | ||||||
| 11 | Clamp | 8 | 07147321144 | Shop at ECS Tuning | ||||||
| 12 | Combi. fillister head self-tapping screw | 2 | 07149323312 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
