Sun visors for BMW 1 Series F70 120 (2025)

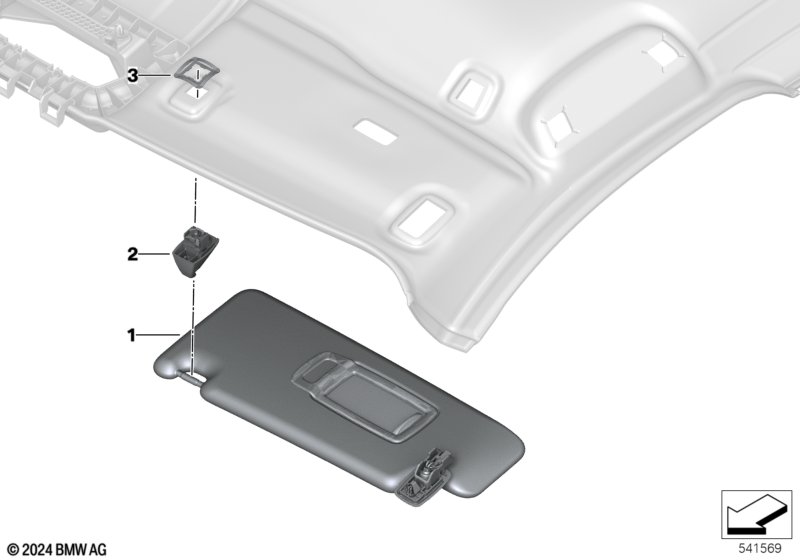

This Sun visors technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Sun visor with label, left | SCHWARZ | 1 | 51165A3D1F5 | Shop at ECS Tuning | |||||
| 01 | Sun visor without label, right | SCHWARZ | 1 | 51167336238 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and VEGANZA PERFORATED OYSTER |
S775A=No KUCX=Yes |
|||||||||
| 01 | Sun visor with label, left | SCHWARZ | 1 | 51165A3D1F5 | NoS | Shop at ECS Tuning | ||||
| 01 | Sun visor without label, right | SCHWARZ | 1 | 51167336238 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Cloth Arcturus/anthracite or Econeer Bicolor Blue or Alcan./Veganza-comb.Blk./Contr.st.Blue or Sensatec perforated/Coral red/black or VEGANZA PERFORATED MOCHA or VEGANZA PERFORATED BLACK |
S775A=No BLAT=Yes ECI2=Yes KTNL=Yes KUKP=Yes KUMY=Yes KUSW=Yes |
|||||||||
| 01 | Sun visor with label, left | EVERESTGRAU | 1 | 51165A3BCA5 | NoS | Shop at ECS Tuning | ||||
| 01 | Sun visor without label, right | EVERESTGRAU | 1 | 51167336258 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and VEGANZA PERFORATED OYSTER |
S775A=Yes KUCX=Yes |
|||||||||
| 02 | Counterbearing for sun visor | SCHWARZ | 2 | 51165A5DCB6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Cloth Arcturus/anthracite or Econeer Bicolor Blue or Alcan./Veganza-comb.Blk./Contr.st.Blue or Sensatec perforated/Coral red/black or VEGANZA PERFORATED MOCHA or VEGANZA PERFORATED BLACK |
S775A=No BLAT=Yes ECI2=Yes KTNL=Yes KUKP=Yes KUMY=Yes KUSW=Yes |
|||||||||
| 02 | Counterbearing for sun visor | EVERESTGRAU | 2 | 51165A84C61 | NoS | Shop at ECS Tuning | ||||
| 03 | Circlip | 2 | 51165A84C58 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F70 120 Sun visors?
- This technical diagram illustrates the Sun visors within the Vehicle trim group for the 1 Series F70 120 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Sun visor with label, left (Part #51165A3D1F5).
- Which models use the hardware listed in this Sun visors?
- The hardware and components featured in the Sun visors are specific to the 1 Series F70 120 produced during 2025. These technical specifications ensure that parts like the Sun visor with label, left (51165A3D1F5) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sun visors assembly?
- Each item in the Sun visors corresponds to the numbered list below the illustration. For the 1 Series F70 120, you can identify the Sun visor with label, left by locating its position on the schematic, which then links to the official BMW part number 51165A3D1F5 for the Vehicle trim section.
