M Trim, front for BMW 1 Series F70 120

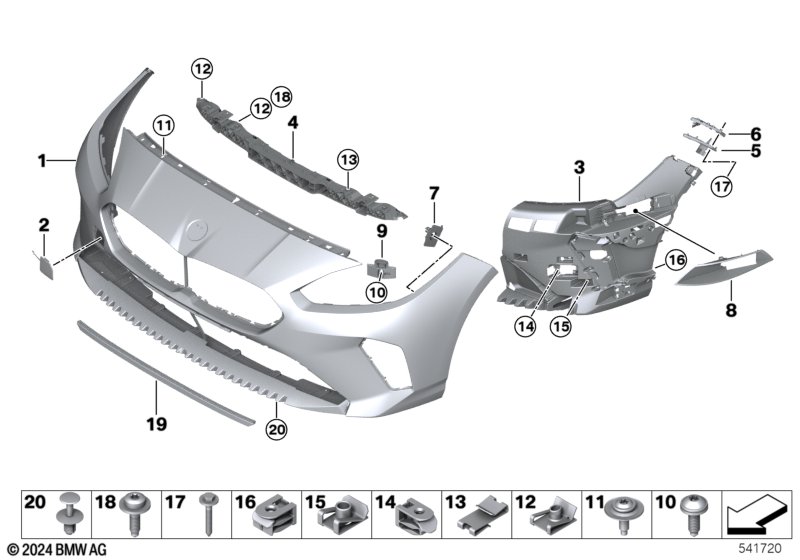

This M Trim, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | MSP/MPA | 1 | 51115B337B1 | Shop at ECS Tuning | |||||
| 02 | Cover for towing eye primed | MSP/MPA | 1 | 51115B337C1 | Shop at ECS Tuning | |||||
| 03 | Insert, bumper, left | MSP/MPA GESCHL. | 1 | 51115A35D45 | Shop at ECS Tuning | |||||
| 03 | Einlage Stoßfänger rechts | MSP/MPA GESCHL. | 1 | 51115A35D46 | Shop at ECS Tuning | |||||
| 04 | Support | 1 | 51745A3BD66 | Shop at ECS Tuning | ||||||
| 05 | Bumper guide lower left | 1 | 51115A3BD55 | Shop at ECS Tuning | ||||||
| 05 | Bumper guide lower right | 1 | 51115A3BD56 | Shop at ECS Tuning | ||||||
| 06 | Bumper guide upper left | 1 | 51115A3BD57 | Shop at ECS Tuning | ||||||
| 06 | Bumper guide, upper right | 1 | 51115A3BD58 | Shop at ECS Tuning | ||||||
| 07 | Kit mount PDC/PMA sensor | 1 | 51115B337B6 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional and M SPORT EXTERIEURUMFAENGE |
S5AUA=Yes S9T1A=Yes |
|||||||||
| 08 | Absorber funnel, left | MSP/MPA | 1 | 51117885545 | NoS | Shop at ECS Tuning | ||||
| 08 | Absorber funnel, right | MSP/MPA | 1 | 51117885546 | NoS | Shop at ECS Tuning | ||||
| 09 | Support, front bumper | 2 | 51115A3BD54 | Shop at ECS Tuning | ||||||
| 10 | Combi oval-head machine screw | M6X20 | 2 | 51162993604 | Shop at ECS Tuning | |||||
| 11 | Oval-head screw with spring washer | M6X20 | 6 | 07145A48F73 | Shop at ECS Tuning | |||||
| 12 | C-clip nut, self-locking | M6-ZNS3 | 4 | 07147286036 | Shop at ECS Tuning | |||||
| 13 | S-clamp | 4 | 07147305866 | Shop at ECS Tuning | ||||||
| 14 | C-clip nut | 1 | 07149230671 | Shop at ECS Tuning | ||||||
| 16 | C-clip for plastic nut | TS5 | 6 | 07147311312 | Shop at ECS Tuning | |||||
| 17 | Screw | TS5X35 SW8 D=15 | 6 | 07129907535 | Shop at ECS Tuning | |||||
| 18 | Countersunk screw | M6X20-PCU2-10.9 | 4 | 07119908698 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 20 | Expanding rivet | D = 8MM | 6 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
