Trim, decor elements, front for BMW 1 Series F70 120

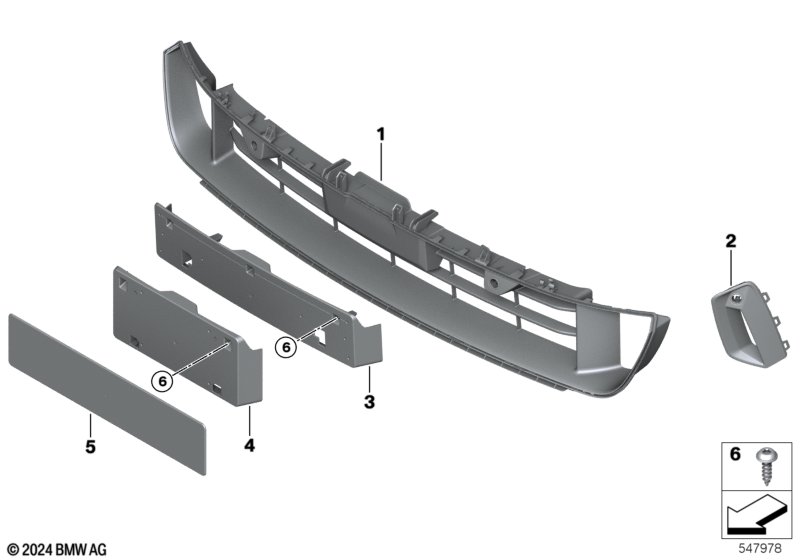

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=No |
||||||||
| 01 | Gitter Stoßfänger Mitte | BASIS - ICONIC | 1 | 51115A64E34 | Shop at ECS Tuning | |||||
| 02 | Air Curtain left | BASIS | 1 | 51115A35D11 | Shop at ECS Tuning | |||||
| 02 | Air Curtain right | BASIS | 1 | 51115A35D12 | Shop at ECS Tuning | |||||
| For vehicles with Deleted, licence plate support front and Control of number-plate attachment and M SPORT EXTERIEURUMFAENGE |
S962A=No S992A=No S9T1A=No |
|||||||||
| 03 | License-plate carrier front | BASIS - ECE | 1 | 51135A35D39 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Deleted, licence plate support front and Control of number-plate attachment |
L807A=Yes S962A=No S992A=Yes |
|||||||||
| 04 | License-plate carrier front | BASIS - US/JAP | 1 | 51135A35D47 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Deleted, licence plate support front and Control of number-plate attachment |
L807A=Yes S962A=No S992A=No |
|||||||||
| 04 | License-plate carrier front | BASIS - US/JAP | 1 | 51135A35D47 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Deleted, licence plate support front and Control of number-plate attachment |
L807A=No S962A=No S992A=Yes |
|||||||||
| 04 | License-plate carrier front | BASIS - US/JAP | 1 | 51135A35D47 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
