M trim decor elements, front for BMW 1 Series F70 120

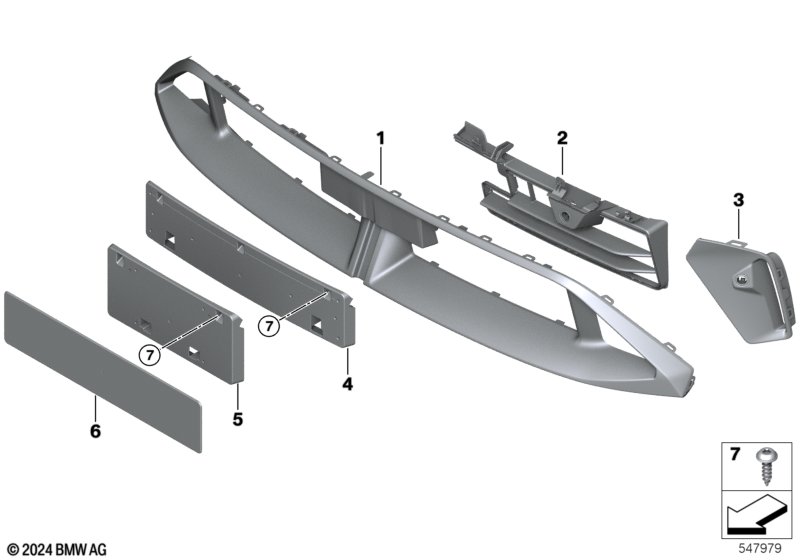

This M trim decor elements, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Trim air inlet lower | MSP/MPA | 1 | 51117885542 | Shop at ECS Tuning | |||||
| 02 | Air inlet finisher, left | MSP/MPA ICONIC | 1 | 51115A64E37 | Shop at ECS Tuning | |||||
| 02 | Air inlet finisher, right | MSP/MPA ICONIC | 1 | 51115A64E38 | Shop at ECS Tuning | |||||
| 03 | Air Curtain left | MSP/MPA | 1 | 51115A35D31 | Shop at ECS Tuning | |||||
| 03 | Air Curtain right | MSP/MPA | 1 | 51115A35D32 | Shop at ECS Tuning | |||||
| 04 | License-plate carrier front | MSP/MPA - ECE | 1 | 51135A35D51 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Deleted, licence plate support front and Control of number-plate attachment and M SPORT EXTERIEURUMFAENGE |
L807A=Yes S962A=No S992A=Yes S9T1A=Yes |
|||||||||
| 05 | License-plate carrier front | MSP/MPA US/JAP | 1 | 51135A35D52 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Deleted, licence plate support front and Control of number-plate attachment and M SPORT EXTERIEURUMFAENGE |
L807A=Yes S962A=No S992A=No S9T1A=Yes |
|||||||||
| 05 | License-plate carrier front | MSP/MPA US/JAP | 1 | 51135A35D52 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Deleted, licence plate support front and Control of number-plate attachment and M SPORT EXTERIEURUMFAENGE |
L807A=No S962A=No S992A=Yes S9T1A=Yes |
|||||||||
| 05 | License-plate carrier front | MSP/MPA US/JAP | 1 | 51135A35D52 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
