Carrier, front for BMW 1 Series F70 120

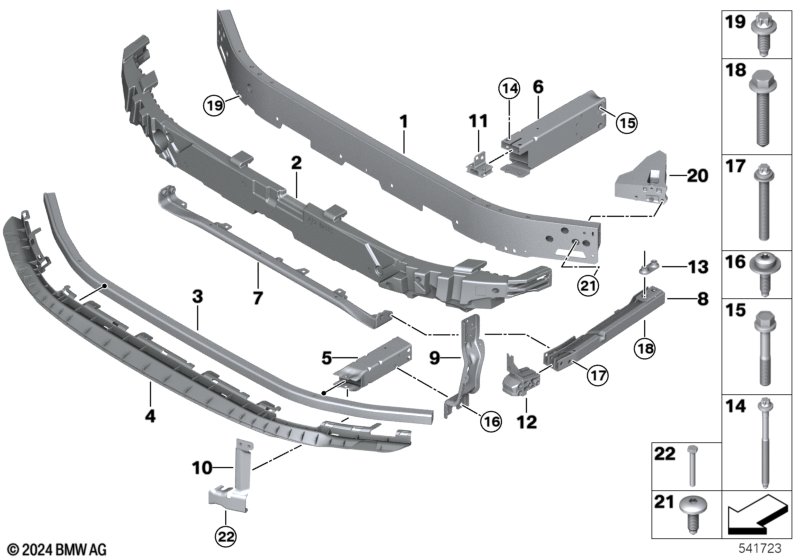

This Carrier, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mount, bumper, front, top | 1 | 51115A34C03 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 02 | Impact absorber, top | MSP/MPA | 1 | 51117885539 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=No |
|||||||||
| 02 | Stoßabsorber oben | BASIS | 1 | 51115A34C00 | Shop at ECS Tuning | |||||
| For vehicles with Preparations, official vehicle and CO2 package and Extra package, EU-specific |
S138A=No S1CBA=Yes S230A=No |
|||||||||
| 03 | Bumper bracket front lower | 1 | 51119879156 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Extra package, EU-specific |
S138A=No S1CBA=No S230A=Yes |
|||||||||
| 03 | Bumper bracket front lower | 1 | 51119879156 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Extra package, EU-specific |
S138A=No S1CBA=No S230A=No |
|||||||||
| 03 | Bumper bracket front lower | 1 | 51119879156 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Extra package, EU-specific |
S138A=No S1CBA=Yes S230A=Yes |
|||||||||
| 03 | Bumper bracket front lower | 1 | 51115A64A30 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Extra package, EU-specific |
S138A=No S1CBA=Yes S230A=No |
|||||||||
| 03 | Bumper bracket front lower | 1 | 51115A64A30 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Extra package, EU-specific |
S138A=No S1CBA=No S230A=Yes |
|||||||||
| 03 | Bumper bracket front lower | 1 | 51115A64A30 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection and M SPORT EXTERIEURUMFAENGE |
S8TFA=Yes S9T1A=No |
|||||||||
| 04 | Impact absorber, bottom | BASIS | 1 | 51115A3BD59 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection and M SPORT EXTERIEURUMFAENGE |
S8TFA=Yes S9T1A=Yes |
|||||||||
| 04 | Impact absorber, bottom | MSP/MPA | 1 | 51115A52CA3 | Shop at ECS Tuning | |||||
| 05 | Crash box, left | 1 | 51118737253 | Shop at ECS Tuning | ||||||
| 05 | Crash box, right | 1 | 51118737254 | Shop at ECS Tuning | ||||||
| 06 | Crashbox left | 1 | 51119883567 | Shop at ECS Tuning | ||||||
| 06 | Crashbox right | 1 | 51119883568 | Shop at ECS Tuning | ||||||
| 07 | Connection lower center | 1 | 51118737263 | Shop at ECS Tuning | ||||||
| 08 | Crash box, left | 1 | 51118737235 | Shop at ECS Tuning | ||||||
| 08 | Crash box, right | 1 | 51118737236 | Shop at ECS Tuning | ||||||
| 09 | Vertical connection, left | 1 | 51118737259 | Shop at ECS Tuning | ||||||
| 09 | Vertical connection, right | 1 | 51118737260 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=Yes L807A=Yes S230A=Yes |
|||||||||
| 10 | Vertical connection left | 1 | 51115A34C05 | Shop at ECS Tuning | ||||||
| 10 | Vertical connection, right | 1 | 51115A34C06 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=Yes L807A=Yes S230A=No |
|||||||||
| 10 | Vertical connection left | 1 | 51115A34C05 | Shop at ECS Tuning | ||||||
| 10 | Vertical connection, right | 1 | 51115A34C06 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=Yes L807A=No S230A=Yes |
|||||||||
| 10 | Vertical connection left | 1 | 51115A34C05 | Shop at ECS Tuning | ||||||
| 10 | Vertical connection, right | 1 | 51115A34C06 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=Yes L807A=No S230A=No |
|||||||||
| 10 | Vertical connection left | 1 | 51115A34C05 | Shop at ECS Tuning | ||||||
| 10 | Vertical connection, right | 1 | 51115A34C06 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=No L807A=Yes S230A=Yes |
|||||||||
| 10 | Vertical connection left | 1 | 51115A34C05 | Shop at ECS Tuning | ||||||
| 10 | Vertical connection, right | 1 | 51115A34C06 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=No L807A=Yes S230A=No |
|||||||||
| 10 | Vertical connection left | 1 | 51115A34C05 | Shop at ECS Tuning | ||||||
| 10 | Vertical connection, right | 1 | 51115A34C06 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=No L807A=No S230A=Yes |
|||||||||
| 10 | Vertical connection left | 1 | 51115A34C05 | Shop at ECS Tuning | ||||||
| 10 | Vertical connection, right | 1 | 51115A34C06 | Shop at ECS Tuning | ||||||
| 11 | Adapter for support member, front left | 1 | 51119477411 | Shop at ECS Tuning | ||||||
| 11 | Adapter for support member, front right | 1 | 51119477412 | Shop at ECS Tuning | ||||||
| 12 | Adapter, lower left | 1 | 51118737337 | Shop at ECS Tuning | ||||||
| 12 | Adapter, lower right | 1 | 51118737338 | Shop at ECS Tuning | ||||||
| 13 | Wingnut counterplate | 2 | 51115A5C9C4 | Shop at ECS Tuning | ||||||
| 14 | Hexagon bolt | M8X110 | 4 | 07119909891 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M12X1,5X80 | 4 | 07147411870 | Shop at ECS Tuning | |||||
| 16 | Countersunk screw | M6X20-PCU2-10.9 | 12 | 07119908698 | Shop at ECS Tuning | |||||
| 17 | Star-socket screw | BM10X75-U1-10.9 | 8 | 07119908557 | Shop at ECS Tuning | |||||
| 18 | Hexagon screw with flange | M12X1,5X70-10.9 | 4 | 07129908636 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=Yes L807A=Yes S230A=Yes |
|||||||||
| 19 | Torx screw | M8X20-10.9-ZNS3 | 4 | 07119907125 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=Yes L807A=Yes S230A=No |
|||||||||
| 19 | Torx screw | M8X20-10.9-ZNS3 | 4 | 07119907125 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=Yes L807A=No S230A=Yes |
|||||||||
| 19 | Torx screw | M8X20-10.9-ZNS3 | 4 | 07119907125 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=Yes L807A=No S230A=No |
|||||||||
| 19 | Torx screw | M8X20-10.9-ZNS3 | 4 | 07119907125 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=No L807A=Yes S230A=Yes |
|||||||||
| 19 | Torx screw | M8X20-10.9-ZNS3 | 4 | 07119907125 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=No L807A=Yes S230A=No |
|||||||||
| 19 | Torx screw | M8X20-10.9-ZNS3 | 4 | 07119907125 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific |
L802A=No L807A=No S230A=Yes |
|||||||||
| 19 | Torx screw | M8X20-10.9-ZNS3 | 4 | 07119907125 | Shop at ECS Tuning | |||||
| 22 | Hex bolt with washer | M6X45-U1 | 2 | 07119905547 | $1.17 | Shop at ECS Tuning | ||||
