Cover door sill / wheel arch for BMW 1 Series F70 120d (2025)

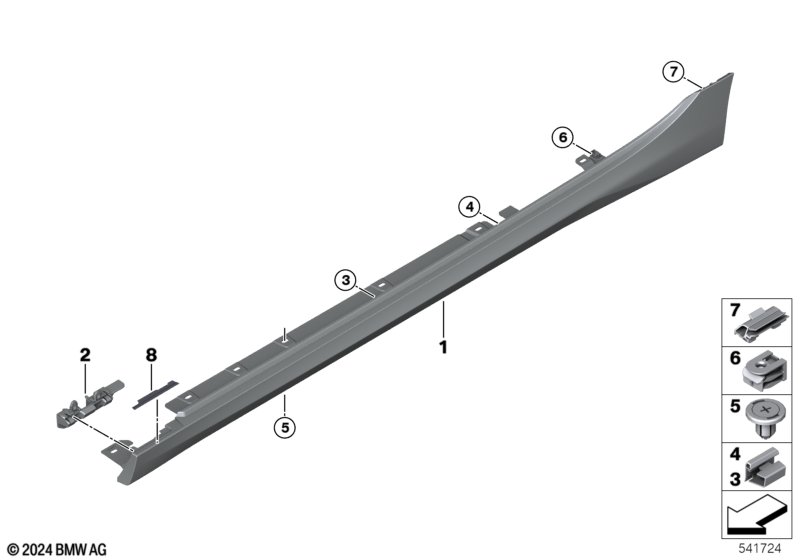

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=No |
||||||||
| 01 | Side skirt trim left | GRUNDIERT | 1 | 51775A8E8A7 | Shop at ECS Tuning | |||||
| 01 | Side skirt trim right | GRUNDIERT | 1 | 51775A8E8A8 | Shop at ECS Tuning | |||||
| 02 | Mount for rocker panel, front left | 1 | 51777461383 | Shop at ECS Tuning | ||||||
| 02 | Mount for rocker panel, front right | 1 | 51777461384 | Shop at ECS Tuning | ||||||
| 03 | Clip, dry area | 12 | 51777461380 | Shop at ECS Tuning | ||||||
| 04 | Clip, wet area | 4 | 51127490761 | Shop at ECS Tuning | ||||||
| 05 | Expanding rivet | 14 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 06 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 07 | Clip retainer | 2 | 51777461385 | Shop at ECS Tuning | ||||||
| 08 | Protect.film side sill trim panel left | 1 | 51775A020A1 | Shop at ECS Tuning | ||||||
| 08 | Protect.film side sill trim panel right | 1 | 51775A020A2 | Shop at ECS Tuning | ||||||
