Trim cover, rear for BMW 1 Series F70 120

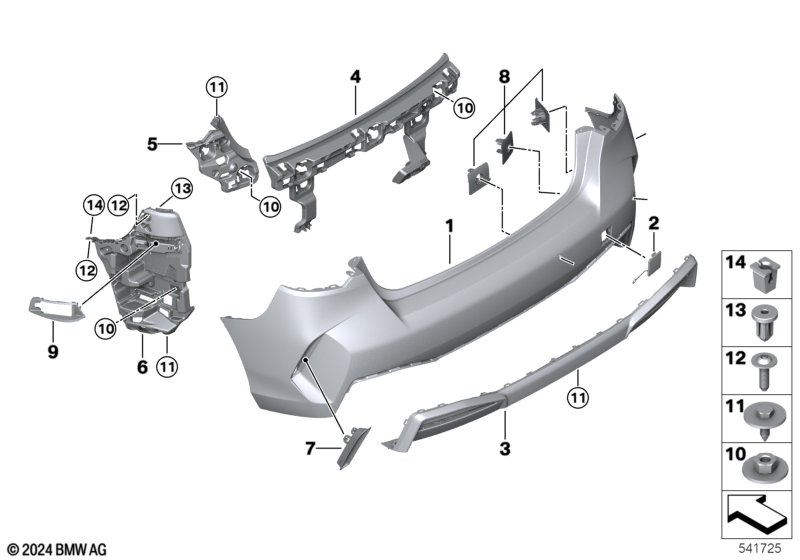

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=No |
||||||||
| 01 | Bump trim, rear upper, primed | BASIS | 1 | 51125A898B7 | Shop at ECS Tuning | |||||
| 02 | Cover for towing eye primed | BASIS | 1 | 51125B50F18 | Shop at ECS Tuning | |||||
| 03 | Bumper cover rear lower | BASIS SHGL | 1 | 51125A35D59 | Shop at ECS Tuning | |||||
| 04 | Bumper guide, rear, center | BASIS | 1 | 51125A35D88 | Shop at ECS Tuning | |||||
| 05 | Bumper guide rear upper left | 1 | 51125A35D77 | Shop at ECS Tuning | ||||||
| 05 | Bumper guide rear upper right | 1 | 51125A35D78 | Shop at ECS Tuning | ||||||
| 06 | Führung Stoßfänger hinten links | 1 | 51125A35D83 | Shop at ECS Tuning | ||||||
| 06 | Führung Stoßfänger hinten rechts | 1 | 51125A35D84 | Shop at ECS Tuning | ||||||
| 07 | Bumper trim rear left | BASIS | 1 | 51125A35D75 | Shop at ECS Tuning | |||||
| 07 | Bumper trim right rear | BASIS | 1 | 51125A35D76 | Shop at ECS Tuning | |||||
| 08 | Kit mount PDC sensor | BASIS | 1 | 51125B50F16 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=Yes |
|||||||||
| 09 | Absorber funnel, left | BASIS | 1 | 51125A36363 | Shop at ECS Tuning | |||||
| 09 | Absorber funnel, right | BASIS | 1 | 51125A36364 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=No |
|||||||||
| 09 | Absorber funnel, left | BASIS | 1 | 51125A36363 | Shop at ECS Tuning | |||||
| 09 | Absorber funnel, right | BASIS | 1 | 51125A36364 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=No S5AUA=Yes |
|||||||||
| 09 | Absorber funnel, left | BASIS | 1 | 51125A36363 | Shop at ECS Tuning | |||||
| 09 | Absorber funnel, right | BASIS | 1 | 51125A36364 | Shop at ECS Tuning | |||||
| 10 | Combination nut | 15 | 07147305178 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt | TS5X17 SW8 D=22 | 12 | 07149126886 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | ST5X17-ZNS3 | 8 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Plug-in nut | 6 | 51127461407 | Shop at ECS Tuning | ||||||
| 14 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
