M cover for rocker panel / wheel arch for BMW 1 Series F70 120 (2025)

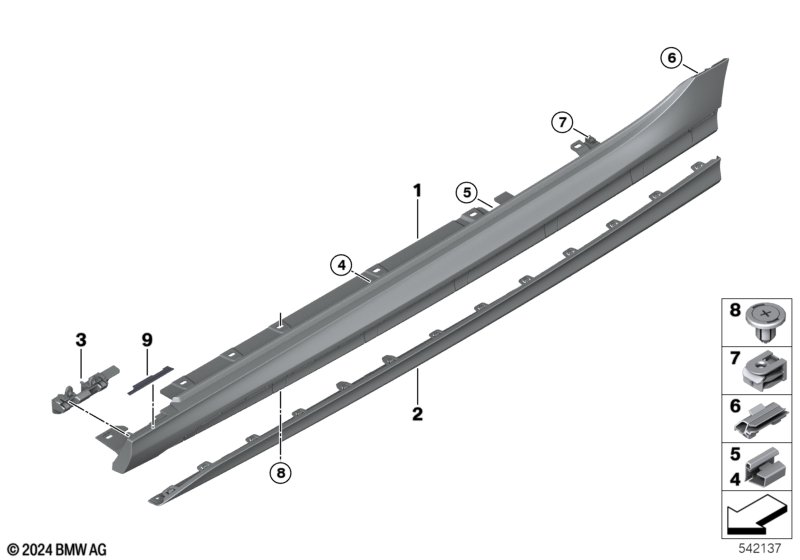

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Sill trim panel, primed left | MSP | 1 | 51778080945 | Shop at ECS Tuning | |||||
| 01 | Sill trim panel, primed right | MSP | 1 | 51778080946 | Shop at ECS Tuning | |||||
| 02 | Trim door sill left | MPA | 1 | 51778075467 | Shop at ECS Tuning | |||||
| 02 | Trim door sill right | MPA | 1 | 51778075468 | Shop at ECS Tuning | |||||
| 03 | Mount for rocker panel, front left | 1 | 51777461383 | Shop at ECS Tuning | ||||||
| 03 | Mount for rocker panel, front right | 1 | 51777461384 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 04 | Clip, dry area | 12 | 51777461380 | Shop at ECS Tuning | ||||||
| 05 | Clip, wet area | 4 | 51127490761 | Shop at ECS Tuning | ||||||
| 06 | Clip retainer | 2 | 51777461385 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 07 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 14 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 09 | Protect.film side sill trim panel left | 1 | 51775A020A1 | Shop at ECS Tuning | ||||||
| 09 | Protect.film side sill trim panel right | 1 | 51775A020A2 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F70 120 M cover for rocker panel / wheel arch?
- This technical diagram illustrates the M cover for rocker panel / wheel arch within the Vehicle trim group for the 1 Series F70 120 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Sill trim panel, primed left (Part #51778080945).
- Which models use the hardware listed in this M cover for rocker panel / wheel arch?
- The hardware and components featured in the M cover for rocker panel / wheel arch are specific to the 1 Series F70 120 produced during 2025. These technical specifications ensure that parts like the Sill trim panel, primed left (51778080945) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M cover for rocker panel / wheel arch assembly?
- Each item in the M cover for rocker panel / wheel arch corresponds to the numbered list below the illustration. For the 1 Series F70 120, you can identify the Sill trim panel, primed left by locating its position on the schematic, which then links to the official BMW part number 51778080945 for the Vehicle trim section.
