Trunk lid trim panel for BMW 5 Series G61 Touring 520d (2025)

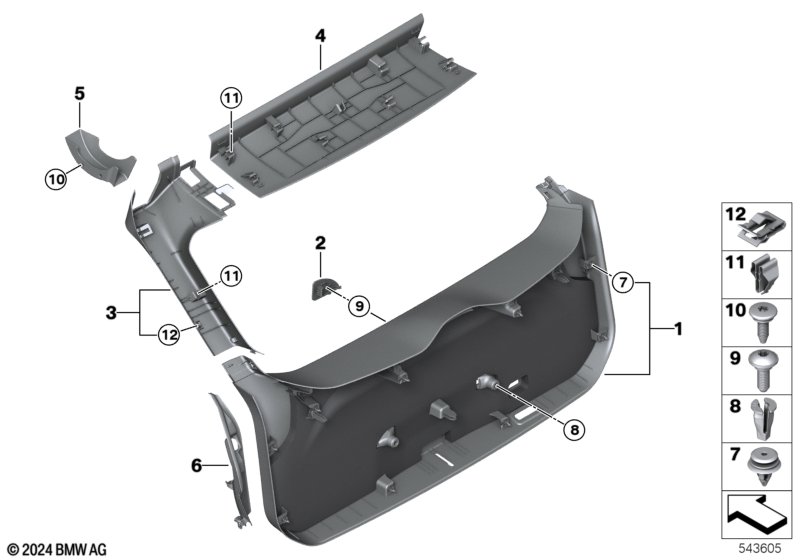

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=No |
|||||||||
| 01 | Lower tail lid trim panel | 1 | 51495B34319 | Shop at ECS Tuning | ||||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
|||||||||
| 01 | Lower tail lid trim panel | 1 | 51495B34320 | Shop at ECS Tuning | ||||||
| 02 | Cover left | 1 | 51495B36BE1 | NoS | Shop at ECS Tuning | |||||
| 02 | Cover right | 1 | 51495B36BE2 | NoS | Shop at ECS Tuning | |||||
| 03 | Tailgate trim panel, upper left | 1 | 51495A1CEF3 | Shop at ECS Tuning | ||||||
| 03 | Tailgate trim panel, upper right | 1 | 51495A1CEF4 | Shop at ECS Tuning | ||||||
| 04 | Upper trunk lid trim panel | 1 | 51495A1CEF0 | Shop at ECS Tuning | ||||||
| 05 | Trim panel, hinge, left | 1 | 51495A1CEF5 | Shop at ECS Tuning | ||||||
| 05 | Trim panel, hinge, right | 1 | 51495A1CEF6 | Shop at ECS Tuning | ||||||
| 06 | Trim, drip rail, left | 1 | 51495A1CEF7 | Shop at ECS Tuning | ||||||
| 06 | Trim, drip rail, right | 1 | 51495A1CEF8 | Shop at ECS Tuning | ||||||
| 07 | Clip, yellow | 10 | 51417007479 | $0.61 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | 2 | 07149312977 | Shop at ECS Tuning | ||||||
| 09 | Fillister head screw with collar | 2 | 07147494341 | Shop at ECS Tuning | ||||||
| 10 | Countersunk screw | 4 | 07148831000 | Shop at ECS Tuning | ||||||
| 11 | Clamp | 13 | 07147321144 | Shop at ECS Tuning | ||||||
| 12 | Clamp | 2 | 07146995183 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
