Trim panel, trunk floor for BMW 5 Series G99 M5 Touring M5 (2025)

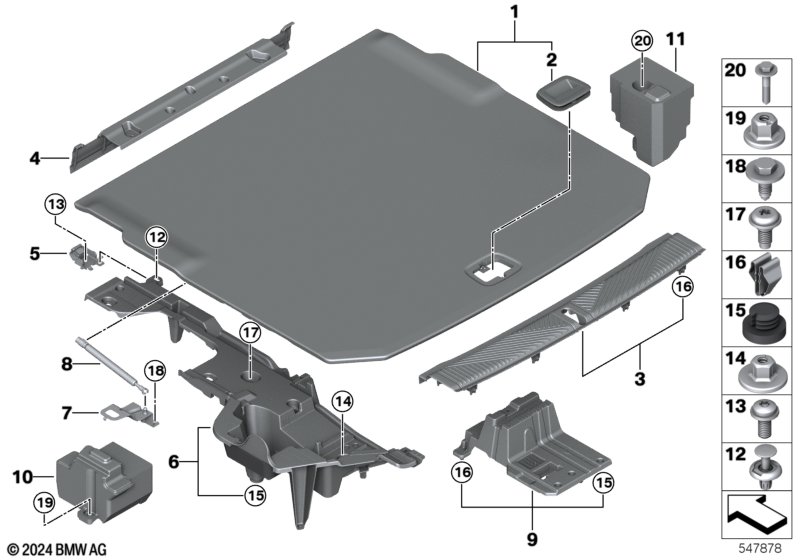

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel, trunk floor | ANTHRAZIT | 1 | 51477886899 | NoS | Shop at ECS Tuning | ||||
| Handle cargo floor panel incl. loop, bolt and warning triangle |
||||||||||
| 02 | Handle, floor carpet-luggage comp | 1 | 07/2024 | 51475B50E95 | NoS | Shop at ECS Tuning | ||||
| 03 | Loading sill cover | 1 | 51475A20843 | NoS | Shop at ECS Tuning | |||||
| 04 | Covering cross member | 1 | 51475A6F8B5 | NoS | Shop at ECS Tuning | |||||
| 05 | Mount, floor panel, front | 2 | 51475A25B37 | NoS | Shop at ECS Tuning | |||||
| 06 | Pad, side member, left | BEV | 1 | 51475A22D21 | NoS | Shop at ECS Tuning | ||||
| 06 | Pad, side member, right | BEV | 1 | 51475A22D22 | NoS | Shop at ECS Tuning | ||||
| 09 | Support for removable panel | 1 | 51475A20827 | NoS | Shop at ECS Tuning | |||||
| 10 | Insert, battery, left | 1 | 61215A15F39 | NoS | Shop at ECS Tuning | |||||
| 11 | Insert, battery, right | 1 | 61215A15F40 | NoS | Shop at ECS Tuning | |||||
| 12 | Expanding rivet | 6 | 07147401727 | Shop at ECS Tuning | ||||||
| 13 | Screw | M8X18MM | 2 | 07147260059 | Shop at ECS Tuning | |||||
| 14 | Plastic capnut with washer | D=22MM | 5 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Rubber buffer | 21 | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| 16 | Clamp | 10 | 07147321144 | Shop at ECS Tuning | ||||||
| 17 | Fillister head screw with collar | 6 | 07147436428 | Shop at ECS Tuning | ||||||
| 19 | Plastic nut for coarse threaded pin | M6 | 1 | 07147336362 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M8X45-TC-U2-8.8 | 1 | 07119909767 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
