Storage surface, trunk floor for BMW 5 Series G61 Touring 530e (2025)

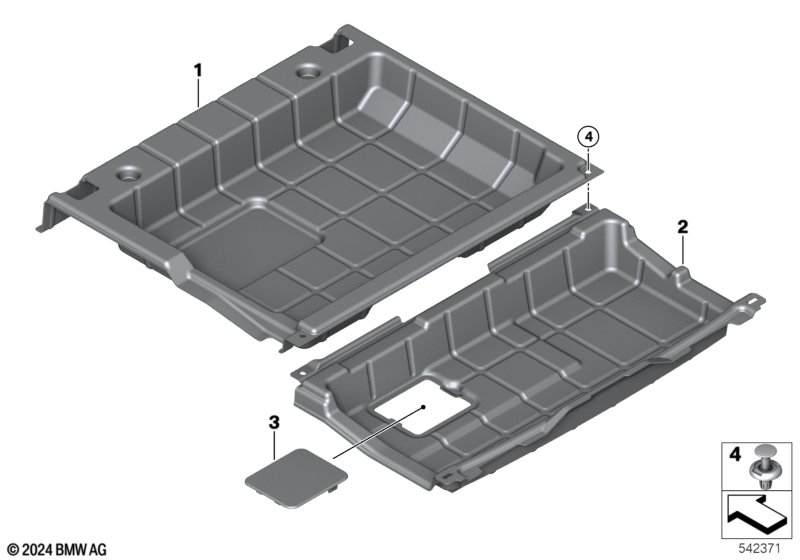

This Storage surface, trunk floor technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Additional energy supply and Bowers & Wilkins Surround Sound System |
S146A=No S6F4A=No |
|||||||||
| 01 | Storage tray, cargo area, front | 1 | 51475A20849 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Bowers & Wilkins Surround Sound System With loop for attaching a warning triangle. Positioning of the warning triangle in the storage tray from July 2024 onwards. |
S146A=No S6F4A=No |
|||||||||
| 02 | Storage tray, cargo area | 1 | 51475B42797 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Bowers & Wilkins Surround Sound System |
S146A=No S6F4A=No |
|||||||||
| 03 | Service lid, left | 1 | 51477889989 | NoS | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | 4 | 07147401727 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
