Mounting parts, engine compartment for BMW 1 Series F70 118d (2024)

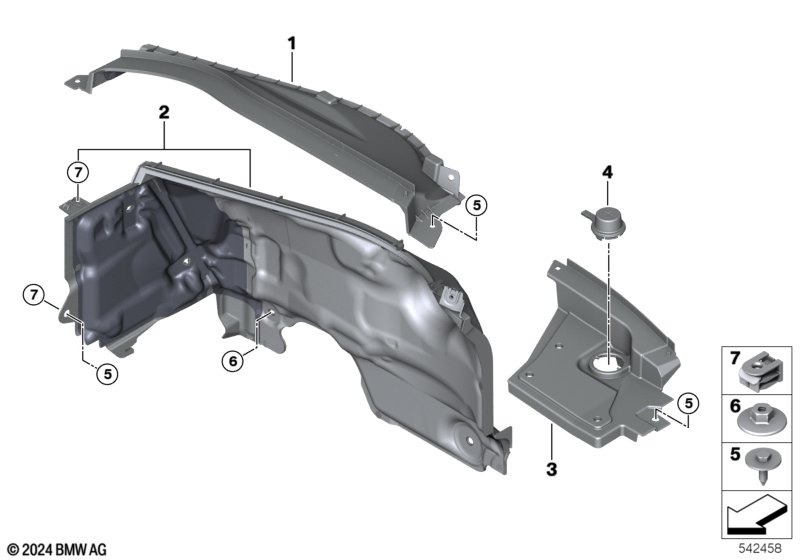

This Mounting parts, engine compartment technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Firewall, upper section | DIESEL | 1 | 51719639603 | NoS | Shop at ECS Tuning | ||||
| 02 | Bulkhead lower section | RHD | 1 | 51719635269 | NoS | Shop at ECS Tuning | ||||
| 03 | Battery cover | 1 | 51719629841 | Shop at ECS Tuning | ||||||
| 04 | Cover cap, positive terminal | 1 | 51718498443 | NoS | Shop at ECS Tuning | |||||
| 05 | Hex bolt | TS5X20 SW8 D=22 | 7 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Plastic nut | 2 | 07149381677 | Shop at ECS Tuning | ||||||
| 07 | C-clip for plastic nut | TS5 | 3 | 07147311312 | Shop at ECS Tuning |
