Storage tray, center console for BMW 1 Series F70 118d (2024)

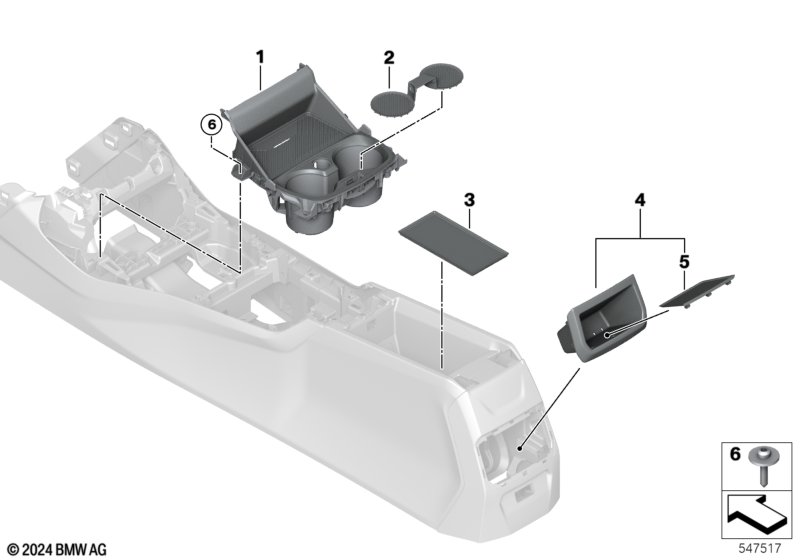

This Storage tray, center console technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort access and Storage tray for wireless charging |
S322A=No S6NXA=No |
|||||||||
| 01 | Cup holder, center console | 1 | 51165A86B07 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and Storage tray for wireless charging |
S322A=Yes S6NXA=Yes |
|||||||||
| 01 | Cup holder, center console | 1 | 51165A86B08 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and Storage tray for wireless charging |
S322A=Yes S6NXA=No |
|||||||||
| 01 | Cup holder, center console | 1 | 51165A86B08 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and Storage tray for wireless charging |
S322A=No S6NXA=Yes |
|||||||||
| 01 | Cup holder, center console | 1 | 51165A86B08 | Shop at ECS Tuning | ||||||
| 02 | Rubber insert, cup holder | 1 | 51165A7D568 | NoS | Shop at ECS Tuning | |||||
| 03 | Insert mat, center console storage comp. | 1 | 51166823571 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=No |
|||||||||
| 04 | Storage compartment, rear | 1 | 51166828271 | NoS | Shop at ECS Tuning | |||||
| 05 | Rubber insert, oddments tray rear | 1 | 51167951773 | NoS | Shop at ECS Tuning | |||||
| 06 | Combi. fillister head self-tapping screw | 4 | 07149323312 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
