Outside mirror for BMW MINI Cabrio F67 JCW (2025)

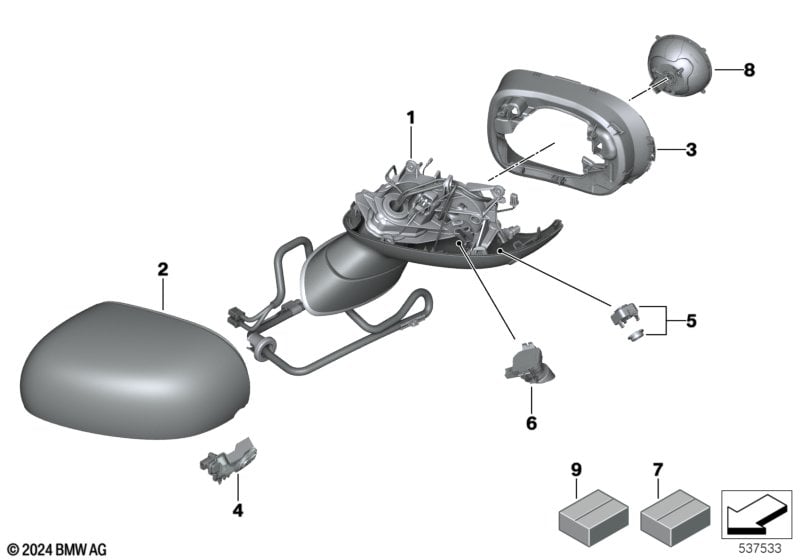

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 01 | Aussenspiegel beheizt Memory rechts | HC2 | 1 | 51165B584D2 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror, heated, Memory, left | EC HC2 | 1 | 51165B584D3 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Parking assistance system Plus |
S430A=Yes S5DNA=No |
|||||||||
| 01 | Aussenspiegel beheizt Memory rechts | HC2 | 1 | 51165B584E0 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror, heated, Memory, left | EC HC2 | 1 | 51165B584E3 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=No S459A=Yes S5DNA=No |
|||||||||
| 01 | Aussenspiegel beheizt Memory rechts | HC2 | 1 | 51165B584F2 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror, heated, Memory, left | HC2 | 1 | 51165B584F5 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=No S459A=No S5DNA=No |
|||||||||
| 01 | heated outside mirror, right | HC2 | 1 | 51165B58500 | Shop at ECS Tuning | |||||
| 01 | heated outside mirror, left | HC2 | 1 | 51165B58501 | Shop at ECS Tuning | |||||
| 02 | Mirror cap primed left | 1 | 51165A20821 | Shop at ECS Tuning | ||||||
| 02 | Mirror cap primed right | 1 | 51165A20822 | Shop at ECS Tuning | ||||||
| 03 | Supporting ring left | 1 | 51165A8C581 | Shop at ECS Tuning | ||||||
| 03 | Supporting ring right | 1 | 51165A8C582 | Shop at ECS Tuning | ||||||
| 04 | Turn signal lamp ex.rearview mirror left | 1 | 51165B5AC11 | Shop at ECS Tuning | ||||||
| 04 | Turn signal lamp ex.rearview mirror ri. | 1 | 51165B5AC12 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 05 | Set of camera mounts for exterior mirror | 1 | 51165B3AC48 | Shop at ECS Tuning | ||||||
| 06 | Light module, left | 1 | 63175A23697 | Shop at ECS Tuning | ||||||
| 06 | Light module, right | 1 | 63175A23698 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip |
S430A=No |
|||||||||
| 07 | Set of screws | 1 | 51165B32940 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
|||||||||
| 07 | Set of screws | 1 | 51165A9E1D3 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=Yes S459A=Yes S5DNA=Yes |
|||||||||
| 08 | Drive, exterior mirror, high | 2 | 67135A76030 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=Yes S459A=Yes S5DNA=No |
|||||||||
| 08 | Drive, exterior mirror, high | 2 | 67135A76030 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=Yes S459A=No S5DNA=Yes |
|||||||||
| 08 | Drive, exterior mirror, high | 2 | 67135A76030 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=Yes S459A=No S5DNA=No |
|||||||||
| 08 | Drive, exterior mirror, high | 2 | 67135A76030 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=No S459A=Yes S5DNA=Yes |
|||||||||
| 08 | Drive, exterior mirror, high | 2 | 67135A76030 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=No S459A=Yes S5DNA=No |
|||||||||
| 08 | Drive, exterior mirror, high | 2 | 67135A76030 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=No S459A=No S5DNA=Yes |
|||||||||
| 08 | Drive, exterior mirror, high | 2 | 67135A76030 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Parking assistance system Plus |
S430A=No S459A=No S5DNA=No |
|||||||||
| 08 | Drive, exterior mirror, low | 2 | 67135A76029 | Shop at ECS Tuning | ||||||
| 09 | Repair kit, wiring harness | 1 | 51165A9E1D2 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F67 JCW Outside mirror?
- This technical diagram illustrates the Outside mirror within the Vehicle trim group for the MINI Cabrio F67 JCW produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Aussenspiegel beheizt Memory rechts (Part #51165B584D2).
- Which models use the hardware listed in this Outside mirror?
- The hardware and components featured in the Outside mirror are specific to the MINI Cabrio F67 JCW produced during 2025. These technical specifications ensure that parts like the Aussenspiegel beheizt Memory rechts (51165B584D2) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Outside mirror assembly?
- Each item in the Outside mirror corresponds to the numbered list below the illustration. For the MINI Cabrio F67 JCW, you can identify the Aussenspiegel beheizt Memory rechts by locating its position on the schematic, which then links to the official BMW part number 51165B584D2 for the Vehicle trim section.
