Rear window shelf for BMW 2 Series F74 Gran Coupé 228 (2025)

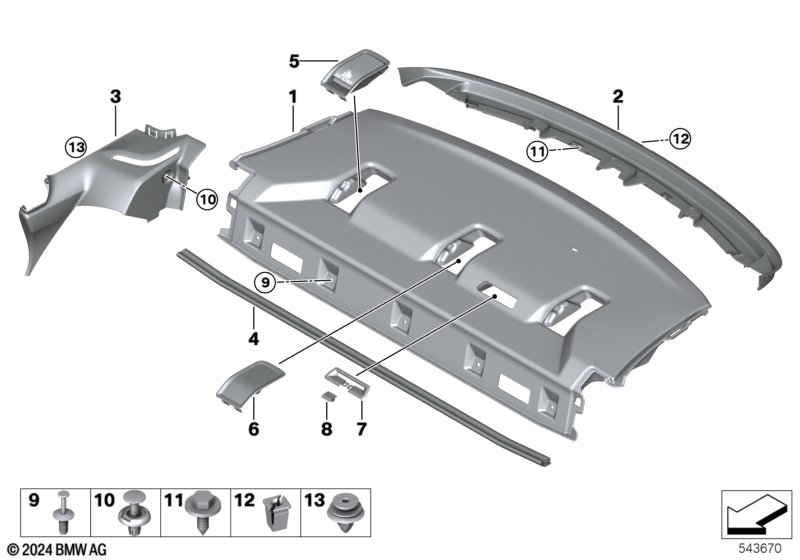

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 228. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth Arcturus/anthracite or Econeer Bicolor Blue or Alcan./Veganza-comb.Blk./Contr.st.Blue or Sensatec perforated/Coral red/black or VEGANZA PERFORATED MOCHA or VEGANZA PERFORATED BLACK |
BLAT=Yes ECI2=Yes KTNL=Yes KUKP=Yes KUMY=Yes KUSW=Yes |
|||||||||
| 01 | Rear window shelf | BLACK | 1 | 51466999467 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, luggage screen | BLACK | 1 | 51466999473 | NoS | Shop at ECS Tuning | ||||
| 03 | Support, rear window shelf left | BLACK | 1 | 51466999469 | NoS | Shop at ECS Tuning | ||||
| 03 | Support, rear window shelf right | BLACK | 1 | 51466999470 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim cover for load-through | BLACK | 1 | 51477910675 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Arcturus/anthracite or Econeer Bicolor Blue or Alcan./Veganza-comb.Blk./Contr.st.Blue or Sensatec perforated/Coral red/black or VEGANZA PERFORATED MOCHA or VEGANZA PERFORATED BLACK |
BLAT=Yes ECI2=Yes KTNL=Yes KUKP=Yes KUMY=Yes KUSW=Yes |
|||||||||
| 05 | Trim cover for Top Tether | SCHWARZ | 1 | 51465A90CA1 | NoS | Shop at ECS Tuning | ||||
| 07 | Cover, belt outlet, center | SCHWARZ | 1 | 51465A90CA7 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover panel for belt gap cover center | SCHWARZ | 1 | 51465A90CD0 | NoS | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | D = 6MM | 5 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning | ||||||
| 11 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | ST4,8MM | 4 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Clip | 4 | 07145A54705 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 228 Rear window shelf?
- This technical diagram illustrates the Rear window shelf within the Vehicle trim group for the 2 Series F74 Gran Coupé 228 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Rear window shelf (Part #51466999467).
- Which models use the hardware listed in this Rear window shelf?
- The hardware and components featured in the Rear window shelf are specific to the 2 Series F74 Gran Coupé 228 produced during 2025. These technical specifications ensure that parts like the Rear window shelf (51466999467) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear window shelf assembly?
- Each item in the Rear window shelf corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 228, you can identify the Rear window shelf by locating its position on the schematic, which then links to the official BMW part number 51466999467 for the Vehicle trim section.
