Outside mirror for BMW 1 Series F70 120

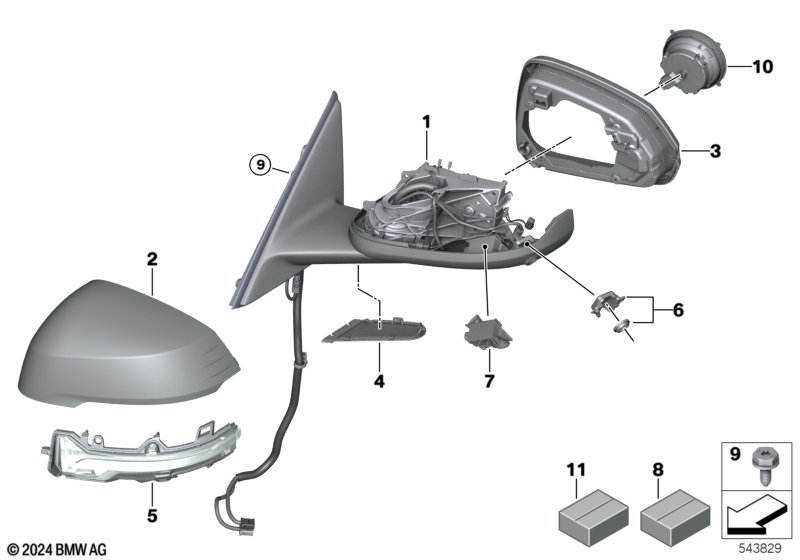

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=Yes S5DWA=Yes |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=Yes S5DWA=No |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=No S5DWA=Yes |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=Yes S5AUA=No S5DNA=Yes S5DWA=Yes |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=Yes S5AUA=No S5DNA=Yes S5DWA=No |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=Yes S5AUA=No S5DNA=No S5DWA=Yes |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=No S5AUA=Yes S5DNA=Yes S5DWA=Yes |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=No S5AUA=Yes S5DNA=Yes S5DWA=No |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=No S5AUA=Yes S5DNA=No S5DWA=Yes |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4C1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4C2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=No S5AUA=No S5DNA=No S5DWA=No |
|||||||||
| 01 | Exterior mirror memory left | SHADOW-LINE | 1 | 51165A6D491 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory right | SHADOW-LINE EC | 1 | 51165A6D492 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=No S5DWA=No |
|||||||||
| 01 | Exterior mirror memory left | SHADOW-LINE | 1 | 51165A6D4A1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory right | SHADOW-LINE EC | 1 | 51165A6D4A2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=Yes S5AUA=No S5DNA=No S5DWA=No |
|||||||||
| 01 | Exterior mirror memory left | SHADOW-LINE | 1 | 51165A6D4A1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory right | SHADOW-LINE EC | 1 | 51165A6D4A2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=No S5AUA=Yes S5DNA=No S5DWA=No |
|||||||||
| 01 | Exterior mirror memory left | SHADOW-LINE | 1 | 51165A6D4A1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory right | SHADOW-LINE EC | 1 | 51165A6D4A2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=No S5AUA=No S5DNA=Yes S5DWA=Yes |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4B1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4B2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=No S5AUA=No S5DNA=Yes S5DWA=No |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4B1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4B2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=Yes S5ASA=No S5AUA=No S5DNA=No S5DWA=Yes |
|||||||||
| 01 | Exterior mirror memory camera left | SHADOW-LINE | 1 | 51165A6D4B1 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror memory camera right | SHADOW-LINE EC | 1 | 51165A6D4B2 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=No S459A=Yes S5ASA=No S5AUA=No S5DNA=No S5DWA=No |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE | 1 | 51165A6D471 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | SHADOW-LINE | 1 | 51165A6D472 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=No S459A=No S5ASA=Yes S5AUA=Yes S5DNA=No S5DWA=No |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE HC2 | 1 | 51165A6D461 | Shop at ECS Tuning | |||||
| 01 | heated outside mirror, right | SHADOW-LINE HC2 | 1 | 51165A6D462 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=No S459A=No S5ASA=Yes S5AUA=No S5DNA=No S5DWA=No |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE HC2 | 1 | 51165A6D461 | Shop at ECS Tuning | |||||
| 01 | heated outside mirror, right | SHADOW-LINE HC2 | 1 | 51165A6D462 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=No S459A=No S5ASA=No S5AUA=Yes S5DNA=No S5DWA=No |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE HC2 | 1 | 51165A6D461 | Shop at ECS Tuning | |||||
| 01 | heated outside mirror, right | SHADOW-LINE HC2 | 1 | 51165A6D462 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=No S459A=Yes S5ASA=Yes S5AUA=Yes S5DNA=No S5DWA=No |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE HC2 | 1 | 51165A6D481 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | SHADOW-LINE HC2 | 1 | 51165A6D482 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=No S459A=Yes S5ASA=Yes S5AUA=No S5DNA=No S5DWA=No |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE HC2 | 1 | 51165A6D481 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | SHADOW-LINE HC2 | 1 | 51165A6D482 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=No S459A=Yes S5ASA=No S5AUA=Yes S5DNA=No S5DWA=No |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE HC2 | 1 | 51165A6D481 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | SHADOW-LINE HC2 | 1 | 51165A6D482 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S430A=No S459A=No S5ASA=No S5AUA=No S5DNA=No S5DWA=No |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 51165A6D451 | Shop at ECS Tuning | |||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 51165A6D452 | Shop at ECS Tuning | |||||
| 02 | Outside mirror cover cap, left, primed | 1 | 51165A64B53 | Shop at ECS Tuning | ||||||
| 02 | Outside mirror cover cap, right, primed | 1 | 51165A64B54 | Shop at ECS Tuning | ||||||
| 03 | Supporting ring left | SHADOW-LINE | 1 | 51165A6A727 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | SHADOW-LINE | 1 | 51165A6A728 | Shop at ECS Tuning | |||||
| 04 | Set of covers mirror baseplate | 1 | 51165A73355 | Shop at ECS Tuning | ||||||
| 05 | Auxiliary turn signal, mirror, left | 1 | 51165A6AB87 | Shop at ECS Tuning | ||||||
| 05 | Auxiliary turn signal, mirror, right | 1 | 51165A6AB88 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 06 | Set of camera mounts for exterior mirror | 1 | 51165A73353 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and M SPORT EXTERIEURUMFAENGE |
S430A=Yes S9T1A=No |
|||||||||
| 07 | Light module, left | 1 | 51165A6AB93 | Shop at ECS Tuning | ||||||
| 07 | Light module, left | 1 | 51165A6AB94 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and M SPORT EXTERIEURUMFAENGE |
S430A=Yes S9T1A=Yes |
|||||||||
| 07 | Light module, left | MPA | 1 | 51165A81B43 | Shop at ECS Tuning | |||||
| 07 | Light module, right | MPA | 1 | 51165A81B44 | Shop at ECS Tuning | |||||
| 08 | Set of screws | 1 | 51165A73354 | Shop at ECS Tuning | ||||||
| 09 | Hexagon screw, self-threading | M6X19 | 6 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory |
S430A=Yes S459A=Yes |
|||||||||
| 10 | Drive, outside Memory mirror | 2 | 67135A71641 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory |
S430A=Yes S459A=No |
|||||||||
| 10 | Drive, outside Memory mirror | 2 | 67135A71641 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory |
S430A=No S459A=Yes |
|||||||||
| 10 | Drive, outside Memory mirror | 2 | 67135A71641 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory |
S430A=No S459A=No |
|||||||||
| 10 | Drive, outside mirror left | 2 | 67137292347 | +core | Shop at ECS Tuning | |||||
| 11 | Repair kit cable exterior mirror | 1 | 51165B44D77 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
