Door trim, rear for BMW 1 Series F70 120d (2025)

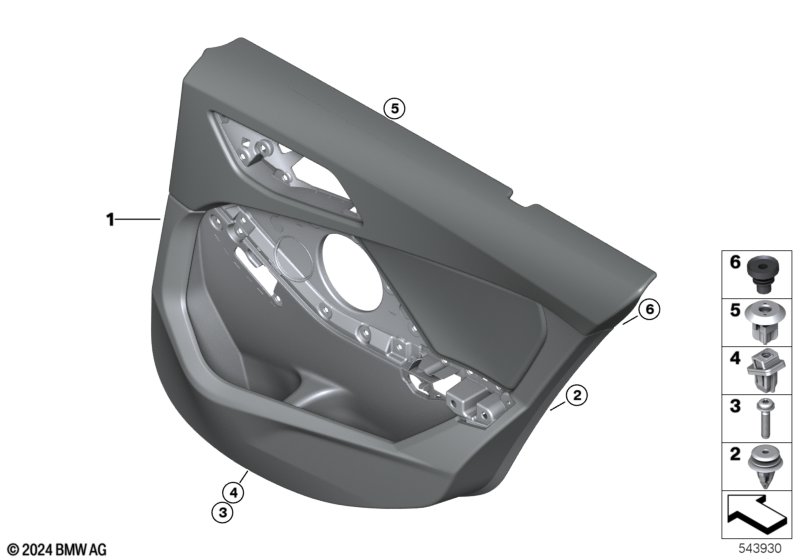

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with VEGANZA PERFORATED OYSTER |
KUCX=Yes |
|||||||||
| 01 | Door trim panel, rear, left | OYSTER | 1 | 51425B5C277 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | OYSTER | 1 | 51425B5C278 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Coral red/black |
KUKP=Yes |
|||||||||
| 01 | Door trim panel, rear, left | KORALLROT | 1 | 51425B5C279 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | KORALLROT | 1 | 51425B5C280 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED BLACK |
KUSW=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SCHWARZ | 1 | 51425B5C273 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | SCHWARZ | 1 | 51425B5C274 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Arcturus/anthracite |
BLAT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 51425B5C269 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 51425B5C270 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED MOCHA |
KUMY=Yes |
|||||||||
| 01 | Door trim panel, rear, left | MOKKA | 1 | 51425B5C275 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | MOKKA | 1 | 51425B5C276 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Econeer Bicolor Blue |
ECI2=Yes |
|||||||||
| 01 | Door trim panel, rear, left | BONAIR | 1 | 51425B5C271 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | BONAIR | 1 | 51425B5C272 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcan./Veganza-comb.Blk./Contr.st.Blue |
KTNL=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SCHWARZ / BLAU | 1 | 51425B5C281 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | SCHWARZ / BLAU | 1 | 51425B5C282 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip with sealing washer, Light Blue | 8 | 07149136882 | $0.59 | Shop at ECS Tuning | |||||
| 03 | Screw | 5X20 | 4 | 07129909320 | Shop at ECS Tuning | |||||
| 04 | Plug-in nut | 1 | 51252753575 | $2.89 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | 1 | 07147265039 | Shop at ECS Tuning | ||||||
| 06 | Stop buffer | 8 | 51417326324 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
