Door window lifting mechanism front for BMW 1 Series F70 120

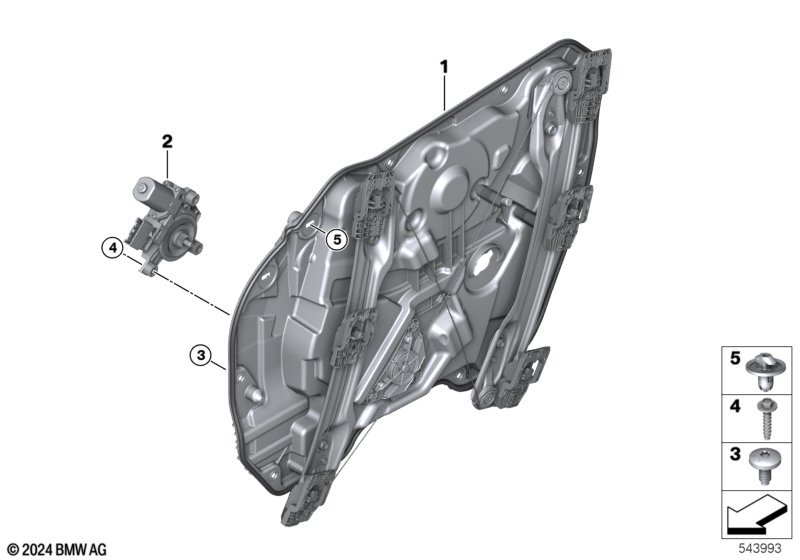

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, door front left | 1 | 51335A638E3 | Shop at ECS Tuning | ||||||
| 01 | Carrier, door front right | 1 | 51335A638E4 | Shop at ECS Tuning | ||||||
| right | ||||||||||
| 02 | Drive for window lifter | 1 | 67625A75081 | Shop at ECS Tuning | ||||||
| left | ||||||||||
| 02 | Drive for window lifter | 1 | 67625A75082 | Shop at ECS Tuning | ||||||
| 03 | Fillister head screw | M6 | 16 | 07147465017 | Shop at ECS Tuning | |||||
| 04 | Screw | 6 | 51339481250 | Shop at ECS Tuning | ||||||
| 05 | Lock | 6 | 51339481249 | Shop at ECS Tuning | ||||||
