Locking system, door, front for BMW 1 Series F70 120

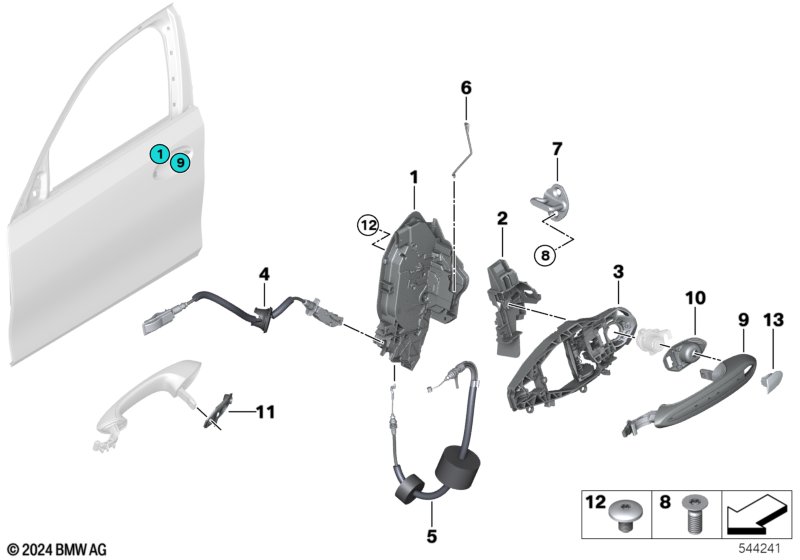

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Thiefproofing device |
S8TGA=Yes |
|||||||||
| 01 | Door lock right | RL | 1 | 51215A160C6 | Shop at ECS Tuning | |||||
| 01 | Door lock left | RL | 1 | 51215A160C7 | Shop at ECS Tuning | |||||
| For vehicles with Thiefproofing device |
S8TGA=No |
|||||||||
| 01 | Door lock right | RL | 1 | 51215A160B6 | Shop at ECS Tuning | |||||
| 01 | Door lock left | RL | 1 | 51215A160B7 | Shop at ECS Tuning | |||||
| 02 | Switch panel, right | 1 | 51217446974 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 03 | Carrier, outside door handle, left | 1 | 51219881777 | Shop at ECS Tuning | ||||||
| 03 | Carrier, outside door handle, right | 1 | 51219881778 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 03 | Carrier, outside door handle, left | CA | 1 | 51219881779 | Shop at ECS Tuning | |||||
| 03 | Carrier, outside door handle, right | CA | 1 | 51219881780 | Shop at ECS Tuning | |||||
| 04 | Bowden cable, inside door opener front | 2 | 51217446978 | Shop at ECS Tuning | ||||||
| 05 | Bowd.cable,outside door handle front | 2 | 51217446975 | Shop at ECS Tuning | ||||||
| 06 | Connection rod, driver's side | 1 | 51217447062 | Shop at ECS Tuning | ||||||
| 07 | Striker without base | 2 | 04/2022 | 51219883752 | ENDED | Shop at ECS Tuning | ||||
| 07 | Striker with underlay | 2 | 51215A67B30 | Shop at ECS Tuning | ||||||
| 08 | Countersunk head screw | 4 | 51219463885 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 09 | Outside door handle, primed, left | BASIS | 1 | 51217489321 | Shop at ECS Tuning | |||||
| 09 | Outside door handle, primed, right | BASIS | 1 | 51217489324 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 09 | Door handle, primed, outer right | CA / OVT / NFC | 1 | 51215A72F34 | Shop at ECS Tuning | |||||
| 09 | Door handle, primed, outer left | CA / OVT | 1 | 51215A72F35 | Shop at ECS Tuning | |||||
| 10 | Attachment cap, right | 1 | 51217497724 | Shop at ECS Tuning | ||||||
| 11 | Cover for grip, lower left | RHD | 1 | 51217497721 | Shop at ECS Tuning | |||||
| 12 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| Included in door handle | ||||||||||
| 13 | Prime coated covering | BASIS | 2 | 51217489341 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
