Closing system, door, rear for BMW 1 Series F70 120

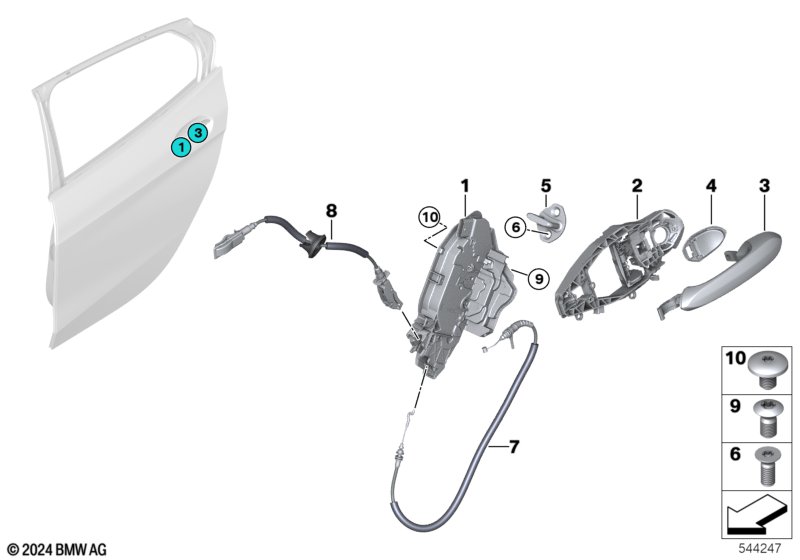

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Thiefproofing device |
S8TGA=No |
|||||||||
| 01 | Door lock rear left | 1 | 51225A160C1 | Shop at ECS Tuning | ||||||
| 01 | Door lock right rear | 1 | 51225A160C2 | Shop at ECS Tuning | ||||||
| For vehicles with Thiefproofing device |
S8TGA=Yes |
|||||||||
| 01 | Door lock rear left | 1 | 51225A160D1 | Shop at ECS Tuning | ||||||
| 01 | Door lock right rear | 1 | 51225A160D2 | Shop at ECS Tuning | ||||||
| 02 | Carrier, outside door handle, left | 1 | 51219881777 | Shop at ECS Tuning | ||||||
| 02 | Carrier, outside door handle, right | 1 | 51219881778 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 03 | Door handle, primed, outer left | OVT | 1 | 51219491457 | Shop at ECS Tuning | |||||
| 03 | Door handle, primed, outer right | OVT | 1 | 51219491458 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 03 | Outside door handle, primed, left | BASIS | 1 | 51217489321 | Shop at ECS Tuning | |||||
| 03 | Outside door handle, primed, right | BASIS | 1 | 51217489322 | Shop at ECS Tuning | |||||
| 04 | Cover for grip, lower left | RHD | 1 | 51217497721 | Shop at ECS Tuning | |||||
| 04 | Cover for grip, lower right | LHD | 1 | 51217497722 | Shop at ECS Tuning | |||||
| 05 | Striker without base | 2 | 04/2022 | 51219883752 | ENDED | Shop at ECS Tuning | ||||
| 05 | Striker with underlay | 2 | 51215A67B30 | Shop at ECS Tuning | ||||||
| 06 | Countersunk head screw | 4 | 51219463885 | Shop at ECS Tuning | ||||||
| 07 | Bowden cable, outside door handle, rear | 2 | 51227446976 | Shop at ECS Tuning | ||||||
| 08 | Bowden cable, door opener, inside rear | 2 | 51227446981 | Shop at ECS Tuning | ||||||
| 09 | Csk.fillister head srew | M6X11,5-10.9 MA | 4 | 07147437063 | Shop at ECS Tuning | |||||
| 10 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
