Trim and seals for door, rear for BMW 1 Series F70 120

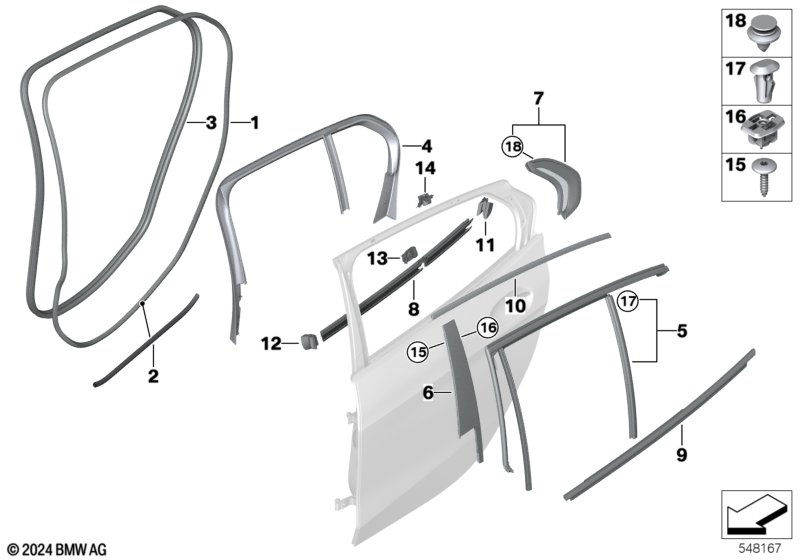

This Trim and seals for door, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip | 2 | 51769880691 | Shop at ECS Tuning | ||||||
| 01 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, rear | 1 | 01299880695 | Shop at ECS Tuning | ||||||
| Note: Observe new repair instructions 5171003! |
||||||||||
| 02 | Partial replacement, door weatherstrip | 2 | 51765B68FC5 | Shop at ECS Tuning | ||||||
| 03 | Edge protection, door, rear | 2 | 51729880689 | Shop at ECS Tuning | ||||||
| 04 | Trim, window frame, door, rear left | 1 | 51357464797 | Shop at ECS Tuning | ||||||
| 04 | Cover for window frame, door, rear right | 1 | 51357464798 | Shop at ECS Tuning | ||||||
| 05 | Window guide, left rear door | 1 | 51357452349 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right rear door | 1 | 51357452350 | Shop at ECS Tuning | ||||||
| 06 | Cover, column B, door, rear left | SHADOWLINE | 1 | 51357452379 | Shop at ECS Tuning | |||||
| 06 | Cover, column B, door, rear right | SHADOWLINE | 1 | 51357452380 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=No |
|||||||||
| 07 | Cover column C left | GLANZSCHWARZ | 1 | 51135A3C0C7 | Shop at ECS Tuning | |||||
| 07 | Cover column C right | GLANZSCHWARZ | 1 | 51135A3C0C8 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 07 | Cover column C left | ALU | 1 | 51135A3C0C5 | Shop at ECS Tuning | |||||
| 07 | Cover column C right | ALU | 1 | 51135A3C0C6 | Shop at ECS Tuning | |||||
| 08 | Window cavity seal rear door left | 1 | 51357452369 | Shop at ECS Tuning | ||||||
| 08 | Window cavity seal rear door right | 1 | 51357452370 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=No |
|||||||||
| 09 | Window well strip, outer, door, rear lft | SHADOWLINE | 1 | 51357473999 | Shop at ECS Tuning | |||||
| 09 | Window well strip, outer, door, rear rgt | SHADOWLINE | 1 | 51357474000 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 09 | Window well strip, outer, door, rear lft | ALU SATINIERT | 1 | 51357452365 | Shop at ECS Tuning | |||||
| 09 | Window well strip, outer, door, rear rgt | ALU SATINIERT | 1 | 51357452366 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=No |
|||||||||
| 10 | Window frame cover, rear left door | SHADOWLINE | 1 | 51357473995 | Shop at ECS Tuning | |||||
| 10 | Cover, window frame, right rear door | SHADOWLINE | 1 | 51357473996 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 10 | Window frame cover, rear left door | ALU SATINIERT | 1 | 51357452395 | Shop at ECS Tuning | |||||
| 10 | Cover, window frame, right rear door | ALU SATINIERT | 1 | 51357452396 | Shop at ECS Tuning | |||||
| 11 | Seal parapet C-pillar rear left | 1 | 51355A81E37 | NoS | Shop at ECS Tuning | |||||
| 11 | Seal parapet C-pillar rear right | 1 | 51355A81E38 | NoS | Shop at ECS Tuning | |||||
| 12 | Seal parapet B-pillar rear left | 1 | 51135A81E31 | NoS | Shop at ECS Tuning | |||||
| 12 | Seal parapet B-pillar rear right | 1 | 51135A81E32 | NoS | Shop at ECS Tuning | |||||
| 13 | Seal trim guide bottom left | 1 | 51135A81E35 | NoS | Shop at ECS Tuning | |||||
| 13 | Seal trim guide bottom right | 1 | 51135A81E36 | NoS | Shop at ECS Tuning | |||||
| 14 | Seal trim guide top left | 1 | 51135A81E33 | NoS | Shop at ECS Tuning | |||||
| 14 | Seal trim guide top right | 1 | 51135A81E34 | NoS | Shop at ECS Tuning | |||||
| 15 | Fillister head screw | 8 | 07147453046 | Shop at ECS Tuning | ||||||
| 16 | Clip | 8 | 51337140714 | Shop at ECS Tuning | ||||||
| 17 | Clip | 2 | 51359880687 | Shop at ECS Tuning | ||||||
| 18 | Clip | 6 | 51137497365 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
