M Trim, rear for BMW 5 Series G99 M5 Touring M5 (2025)

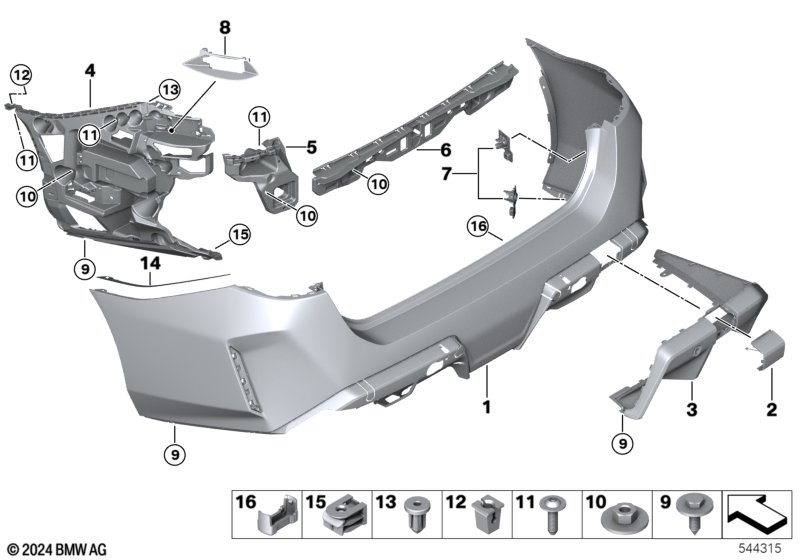

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim rear top primed | ECE | 1 | 51125B58407 | Shop at ECS Tuning | |||||
| 02 | Cover for towing eye primed | 1 | 51125B3AC30 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling |
S3ACA=No |
|||||||||
| 03 | Trim diffuser left | SCHWARZ HGL | 1 | 51127885577 | Shop at ECS Tuning | |||||
| 03 | Trim diffuser right | SCHWARZ HGL | 1 | 51127885578 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
S3ACA=Yes |
|||||||||
| 03 | Trim diffuser left | SCHWARZ HGL AHV | 1 | 51127885621 | Shop at ECS Tuning | |||||
| 03 | Trim diffuser right | SCHWARZ HGL AHV | 1 | 51127885622 | Shop at ECS Tuning | |||||
| 04 | Mount, bumper rear left | 1 | 51127887031 | Shop at ECS Tuning | ||||||
| 04 | Mount, bumper rear right | 1 | 51127887032 | Shop at ECS Tuning | ||||||
| 05 | Mount corner section left | 1 | 51125A011C1 | Shop at ECS Tuning | ||||||
| 05 | Mount corner section right | 1 | 51125A011C2 | Shop at ECS Tuning | ||||||
| 06 | Bumper guide, rear, center | 1 | 51125A0F8A7 | Shop at ECS Tuning | ||||||
| 07 | Kit, mount for PDC/PMA sensor, rear | 1 | 51125B3AC31 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=Yes |
|||||||||
| 08 | Absorber funnel rear left | 1 | 51127887047 | Shop at ECS Tuning | ||||||
| 08 | Absorber funnel right rear | 1 | 51127887048 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=No |
|||||||||
| 08 | Absorber funnel rear left | 1 | 51127887047 | Shop at ECS Tuning | ||||||
| 08 | Absorber funnel right rear | 1 | 51127887048 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=No S5AUA=Yes |
|||||||||
| 08 | Absorber funnel rear left | 1 | 51127887047 | Shop at ECS Tuning | ||||||
| 08 | Absorber funnel right rear | 1 | 51127887048 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | TS5X20SW10 D=22 | 4 | 07149481168 | Shop at ECS Tuning | |||||
| 10 | Combination nut | 15 | 07147305178 | Shop at ECS Tuning | ||||||
| 11 | Fillister head screw | ST5X17-ZNS3 | 12 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Plug-in nut | 8 | 51127461407 | Shop at ECS Tuning | ||||||
| 14 | Protective film, rear bumper left | 1 | 51125B3D293 | Shop at ECS Tuning | ||||||
| 14 | Protective film, right rear bumper | 1 | 51125B3D294 | Shop at ECS Tuning | ||||||
| 15 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 16 | Lid PDC rear | 1 | 51115B574E1 | Shop at ECS Tuning | ||||||
