Cargo area floor covering 48 V for BMW 1 Series F70 120 (2025)

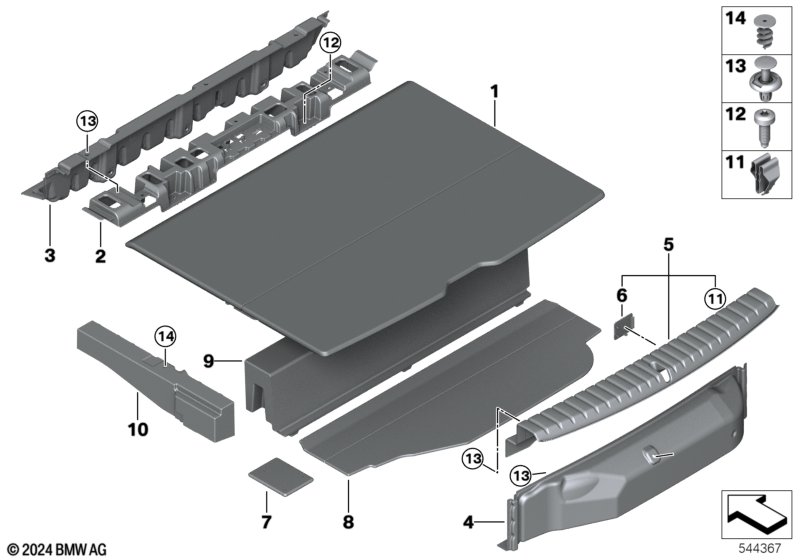

This Cargo area floor covering 48 V technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Removable panel | 48V | 1 | 51475A2CFC1 | Shop at ECS Tuning | |||||
| 02 | Mount removable panel | 48V | 1 | 51475A2CFD5 | NoS | Shop at ECS Tuning | ||||
| 03 | Trim panel, cross member, trunk | 48V | 1 | 51475A2CFC3 | NoS | Shop at ECS Tuning | ||||
| 04 | Rear trunk trim panel | 1 | 51477448212 | NoS | Shop at ECS Tuning | |||||
| 05 | Loading sill cover | 48V | 1 | 51475A2D043 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover, trim panel, loading edge | 2 | 51479875904 | NoS | Shop at ECS Tuning | |||||
| 07 | Impedance plate | 1 | 51479873663 | NoS | Shop at ECS Tuning | |||||
| 08 | Trim panel, trunk floor | 48V | 1 | 51475A2CFC5 | NoS | Shop at ECS Tuning | ||||
| 09 | Support for removable panel | 48V | 1 | 51475A7ACF3 | NoS | Shop at ECS Tuning | ||||
| 10 | Pad, side member, left | 1 | 51475A2D045 | NoS | Shop at ECS Tuning | |||||
| 10 | Pad, side member, right | 1 | 51475A2D046 | NoS | Shop at ECS Tuning | |||||
| 11 | Clamp | 4 | 07147321144 | Shop at ECS Tuning | ||||||
| 12 | Countersunk screw | M6X16 | 2 | 07119907139 | Shop at ECS Tuning | |||||
| 13 | Expanding rivet | 11 | 07147401727 | Shop at ECS Tuning | ||||||
| 14 | Foam pad screw | 2 | 07149383020 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
