Cargo area floor covering 12 V for BMW 1 Series F70 116 (2025)

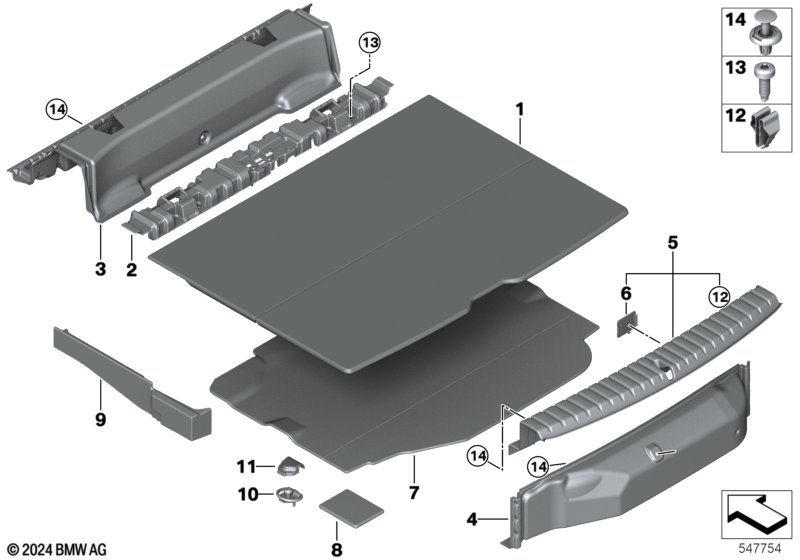

This Cargo area floor covering 12 V technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 116. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor carpet, luggage compartment | 1 | 51477448231 | NoS | Shop at ECS Tuning | |||||
| 02 | Mount for trunk floor panel | 1 | 51477448230 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and Emergency spare wheel |
S235A=No S300A=No |
|||||||||
| 03 | Trim panel, cross member, trunk | 1 | 51477448200 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and Emergency spare wheel |
S235A=Yes S300A=Yes |
|||||||||
| 03 | Trim panel, cross member, trunk | 1 | 51477448211 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Emergency spare wheel |
S235A=Yes S300A=No |
|||||||||
| 03 | Trim panel, cross member, trunk | 1 | 51477448211 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Emergency spare wheel |
S235A=No S300A=Yes |
|||||||||
| 03 | Trim panel, cross member, trunk | 1 | 51477448211 | NoS | Shop at ECS Tuning | |||||
| 04 | Rear trunk trim panel | 1 | 51477448212 | NoS | Shop at ECS Tuning | |||||
| 05 | Loading sill cover | 1 | 51477448213 | NoS | Shop at ECS Tuning | |||||
| 06 | Cover, trim panel, loading edge | 2 | 51479875904 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Emergency spare wheel |
S300A=No |
|||||||||
| 07 | Trim panel, trunk floor | 1 | 51477448225 | Shop at ECS Tuning | ||||||
| For vehicles with Emergency spare wheel |
S300A=Yes |
|||||||||
| 07 | Trim panel, trunk floor | 1 | 51477448226 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Emergency spare wheel and Trunk room net and COC ADDITIONAL SCOPES |
S300A=No S413A=No S8R3A=No |
|||||||||
| 07 | Trim panel, trunk floor | 1 | 51477448225 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Emergency spare wheel and Trunk room net and COC ADDITIONAL SCOPES |
S300A=No S413A=Yes S8R3A=Yes |
|||||||||
| 07 | Trim panel, trunk floor | 1 | 51477453925 | NoS | Shop at ECS Tuning | |||||
| 08 | Impedance plate | 1 | 51479873663 | NoS | Shop at ECS Tuning | |||||
| 09 | Pad, side member, left | 1 | 51477477015 | NoS | Shop at ECS Tuning | |||||
| 09 | Pad, side member, right | 1 | 51477477016 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Emergency spare wheel and Trunk room net and COC ADDITIONAL SCOPES |
S300A=No S413A=Yes S8R3A=Yes |
|||||||||
| 10 | Tie-down ring | 2 | 51477271174 | Shop at ECS Tuning | ||||||
| 11 | Cover, fastening loop | 2 | 51477274764 | Shop at ECS Tuning | ||||||
| 12 | Clamp | 11 | 07147321144 | Shop at ECS Tuning | ||||||
| 13 | Countersunk screw | M6X16 | 4 | 07119907139 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | 9 | 07147401727 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
