Air ducts for BMW 2 Series F74 Gran Coupé 220 (2025)

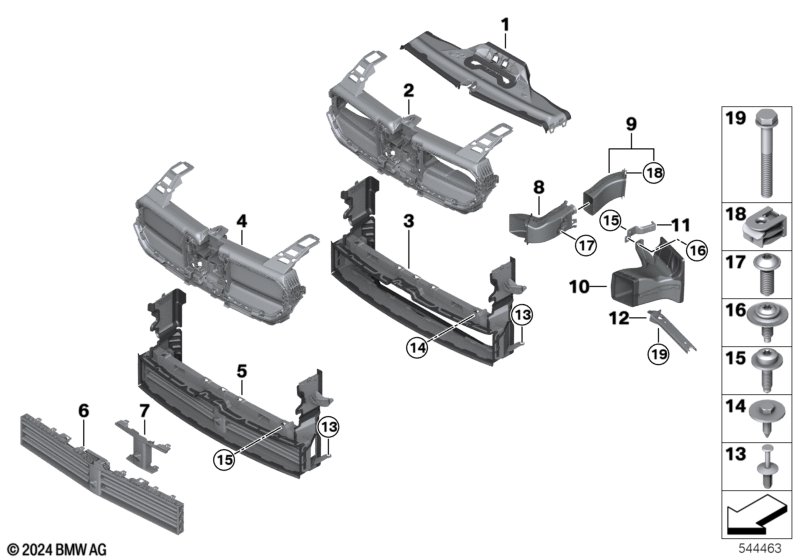

This Air ducts technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover for air duct | 1 | 51745A54138 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=No S1DLA=No S842A=No S8LBA=No |
|||||||||
| 02 | Air duct, top | 1 | 51745A35E17 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and CO2 package and BMW radiator grille iconic glow and Country control for Brazil 00464 |
L802A=Yes S1CBA=No S3DNA=No S8LBA=No |
|||||||||
| 03 | Air duct, bottom | OHNE BKS | 1 | 51745A35E19 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and CO2 package and BMW radiator grille iconic glow and Country control for Brazil 00464 |
L802A=No S1CBA=No S3DNA=Yes S8LBA=No |
|||||||||
| 03 | Air duct, bottom | OHNE BKS | 1 | 51745A35E19 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and CO2 package and BMW radiator grille iconic glow and Country control for Brazil 00464 |
L802A=No S1CBA=No S3DNA=No S8LBA=No |
|||||||||
| 03 | Air duct, bottom | OHNE BKS | 1 | 51745A35E19 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and CO2 package and BMW radiator grille iconic glow and Cold-climate version and Country control for Brazil 00464 |
L802A=Yes S1CBA=No S3DNA=Yes S842A=No S8LBA=No |
|||||||||
| 03 | Air duct, bottom | OHNE BKS | 1 | 51745A78CA5 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=Yes S1DLA=Yes S842A=Yes S8LBA=Yes |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=Yes S1DLA=Yes S842A=Yes S8LBA=No |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=Yes S1DLA=Yes S842A=No S8LBA=Yes |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=Yes S1DLA=Yes S842A=No S8LBA=No |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=Yes S1DLA=No S842A=Yes S8LBA=Yes |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=Yes S1DLA=No S842A=Yes S8LBA=No |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=Yes S1DLA=No S842A=No S8LBA=Yes |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=Yes S1DLA=No S842A=No S8LBA=No |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=No S1DLA=Yes S842A=Yes S8LBA=Yes |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=No S1DLA=Yes S842A=Yes S8LBA=No |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=No S1DLA=Yes S842A=No S8LBA=Yes |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=No S1DLA=Yes S842A=No S8LBA=No |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=No S1DLA=No S842A=Yes S8LBA=Yes |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=No S1DLA=No S842A=Yes S8LBA=No |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Exhaust emission standard J-LEV RDE and Cold-climate version and Country control for Brazil 00464 |
S1CBA=No S1DLA=No S842A=No S8LBA=Yes |
|||||||||
| 04 | Air duct with air flap control, upper | 1 | 51745A571A4 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Extra package, EU-specific and Country control for Brazil 00464 |
S1CBA=Yes S230A=Yes S8LBA=Yes |
|||||||||
| 05 | Air duct with air flap control, lower | OHNE BKS | 1 | 51745A6A9A3 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Extra package, EU-specific and Country control for Brazil 00464 |
S1CBA=Yes S230A=Yes S8LBA=No |
|||||||||
| 05 | Air duct with air flap control, lower | OHNE BKS | 1 | 51745A6A9A3 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Extra package, EU-specific and Country control for Brazil 00464 |
S1CBA=No S230A=Yes S8LBA=Yes |
|||||||||
| 05 | Air duct with air flap control, lower | OHNE BKS | 1 | 51745A6A9A3 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Extra package, EU-specific and Country control for Brazil 00464 |
S1CBA=Yes S230A=No S8LBA=Yes |
|||||||||
| 05 | Air duct with air flap control, lower | OHNE BKS | 1 | 51745A571A9 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Extra package, EU-specific and Country control for Brazil 00464 |
S1CBA=Yes S230A=No S8LBA=No |
|||||||||
| 05 | Air duct with air flap control, lower | OHNE BKS | 1 | 51745A571A9 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Extra package, EU-specific and Country control for Brazil 00464 |
S1CBA=No S230A=No S8LBA=Yes |
|||||||||
| 05 | Air duct with air flap control, lower | OHNE BKS | 1 | 51745A571A9 | Shop at ECS Tuning | |||||
| 06 | Air flaps, lower | 1 | 51745B4C881 | Shop at ECS Tuning | ||||||
| 07 | Airduct bracket | 1 | 51745B4C883 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=Yes S823A=Yes |
|||||||||
| 10 | Air duct, exterior radiator, left | 1 | 51745A35E31 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=Yes S823A=No |
|||||||||
| 10 | Air duct, exterior radiator, left | 1 | 51745A35E31 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=No S823A=Yes |
|||||||||
| 10 | Air duct, exterior radiator, left | 1 | 51745A35E31 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=Yes S823A=Yes |
|||||||||
| 11 | Holder external radiator top | 1 | 51648737287 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=Yes S823A=No |
|||||||||
| 11 | Holder external radiator top | 1 | 51648737287 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=No S823A=Yes |
|||||||||
| 11 | Holder external radiator top | 1 | 51648737287 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=Yes S823A=Yes |
|||||||||
| 12 | Bracket, aux. radiator, lower right | 1 | 51648737286 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=Yes S823A=No |
|||||||||
| 12 | Bracket, aux. radiator, lower right | 1 | 51648737286 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=No S823A=Yes |
|||||||||
| 12 | Bracket, aux. radiator, lower right | 1 | 51648737286 | Shop at ECS Tuning | ||||||
| 13 | Expanding rivet | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | TS5X20SW10 D=22 | 5 | 07149481168 | Shop at ECS Tuning | |||||
| 15 | Countersunk screw | M6X20-PCU2-10.9 | 6 | 07119908698 | Shop at ECS Tuning | |||||
| 16 | Oval-head screw with spring washer | M6X20 | 2 | 07145A48F73 | Shop at ECS Tuning | |||||
| 18 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M6X55-Z1 | 2 | 07119904526 | $0.56 | Shop at ECS Tuning | ||||
