Center console for BMW 2 Series F74 Gran Coupé 228 (2025)

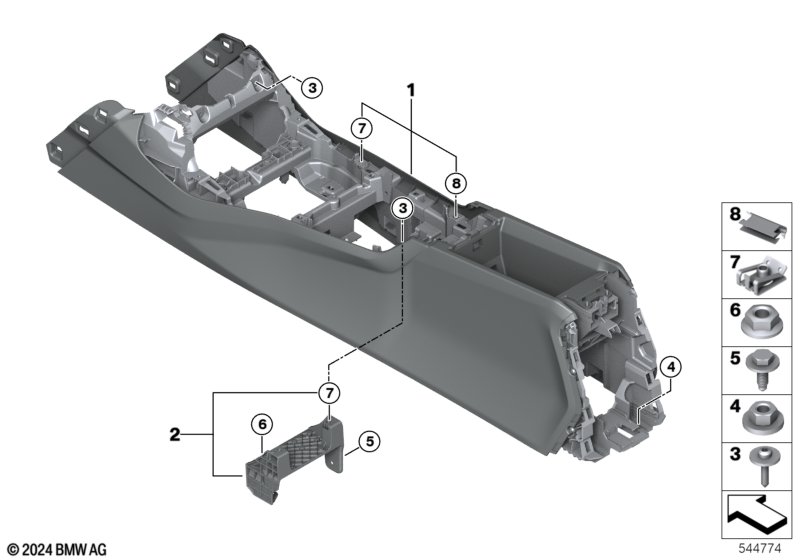

This Center console technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 228. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center console | 1 | 51165A86B12 | NoS | Shop at ECS Tuning | |||||
| 02 | Bracket f center console, center | 1 | 51165A36548 | NoS | Shop at ECS Tuning | |||||
| 03 | Combi. fillister head self-tapping screw | 4 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M8 | 2 | 07149200945 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X16 ZNS3 | 1 | 07119905577 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6-8-SC-ZNNIV S | 1 | 34506859776 | Shop at ECS Tuning | |||||
| 07 | C-clip sheet metal nut | 6 | 07149496755 | NoS | Shop at ECS Tuning | |||||
| 08 | Mounting clip | 6 | 07149349760 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 228 Center console?
- This technical diagram illustrates the Center console within the Vehicle trim group for the 2 Series F74 Gran Coupé 228 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Center console (Part #51165A86B12).
- Which models use the hardware listed in this Center console?
- The hardware and components featured in the Center console are specific to the 2 Series F74 Gran Coupé 228 produced during 2025. These technical specifications ensure that parts like the Center console (51165A86B12) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Center console assembly?
- Each item in the Center console corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 228, you can identify the Center console by locating its position on the schematic, which then links to the official BMW part number 51165A86B12 for the Vehicle trim section.
