Mounting parts, engine compartment for BMW 2 Series F78 Gran Coupé 225L (2025)

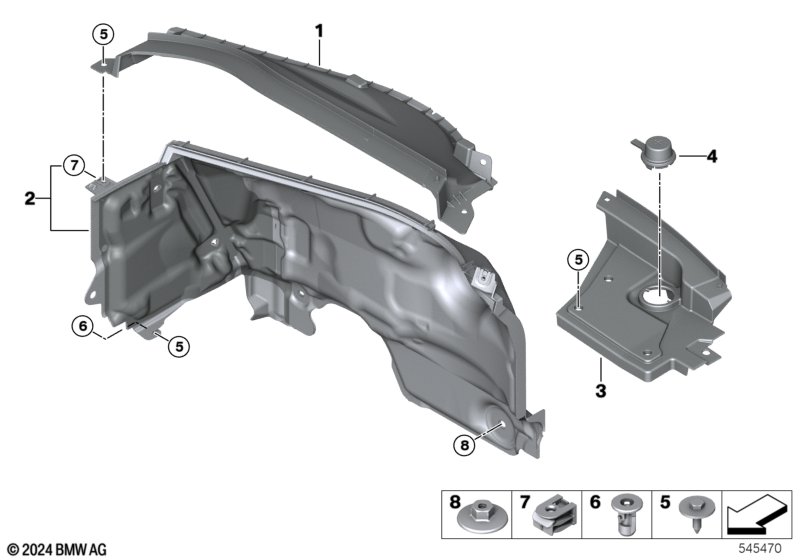

This Mounting parts, engine compartment technical drawing provides a detailed breakdown of the assembly for the 2 Series F78 Gran Coupé 225L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Firewall, upper section | 1 | 51719631551 | NoS | Shop at ECS Tuning | |||||
| 02 | Bulkhead lower section | 1 | 51719631552 | NoS | Shop at ECS Tuning | |||||
| 03 | Battery cover | 1 | 51718464773 | Shop at ECS Tuning | ||||||
| 04 | Cover cap, positive terminal | 1 | 51718498443 | NoS | Shop at ECS Tuning | |||||
| 05 | Hex bolt | TS5X20SW10 D=22 | 1 | 07149481168 | Shop at ECS Tuning | |||||
| 06 | Expanding nut | L=18.4, DMAX=18 | 1 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 07 | C-clip for plastic nut | TS5 | 3 | 07147311312 | Shop at ECS Tuning | |||||
| 08 | Plastic nut | 2 | 07149381677 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
