Glazing for BMW 2 Series F74 Gran Coupé 218 (2025)

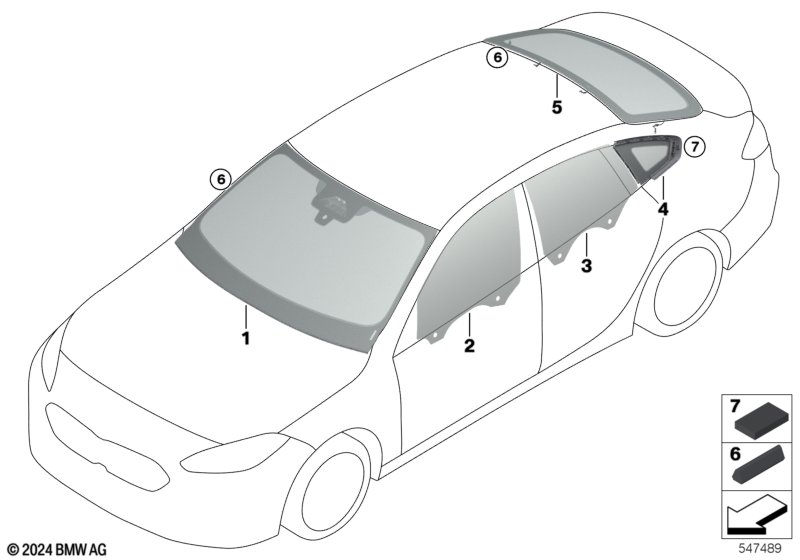

This Glazing technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Driving assistant professional and Head-up display and BMW Live dashboard Professional |
L8AAA=Yes S5AUA=No S610A=No S6U3A=No |
|||||||||
| 01 | Windshield | 1 | 51315A35798 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional and Head-up display and BMW Live dashboard Professional |
L8AAA=No S5AUA=Yes S610A=Yes S6U3A=Yes |
|||||||||
| 01 | Windshield gr rain-light-solar-cond.sen. | 1 | 51315A357A1 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional and Head-up display and BMW Live dashboard Professional |
L8AAA=No S5AUA=No S610A=Yes S6U3A=No |
|||||||||
| 01 | Windshield gr rain-light-solar-cond.sen. | HUD | 1 | 51315A35799 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional and Head-up display and BMW Live dashboard Professional |
L8AAA=No S5AUA=No S610A=Yes S6U3A=Yes |
|||||||||
| 01 | Windshield gr rain-light-solar-cond.sen. | 1 | 51315A357A0 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional and Head-up display and BMW Live dashboard Professional |
L8AAA=Yes S5AUA=Yes S610A=Yes S6U3A=Yes |
|||||||||
| 01 | Windshield gr rain-light-solar-cond.sen. | 1 | 51315A357A1 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional and Head-up display and BMW Live dashboard Professional |
L8AAA=Yes S5AUA=No S610A=Yes S6U3A=Yes |
|||||||||
| 01 | Windshield gr rain-light-solar-cond.sen. | 1 | 51315A357A0 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional and Head-up display and BMW Live dashboard Professional |
L8AAA=No S5AUA=No S610A=No S6U3A=No |
|||||||||
| 01 | Windshield | 1 | 51315A35798 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional and Head-up display and BMW Live dashboard Professional |
L8AAA=Yes S5AUA=No S610A=Yes S6U3A=No |
|||||||||
| 01 | Windshield gr rain-light-solar-cond.sen. | HUD | 1 | 51315A35799 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| 02 | Side window, door, left front | 1 | 51337474355 | Shop at ECS Tuning | ||||||
| 02 | Side window, door, right front | 1 | 51337474356 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 03 | Side window, door, left rear | 1 | 51357474351 | Shop at ECS Tuning | ||||||
| 03 | Side window, door, rear right | 1 | 51357474352 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 03 | Side window, door, left rear | SSG | 1 | 51357474353 | Shop at ECS Tuning | |||||
| 03 | Side window, door, rear right | SSG | 1 | 51357474354 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 04 | Side window, rigid, rear left | 1 | 51375A3C0D7 | Shop at ECS Tuning | ||||||
| 04 | Side window, rigid, rear right | 1 | 51375A3C0D8 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 04 | Side window, rigid, rear left | SSG | 1 | 51375A3C0E1 | Shop at ECS Tuning | |||||
| 04 | Side window, rigid, rear right | SSG | 1 | 51375A3C0E2 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=No |
|||||||||
| 05 | Rear window green | 1 | 51317477424 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
|||||||||
| 05 | Rear window green | SSG | 1 | 51317477429 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=Yes |
|||||||||
| 05 | Rear window green | SSG | 1 | 51317477429 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=No |
|||||||||
| 05 | Rear window green | 1 | 51317477424 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| 06 | Bump stop | 13 | 51317288462 | Shop at ECS Tuning | ||||||
| 07 | Hook&loop fastener | 2 | 51377164933 | $0.57 | Shop at ECS Tuning | |||||
