Door trim panel, front for BMW 2 Series F78 Gran Coupé 225L (2025)

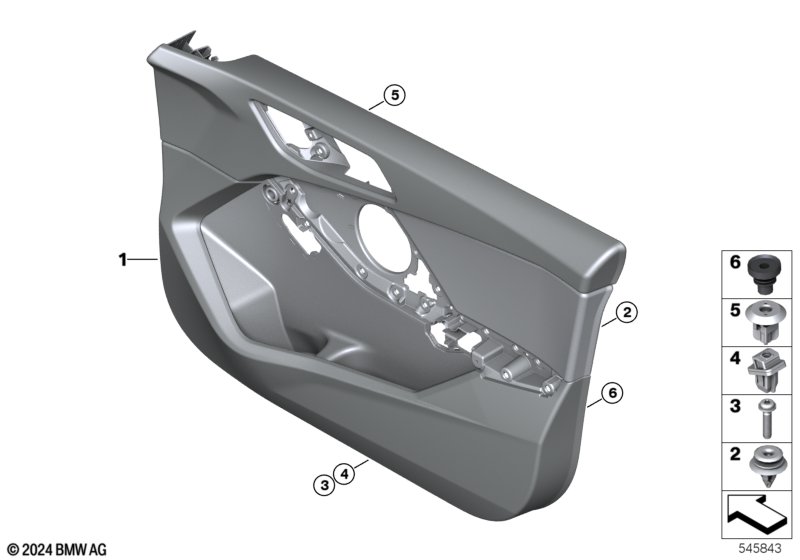

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 2 Series F78 Gran Coupé 225L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hi-Fi System Harman Kardon and Veganza perf. Atlas Grey/Smoke White The following components are included in the door trim panel: Edge stripping, foam pad, clips |
S674A=Yes KUKF=Yes |
|||||||||
| 01 | Door trim panel, front left | RAUCHWEISS | 1 | 51415B5B3E3 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | RAUCHWEISS | 1 | 51415B5B3E4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and Veganza perf. Atlas Grey/Smoke White The following components are included in the door trim panel: Edge stripping, foam pad, clips |
S674A=No KUKF=Yes |
|||||||||
| 01 | Door trim panel, front left | RAUCHWEISS | 1 | 51415B5B445 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | RAUCHWEISS | 1 | 51415B5B446 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and VEGANZA PERFORATED MOCHA The following components are included in the door trim panel: Edge stripping, foam pad, clips |
S674A=No KUMY=Yes |
|||||||||
| 01 | Door trim panel, front left | MOKKA | 1 | 51415B5B447 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | MOKKA | 1 | 51415B5B448 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and Sensatec perforated/Coral red/black The following components are included in the door trim panel: Edge stripping, foam pad, clips |
S674A=No KUKP=Yes |
|||||||||
| 01 | Door trim panel, front left | KORALLROT | 1 | 51415B5B451 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | KORALLROT | 1 | 51415B5B452 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and VEGANZA PERFORATED MOCHA The following components are included in the door trim panel: Edge stripping, foam pad, clips |
S674A=Yes KUMY=Yes |
|||||||||
| 01 | Door trim panel, front left | MOKKA | 1 | 51415B5B3E7 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | MOKKA | 1 | 51415B5B3E8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and Sensatec perforated/Coral red/black The following components are included in the door trim panel: Edge stripping, foam pad, clips |
S674A=Yes KUKP=Yes |
|||||||||
| 01 | Door trim panel, front left | KORALLROT | 1 | 51415B5B3F1 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | KORALLROT | 1 | 51415B5B3F2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and Alcan./Veganza-comb.Blk./Contr.st.Blue The following components are included in the door trim panel: Edge stripping, foam pad, clips |
S674A=Yes KTNL=Yes |
|||||||||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 51415B5B3E9 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415B5B3F0 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and Alcan./Veganza-comb.Blk./Contr.st.Blue The following components are included in the door trim panel: Edge stripping, foam pad, clips |
S674A=No KTNL=Yes |
|||||||||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 51415B5B449 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415B5B450 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip | 8 | 07145A444B5 | Shop at ECS Tuning | ||||||
| 03 | Screw | 5X20 | 5 | 07129909320 | Shop at ECS Tuning | |||||
| 04 | Plug-in nut | 2 | 51252753575 | $2.89 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | 1 | 07147265039 | Shop at ECS Tuning | ||||||
| 06 | Stop buffer | 6 | 51417326324 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
