Underfloor coating for BMW 2 Series F74 Gran Coupé 218 (2025)

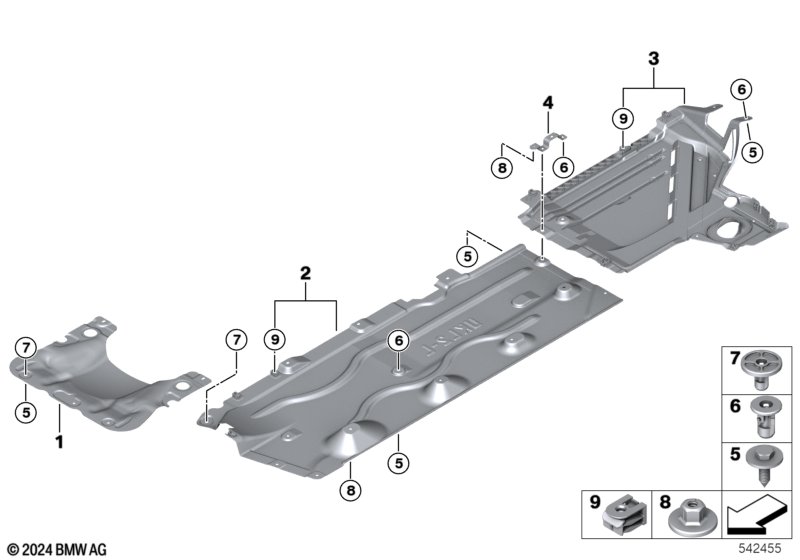

This Underfloor coating technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 01 | Underfloor coating center | 1 | 51757931725 | NoS | Shop at ECS Tuning | |||||
| 02 | Underbody panelling, side on left | 1 | 51758498401 | NoS | Shop at ECS Tuning | |||||
| 02 | Underbody panelling, side on right | 1 | 51758498402 | NoS | Shop at ECS Tuning | |||||
| 03 | Undershield for tank, left | 1 | 51755A341C1 | Shop at ECS Tuning | ||||||
| 03 | Undershield for tank, right | 1 | 51755A341C2 | Shop at ECS Tuning | ||||||
| 04 | Bracket, underbody encapsulation | 1 | 51757931731 | NoS | Shop at ECS Tuning | |||||
| 05 | Hex bolt | TS5X17 SW8 D=22 | 23 | 07149126886 | Shop at ECS Tuning | |||||
| 06 | Expanding nut | L=18.4, DMAX=18 | 14 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | L= 19.9MM | 5 | 07147306224 | Shop at ECS Tuning | |||||
| 08 | Plastic capnut with washer | D=22MM | 18 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 09 | C-clip for plastic nut | TS5 | 20 | 07147311312 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
