Sound insulating rear for BMW 2 Series F74 Gran Coupé 216 (2025)

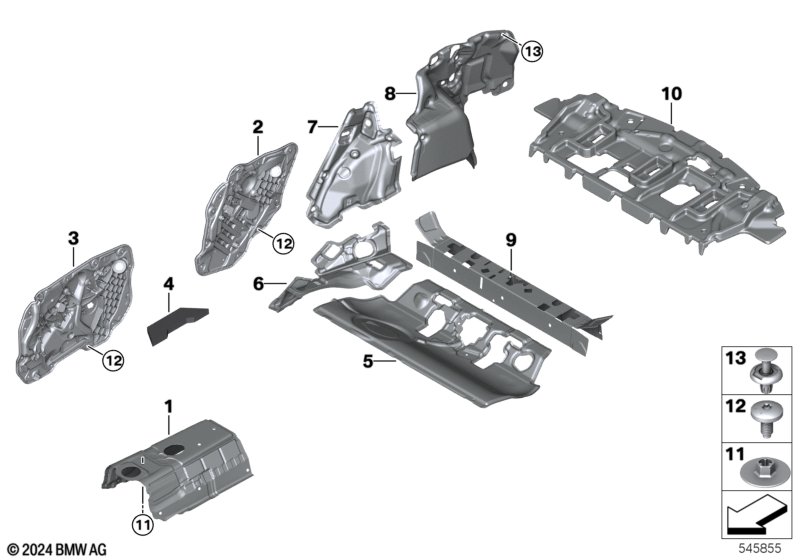

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 216. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation, tunnel | 1 | 51487952071 | NoS | Shop at ECS Tuning | |||||
| 02 | Sound insulating door rear left | 1 | 51485A35953 | Shop at ECS Tuning | ||||||
| 02 | Sound insulating door rear right | 1 | 51485A35954 | Shop at ECS Tuning | ||||||
| 03 | Sound insulation, door, front left | 1 | 51485A35951 | Shop at ECS Tuning | ||||||
| 03 | Sound insulation, door, front right | 1 | 51485A35952 | Shop at ECS Tuning | ||||||
| 04 | Lower B-column sound insulation | 2 | 51485B38DE4 | NoS | Shop at ECS Tuning | |||||
| 05 | Sound insulation floor rear | 1 | 51487444954 | NoS | Shop at ECS Tuning | |||||
| 06 | Sound insulation floor rear left | 1 | 51487484761 | NoS | Shop at ECS Tuning | |||||
| 06 | Sound insulation floor rear right | 1 | 51487484762 | NoS | Shop at ECS Tuning | |||||
| 07 | Sound insulating wheel housing rear left | 1 | 51487475717 | NoS | Shop at ECS Tuning | |||||
| 07 | Sound insulating wheel housing rear rig. | 1 | 51487475718 | NoS | Shop at ECS Tuning | |||||
| 08 | Noise insulation, whlhousing, trunk, ri | 1 | 51485A2CFD4 | Shop at ECS Tuning | ||||||
| 08 | Noise insulation, whlhousing, trunk, le | 1 | 51485A6E1D1 | Shop at ECS Tuning | ||||||
| 09 | Acoustic insulation, partition, lower | 1 | 51485A2CFD1 | Shop at ECS Tuning | ||||||
| 10 | Sound insulation for upper partit.trunk | 1 | 51487475722 | NoS | Shop at ECS Tuning | |||||
| 11 | Clip nut | 5X9 D=30 SW10 | 8 | 07147261260 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | M6 | 32 | 07147465017 | Shop at ECS Tuning | |||||
| 13 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
