Exterior trim / grill for BMW 5 Series G99 M5 Touring M5 (2025)

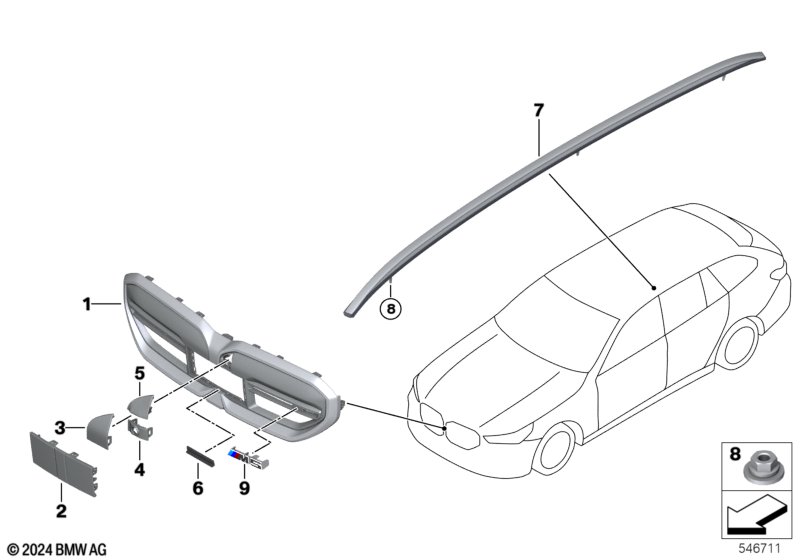

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW Iconic Glow exterior package |
S3DPA=Yes |
|||||||||
| 01 | Front ornamental grille | SHADOWLINE | 1 | 51135A185A5 | Shop at ECS Tuning | |||||
| For vehicles with BMW Iconic Glow exterior package |
S3DPA=No |
|||||||||
| 01 | Front ornamental grille | CHROM | 1 | 51135A16946 | Shop at ECS Tuning | |||||
| For vehicles with BMW Iconic Glow exterior package and Driving Assistant Plus and Driving assistant professional and Preparation Driving Assistant Plus |
S3DPA=Yes S5ATA=No S5AUA=No S9QVA=No |
|||||||||
| 02 | Trim front ornamental grille | M / SCHWARZ | 1 | 51135A3D547 | Shop at ECS Tuning | |||||
| For vehicles with BMW Iconic Glow exterior package and Driving Assistant Plus and Driving assistant professional and Preparation Driving Assistant Plus |
S3DPA=No S5ATA=No S5AUA=No S9QVA=No |
|||||||||
| 02 | Trim front ornamental grille | M / CHROM | 1 | 51135A3D546 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=No S5DWA=No |
|||||||||
| 03 | Blind cover, camera system | M | 1 | 51135A3CDD2 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=Yes S5DWA=Yes |
|||||||||
| 04 | Trim camera system | M | 1 | 51135A3CDD3 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=Yes S5DWA=No |
|||||||||
| 04 | Trim camera system | M | 1 | 51135A3CDD3 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=No S5DWA=Yes |
|||||||||
| 04 | Trim camera system | M | 1 | 51135A3CDD3 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=Yes S5DWA=Yes |
|||||||||
| 05 | Cover, nozzle, camera system | M | 1 | 51135A3CDD4 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=Yes S5DWA=No |
|||||||||
| 05 | Cover, nozzle, camera system | M | 1 | 51135A3CDD4 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=No S5DWA=Yes |
|||||||||
| 05 | Cover, nozzle, camera system | M | 1 | 51135A3CDD4 | Shop at ECS Tuning | |||||
| 06 | Acoustic foam | 1 | 51135B336F8 | Shop at ECS Tuning | ||||||
| 07 | Roof railing, left | GLANZSCHWARZ | 1 | 51138084615 | Shop at ECS Tuning | |||||
| 07 | Roof railing, right | GLANZSCHWARZ | 1 | 51138084616 | Shop at ECS Tuning | |||||
| 08 | Hexagon nut | 6 | 07148494399 | Shop at ECS Tuning | ||||||
| 09 | Badge, ornamental grille | 1 | 51137886686 | Shop at ECS Tuning | ||||||
