Outside mirror for BMW 8 Series G16 Gran Coupé M850iX

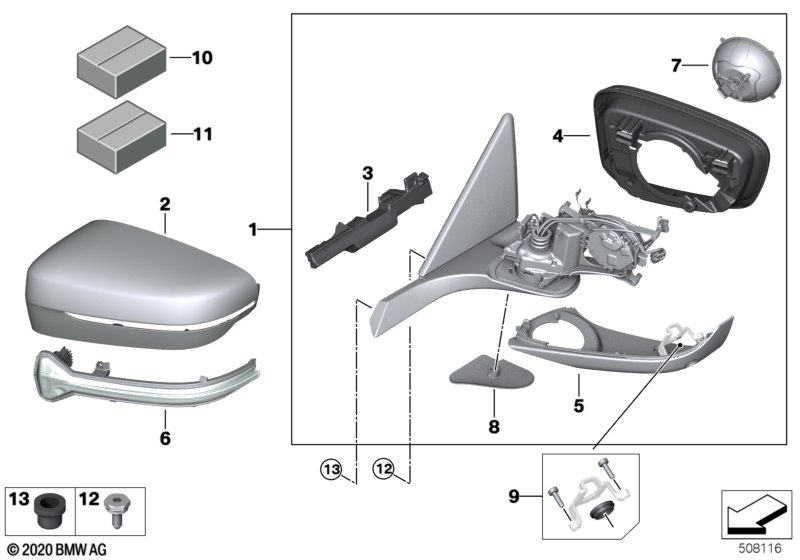

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé M850iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=Yes S5ASA=Yes S5AUA=Yes S5DNA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498907 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498908 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=Yes S5ASA=Yes S5AUA=No S5DNA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498907 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498908 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=Yes S5ASA=No S5AUA=Yes S5DNA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498907 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498908 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=Yes S5ASA=Yes S5AUA=Yes S5DNA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498923 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498924 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=Yes S5ASA=Yes S5AUA=No S5DNA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498923 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498924 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=Yes S5ASA=No S5AUA=Yes S5DNA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498923 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498924 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=No S5ASA=Yes S5AUA=Yes S5DNA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498927 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498928 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=No S5ASA=Yes S5AUA=No S5DNA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498927 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498928 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=No S5ASA=No S5AUA=Yes S5DNA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498927 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498928 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=Yes S5ASA=No S5AUA=No S5DNA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498899 | ENDED | Shop at ECS Tuning | ||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51165B351B3 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498900 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=No S5ASA=No S5AUA=No S5DNA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498919 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498920 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=Yes S5ASA=No S5AUA=No S5DNA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498915 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498916 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=No S5ASA=Yes S5AUA=Yes S5DNA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498911 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498912 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=No S5ASA=Yes S5AUA=No S5DNA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498911 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498912 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=No S5ASA=No S5AUA=Yes S5DNA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498911 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498912 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S346A=No S5ASA=No S5AUA=No S5DNA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2022 | 51169498903 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2022 | 51169498904 | Shop at ECS Tuning | |||||
| For vehicles with M exterior pack carbon |
S71CA=No |
|||||||||
| 02 | Cover cap, primed, left | 1 | 03/2022 | 51167422719 | Shop at ECS Tuning | |||||
| 02 | Cover cap, primed, right | 1 | 03/2022 | 51167422720 | Shop at ECS Tuning | |||||
| For vehicles with M exterior pack carbon |
S71CA=Yes |
|||||||||
| 02 | Cover cap carbon, left | CFK | 1 | 03/2022 | 51167497061 | Shop at ECS Tuning | ||||
| 02 | Cover cap carbon, right | CFK | 1 | 03/2022 | 51167497062 | Shop at ECS Tuning | ||||
| 03 | Seal, outer left mirror triangle | 1 | 03/2022 | 51167458563 | Shop at ECS Tuning | |||||
| 03 | Seal, outer right mirror triangle | 1 | 03/2022 | 51167458564 | Shop at ECS Tuning | |||||
| 04 | Supporting ring left | SHADOW-LINE | 1 | 03/2022 | 51167418813 | Shop at ECS Tuning | ||||
| 04 | Supporting ring right | SHADOW-LINE | 1 | 03/2022 | 51167418814 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur and Parking assistance system Plus |
S346A=Yes S5DNA=No |
|||||||||
| 05 | Housing lower section, left | ANODISING | 1 | 03/2022 | 51167408453 | Shop at ECS Tuning | ||||
| 05 | Housing lower section, right | ANODISING | 1 | 03/2022 | 51167408454 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur and Parking assistance system Plus |
S346A=Yes S5DNA=Yes |
|||||||||
| 05 | Housing lower section, left | ANODISING | 1 | 03/2022 | 51165A1C7E7 | Shop at ECS Tuning | ||||
| 05 | Housing lower section, right | ANODISING | 1 | 03/2022 | 51165A1C7E8 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur and Parking assistance system Plus |
S346A=No S5DNA=No |
|||||||||
| 05 | Housing lower section, left | SHADOW-LINE | 1 | 03/2022 | 51167418817 | Shop at ECS Tuning | ||||
| 05 | Housing lower section, right | SHADOW-LINE | 1 | 03/2022 | 51167418818 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur and Parking assistance system Plus |
S346A=No S5DNA=Yes |
|||||||||
| 05 | Housing lower section, left | SHADOW-LINE | 1 | 03/2022 | 51165A1C7E3 | Shop at ECS Tuning | ||||
| 05 | Housing lower section, right | SHADOW-LINE | 1 | 03/2022 | 51165A1C7E4 | Shop at ECS Tuning | ||||
| 06 | Turn signal lamp ex.rearview mirror left | 1 | 03/2022 | 51167414649 | Shop at ECS Tuning | |||||
| 06 | Turn signal lamp ex.rearview mirror ri. | 1 | 03/2022 | 51167414650 | Shop at ECS Tuning | |||||
| 07 | Drive, outside Memory mirror | 2 | 03/2022 | 67137337847 | Shop at ECS Tuning | |||||
| 08 | Set of mirror base caps | SHADOW-LINE | 1 | 03/2022 | 51169466632 | Shop at ECS Tuning | ||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 09 | Set of camera mounts for exterior mirror | 1 | 03/2022 | 51167444264 | Shop at ECS Tuning | |||||
| 10 | Set of screws | 1 | 03/2022 | 51167444266 | Shop at ECS Tuning | |||||
| 11 | Repair kit exterior rearview mirror | 1 | 03/2022 | 51167460316 | Shop at ECS Tuning | |||||
| 12 | Torx screw, self-threading | M6X17 | 6 | 03/2022 | 07149231823 | Shop at ECS Tuning | ||||
| 13 | Grommet | 2 | 03/2022 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| 14 | Repair kit cable exterior mirror | 1 | 03/2022 | 61359853372 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
