Trim panel dashboard for BMW MINI Cabrio F57 JCW (2019)

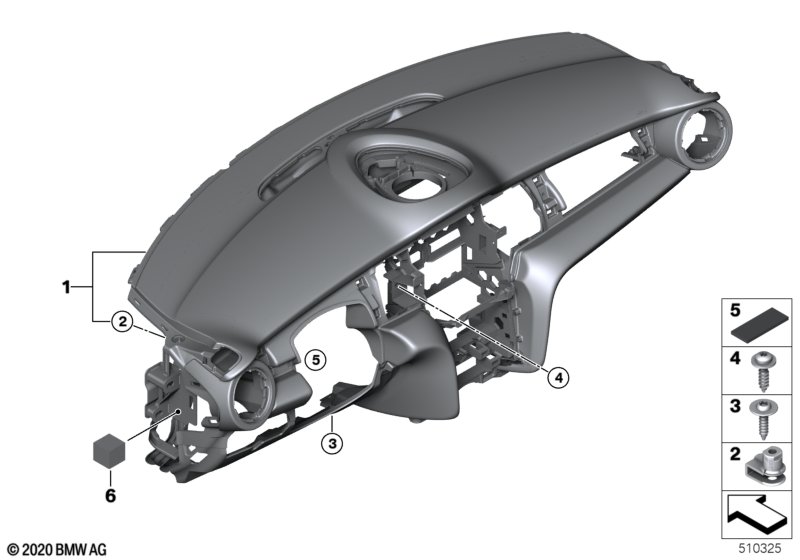

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Colour Line Shadow Grey and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4F2A=Yes S609A=No S6ADA=Yes S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel HeadUp Display | SHADOW GREY | 1 | 51459349647 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Dark Truffle and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4D2A=Yes S609A=No S6ADA=Yes S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel HeadUp Display | DARK TRUFFLE | 1 | 51459349641 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Glowing Red and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4F3A=Yes S609A=No S6ADA=Yes S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel HeadUp Display | GLOWING RED | 1 | 51459349644 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Dark Truffle and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4D2A=Yes S609A=Yes S6ADA=Yes S6FPA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | DARK TRUFFLE | 1 | 11/2015 | 51459378975 | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Shadow Grey and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4F2A=Yes S609A=Yes S6ADA=Yes S6FPA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SHADOW GREY | 1 | 11/2015 | 51459378977 | NoS | Shop at ECS Tuning | |||
| For vehicles with Colour Line Satellite Grey and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4C3A=Yes S609A=No S6ADA=Yes S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel HeadUp Display | SATELLITE GREY | 1 | 51459349638 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Satellite Grey and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4C3A=Yes S547A=No S609A=Yes S6ADA=No S6FPA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel | SATELLITE GREY | 1 | 11/2015 | 51459378964 | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Satellite Grey and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4C3A=Yes S547A=No S609A=No S6ADA=No S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel | SATELLITE GREY | 1 | 51459349607 | Shop at ECS Tuning | |||||
| For vehicles with Colour Line Shadow Grey and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4F2A=Yes S547A=No S609A=Yes S6ADA=No S6FPA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel | SHADOW GREY | 1 | 11/2015 | 51459378967 | NoS | Shop at ECS Tuning | |||
| For vehicles with Colour Line Glowing Red and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and Preparation for navigation system and MINI navigation system |
S4F3A=Yes S609A=Yes S6ADA=Yes S6FPA=Yes S6UFA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | GLOWING RED | 1 | 11/2015 | 51459378976 | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Dark Truffle and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4D2A=Yes S547A=No S609A=No S6ADA=No S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel | DARK TRUFFLE | 1 | 51459349610 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Shadow Grey and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4F2A=Yes S547A=No S609A=No S6ADA=No S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel | SHADOW GREY | 1 | 51459349617 | Shop at ECS Tuning | |||||
| For vehicles with Colour Line Dark Truffle and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4D2A=Yes S547A=No S609A=Yes S6ADA=No S6FPA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel | DARK TRUFFLE | 1 | 11/2015 | 51459378965 | NoS | Shop at ECS Tuning | |||
| For vehicles with Colour Line Glowing Red and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4F3A=Yes S547A=No S609A=No S6ADA=No S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel | GLOWING RED | 1 | 51459349614 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Glowing Red and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and Preparation for navigation system and MINI navigation system |
S4F3A=Yes S547A=No S609A=Yes S6ADA=No S6FPA=Yes S6UFA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel | GLOWING RED | 1 | 11/2015 | 51459378966 | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Satellite Grey and MINI Excitement Package and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4C3A=Yes S4V9A=Yes S547A=No S609A=Yes S6ADA=Yes S6FPA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SATELLITE GREY | 1 | 11/2015 | 51459378974 | NoS | Shop at ECS Tuning | |||
| For vehicles with Colour Line Satellite Grey and Colour Line Dark Truffle and Colour Line Shadow Grey and Colour Line Glowing Red and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4C3A=No S4D2A=No S4F2A=No S4F3A=No S609A=Yes S6ADA=Yes S6FPA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | CARBON BLACK | 1 | 11/2015 | 51459378973 | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Satellite Grey and Colour Line Dark Truffle and Colour Line Shadow Grey and Colour Line Glowing Red and Color Line malt brown and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4C3A=No S4D2A=No S4F2A=No S4F3A=No S4FQA=No S609A=No S6ADA=Yes S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel HeadUp Display | CARBON BLACK | 1 | 51459349635 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Satellite Grey and Colour Line Dark Truffle and Colour Line Shadow Grey and Colour Line Glowing Red and Color Line malt brown and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4C3A=No S4D2A=No S4F2A=No S4F3A=No S4FQA=No S547A=No S609A=No S6ADA=No S6FPA=No S6UMA=No |
|||||||||
| 01 | Instrument panel | CARBON BLACK | 1 | 51459349604 | Shop at ECS Tuning | |||||
| For vehicles with Colour Line Carbon Black and Colour Line Satellite Grey and Colour Line Dark Truffle and Colour Line Shadow Grey and Colour Line Glowing Red and Cockpit chrono package and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and MINI navigation system |
S4C1A=Yes S4C3A=No S4D2A=No S4F2A=No S4F3A=No S547A=No S609A=Yes S6ADA=No S6FPA=Yes S6UMA=Yes |
|||||||||
| 01 | Instrument panel | CARBON BLACK | 1 | 11/2015 | 51459378963 | Shop at ECS Tuning | ||||
| 02 | C-clip for plastic nut | 2 | 07149200938 | Shop at ECS Tuning | ||||||
| 03 | Oval-head screw with washer | DELTA PT4X20 | 4 | 07149185673 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapp.screw w collar | ISA 4,2X19 | 6 | 07148263913 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Felt strip | 100X70X2 | X | 07149199575 | $2.72 | ENDED | Shop at ECS Tuning | |||
| 05 | Set felt strip self-adhesive | X | 51452353024 | Shop at ECS Tuning | ||||||
| 06 | Spacer | 25X25X24MM | 2 | 51438204235 | $0.91 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
