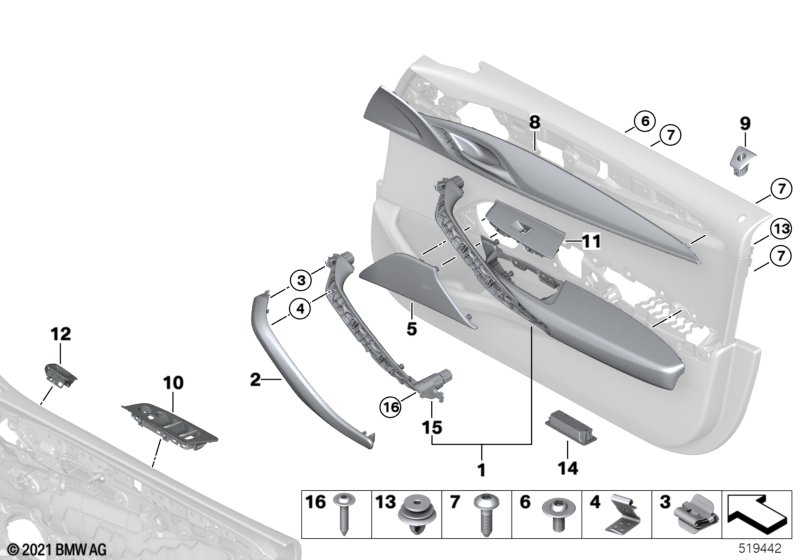

Surface-mounted parts, door panel, front for BMW 5 Series G31 Touring LCI 530e
This Surface-mounted parts, door panel, front technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring LCI 530e. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth junction / anthracite |
BYAT=Yes |
|||||||||
| 01 | Armrest, front left | ANTHRAZIT | 1 | 51417489205 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | ANTHRAZIT | 1 | 51417489206 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/black |
KHSW=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ | 1 | 51415A27DF3 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | SCHWARZ | 1 | 51415A27DF4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige |
KHFY=Yes |
|||||||||
| 01 | Armrest, front left | CANBERRABEIGE | 1 | 51415A27DE7 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | CANBERRABEIGE | 1 | 51415A27DE8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 01 | Armrest, front left | MOKKA | 1 | 51415A27DC3 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | MOKKA | 1 | 51415A27DC4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Exclusive leather Nappa/ivory white |
LZFI=Yes |
|||||||||
| 01 | Armrest, front left | ELFENBEINWEISS | 1 | 51415A27DC1 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | ELFENBEINWEISS | 1 | 51415A27DC2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac |
KHRI=Yes |
|||||||||
| 01 | Armrest, front left | COGNAC | 1 | 51415A27DF1 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | COGNAC | 1 | 51415A27DF2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ | 1 | 51415A27DC5 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | SCHWARZ | 1 | 51415A27DC6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam |
LCEW=Yes LCFI=Yes |
|||||||||
| 01 | Armrest, front left | ELFENBEINWEISS | 1 | 51417489249 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | ELFENBEINWEISS | 1 | 51417489250 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Rhombicle Alcantara anthracite or Leather Dakota/black/contrast blue |
HRAT=Yes LCNL=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ | 1 | 51417489259 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | SCHWARZ | 1 | 51417489260 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
LCFK=Yes LCSW=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ | 1 | 51417489257 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | SCHWARZ | 1 | 51417489258 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
LCRI=Yes LCRO=Yes |
|||||||||
| 01 | Armrest, front left | COGNAC | 1 | 51417489255 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | COGNAC | 1 | 51417489256 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite |
BYAT=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | SCHWARZ | 1 | 51417438529 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | SCHWARZ | 1 | 51417438530 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | MOKKA | 1 | 51415A19717 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | MOKKA | 1 | 51415A19718 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Exclusive leather Nappa/ivory white |
LZFI=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | ELFENBEINWEISS | 1 | 51415A19715 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | ELFENBEINWEISS | 1 | 51415A19716 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Sensatec perforated/cognac |
KHRI=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | COGNAC | 1 | 51419853251 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | COGNAC | 1 | 51419853252 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | SCHWARZ | 1 | 51415A19713 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | SCHWARZ | 1 | 51415A19714 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam |
LCEW=Yes LCFI=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | ELFENBEINWEISS | 1 | 51417491853 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | ELFENBEINWEISS | 1 | 51417491854 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Cloth Rhombicle Alcantara anthracite or Leather Dakota/black/contrast blue |
HRAT=Yes LCNL=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | SCHWARZ/BLAU | 1 | 51418090877 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | SCHWARZ/BLAU | 1 | 51418090878 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
LCFK=Yes LCSW=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | SCHWARZ | 1 | 51417497063 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | SCHWARZ | 1 | 51417497064 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Sensatec perforated/Canberra beige or Sensatec perforated/Canberra beige |
KHCY=Yes KHFY=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | CANBERRABEIGE | 1 | 51419853245 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | CANBERRABEIGE | 1 | 51419853246 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
LCRI=Yes LCRO=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | COGNAC | 1 | 51417491855 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | COGNAC | 1 | 51417491856 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| For vehicles with Cloth/Sensatec/anthracite or Sensatec perforated/black |
KFAT=Yes KHSW=Yes |
|||||||||
| 02 | Trim cover, pull strap, left | SCHWARZ | 1 | 51419853253 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Trim cover, pull strap, right | SCHWARZ | 1 | 51419853254 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 51417367721 | Shop at ECS Tuning | ||||||
| -- | Crash clamp | 1 | 07147381506 | Shop at ECS Tuning | ||||||
| 03 | Crash clamp | 4 | 07147381506 | Shop at ECS Tuning | ||||||
| 04 | Clamp | 2 | 51417367721 | Shop at ECS Tuning | ||||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 05 | Cover, speaker, metal, left | BOWERS&WILKENS | 1 | 65136824623 | Shop at ECS Tuning | |||||
| 05 | Cover, speaker, metal, right | BOWERS&WILKENS | 1 | 65136824624 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 05 | Cover f left loudspeaker | TITAN DUNKEL | 1 | 51417416809 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | TITAN DUNKEL | 1 | 51417416810 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=No S6F1A=No |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51417438565 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51417438566 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and Sensatec perforated/Canberra beige or Sensatec perforated/Canberra beige |
S688A=No S6F1A=No KHCY=Yes KHFY=Yes |
|||||||||
| 05 | Cover f left loudspeaker | CANBERRABEIGE | 1 | 51417438557 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | CANBERRABEIGE | 1 | 51417438558 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white |
S688A=No S6F1A=No LCEW=Yes LCFI=Yes LZFI=Yes |
|||||||||
| 05 | Cover f left loudspeaker | ELFENBEINWEISS | 1 | 51417438559 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | ELFENBEINWEISS | 1 | 51417438560 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | TS4X10 ISA | X | 07147270744 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw with collar | M4X14 | X | 46637659479 | $1.20 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, piano lacquer, black |
S4MLA=Yes |
|||||||||
| 08 | Decor trim aluminium, left | PIANOBLACK | 1 | 51418092315 | Shop at ECS Tuning | |||||
| 08 | Decor trim aluminium, right | PIANOBLACK | 1 | 51418092316 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim alu.rhomb.w.accent strip and Ambient interior lighting |
S4K7A=Yes S4URA=Yes |
|||||||||
| 08 | Decor trim aluminium, left | RHOMBICLE | 1 | 51418090513 | Shop at ECS Tuning | |||||
| 08 | Decor trim aluminium, right | RHOMBICLE | 1 | 51418090514 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim "Fineline Ridge" and Ambient interior lighting |
S4LFA=Yes S4URA=No |
|||||||||
| 08 | Decor cover wood fineline, gloss, left | 1 | 51417488601 | Shop at ECS Tuning | ||||||
| 08 | Decor cover wood fineline, gloss, right | 1 | 51417488602 | Shop at ECS Tuning | ||||||
| For vehicles with Inter.trim finishers aluminum fine cut and Ambient interior lighting |
S4K9A=Yes S4URA=Yes |
|||||||||
| 08 | Decor trim aluminium, left | FEINSCHLIFF | 1 | 51417488611 | Shop at ECS Tuning | |||||
| 08 | Decor trim aluminium, right | FEINSCHLIFF | 1 | 51417488612 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim "Fineline Ridge" and Ambient interior lighting |
S4LFA=Yes S4URA=Yes |
|||||||||
| 08 | Decor cover wood fineline, gloss, left | 1 | 51417488615 | Shop at ECS Tuning | ||||||
| 08 | Decor cover wood fineline, gloss, right | 1 | 51417488616 | Shop at ECS Tuning | ||||||
| For vehicles with Al Rhombicle accent pearl gloss chrome and Ambient interior lighting |
S4KHA=Yes S4URA=Yes |
|||||||||
| 08 | Decor trim aluminium, left | RHOMBICLE | 1 | 51419882305 | NoS | Shop at ECS Tuning | ||||
| 08 | Decor trim aluminium, right | RHOMBICLE | 1 | 51419882306 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim "Fineline Cove" and Ambient interior lighting |
S4LHA=Yes S4URA=No |
|||||||||
| 08 | Decor cover wood fineline, natural, left | 1 | 51417488603 | Shop at ECS Tuning | ||||||
| 08 | Decor cover wood fineline, natural right | 1 | 51417488604 | Shop at ECS Tuning | ||||||
| For vehicles with Poplar grain gray acc.pearl lust.chrome and Ambient interior lighting |
S4LQA=Yes S4URA=Yes |
|||||||||
| 08 | Decor trim, wood, poplar grain, left | GRAU | 1 | 51417488619 | Shop at ECS Tuning | |||||
| 08 | Decor trim, wood, poplar grain, right | GRAU | 1 | 51417488620 | Shop at ECS Tuning | |||||
| For vehicles with Fi.wo.int.tr. Ash grain, gy.br.hi.gl. and Ambient interior lighting |
S4KGA=Yes S4URA=Yes |
|||||||||
| 08 | Dekorblende Holz Esche links | 1 | 51417910841 | NoS | Shop at ECS Tuning | |||||
| 08 | Dekorblende Holz Esche rechts | 1 | 51417910842 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fi.wo.int.tr. Ash grain, gy.br.hi.gl. and Ambient interior lighting |
S4KGA=Yes S4URA=No |
|||||||||
| 08 | Dekorblende Holz Esche links | 1 | 51417910837 | NoS | Shop at ECS Tuning | |||||
| 08 | Dekorblende Holz Esche rechts | 1 | 51417910838 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Inter.trim finishers oxide silver dark and Ambient interior lighting |
S4K8A=Yes S4URA=No |
|||||||||
| 08 | Decor trim, left | OXIDSILBER | 1 | 51417488593 | Shop at ECS Tuning | |||||
| 08 | Decor trim, right | OXIDSILBER | 1 | 51417488594 | Shop at ECS Tuning | |||||
| For vehicles with Black, highgloss Perlglanz chrome accent and Ambient interior lighting |
S4LUA=Yes S4URA=Yes |
|||||||||
| 08 | Decor trim, left | SCHWARZ | 1 | 51417488609 | Shop at ECS Tuning | |||||
| 08 | Decor trim, right | SCHWARZ | 1 | 51417488610 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim "Fineline Cove" and Ambient interior lighting |
S4LHA=Yes S4URA=Yes |
|||||||||
| 08 | Decor cover wood fineline, natural, left | 1 | 51417488617 | Shop at ECS Tuning | ||||||
| 08 | Decor cover wood fineline, natural right | 1 | 51417488618 | Shop at ECS Tuning | ||||||
| For vehicles with Interior trim alu.rhomb.w.accent strip and Ambient interior lighting |
S4K7A=Yes S4URA=No |
|||||||||
| 08 | Decor trim aluminium, left | RHOMBICLE | 1 | 51417940163 | NoS | Shop at ECS Tuning | ||||
| 08 | Decor trim aluminium, right | RHOMBICLE | 1 | 51417940164 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Poplar grain gray acc.pearl lust.chrome and Ambient interior lighting |
S4LQA=Yes S4URA=No |
|||||||||
| 08 | Decor trim, wood, poplar grain, left | GRAU | 1 | 51417488605 | Shop at ECS Tuning | |||||
| 08 | Decor trim, wood, poplar grain, right | GRAU | 1 | 51417488606 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim dark burled walnut and Ambient interior lighting |
S4LGA=Yes S4URA=Yes |
|||||||||
| 08 | Decor cover wood walnut gloss left | DUNKELBRAUN | 1 | 51417488613 | Shop at ECS Tuning | |||||
| 08 | Decor cover wood walnut gloss right | DUNKELBRAUN | 1 | 51417488614 | Shop at ECS Tuning | |||||
| For vehicles with Inter.trim finishers aluminum fine cut and Ambient interior lighting |
S4K9A=Yes S4URA=No |
|||||||||
| 08 | Decor trim aluminium, left | FEINSCHLIFF | 1 | 51417488597 | Shop at ECS Tuning | |||||
| 08 | Decor trim aluminium, right | FEINSCHLIFF | 1 | 51417488598 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim dark burled walnut and Ambient interior lighting |
S4LGA=Yes S4URA=No |
|||||||||
| 08 | Decor cover wood walnut gloss left | DUNKELBRAUN | 1 | 51417488599 | Shop at ECS Tuning | |||||
| 08 | Decor cover wood walnut gloss right | DUNKELBRAUN | 1 | 51417488600 | Shop at ECS Tuning | |||||
| For vehicles with Inter.trim finishers oxide silver dark and Ambient interior lighting |
S4K8A=Yes S4URA=Yes |
|||||||||
| 08 | Decor trim, left | OXIDSILBER | 1 | 51417488607 | Shop at ECS Tuning | |||||
| 08 | Decor trim, right | OXIDSILBER | 1 | 51417488608 | Shop at ECS Tuning | |||||
| For vehicles with Al Rhombicle accent pearl gloss chrome and Ambient interior lighting |
S4KHA=Yes S4URA=No |
|||||||||
| 08 | Decor trim aluminium, left | RHOMBICLE | 1 | 51419882303 | NoS | Shop at ECS Tuning | ||||
| 08 | Decor trim aluminium, right | RHOMBICLE | 1 | 51419882304 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Black, highgloss Perlglanz chrome accent and Ambient interior lighting |
S4LUA=Yes S4URA=No |
|||||||||
| 08 | Decor trim, left | SCHWARZ | 1 | 51417488595 | Shop at ECS Tuning | |||||
| 08 | Decor trim, right | SCHWARZ | 1 | 51417488596 | Shop at ECS Tuning | |||||
| 09 | Cover, locking button left | SCHWARZ | 1 | 51417489387 | Shop at ECS Tuning | |||||
| 09 | Cover, locking button right | SCHWARZ | 1 | 51417489388 | Shop at ECS Tuning | |||||
| For vehicles with Outside mirror with auto dip |
S4T8A=Yes |
|||||||||
| 10 | Trim cover, switch module, left | SCHWARZ | 1 | 51417438577 | Shop at ECS Tuning | |||||
| For vehicles with Outside mirror with auto dip |
S4T8A=No |
|||||||||
| 10 | Trim cover, switch module, left | SCHWARZ | 1 | 51417438571 | Shop at ECS Tuning | |||||
| For vehicles with Outside mirror with auto dip and Sensatec perforated/Canberra beige or Sensatec perforated/Canberra beige |
S4T8A=No KHCY=Yes KHFY=Yes |
|||||||||
| 10 | Trim cover, switch module, left | CANBERRABEIGE | 1 | 51417438567 | Shop at ECS Tuning | |||||
| For vehicles with Outside mirror with auto dip and Sensatec perforated/Canberra beige or Sensatec perforated/Canberra beige |
S4T8A=Yes KHCY=Yes KHFY=Yes |
|||||||||
| 10 | Trim cover, switch module, left | CANBERRABEIGE | 1 | 51417438573 | Shop at ECS Tuning | |||||
| For vehicles with Outside mirror with auto dip and Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white |
S4T8A=Yes LCEW=Yes LCFI=Yes LZFI=Yes |
|||||||||
| 10 | Trim cover, switch module, left | ELFENBEINWEISS | 1 | 51417438575 | Shop at ECS Tuning | |||||
| For vehicles with Outside mirror with auto dip and Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white |
S4T8A=No LCEW=Yes LCFI=Yes LZFI=Yes |
|||||||||
| 10 | Trim cover, switch module, left | ELFENBEINWEISS | 1 | 51417438569 | Shop at ECS Tuning | |||||
| 11 | Trim cover, switch, power window, right | SCHWARZ | 1 | 51417438584 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec perforated/Canberra beige or Sensatec perforated/Canberra beige |
KHCY=Yes KHFY=Yes |
|||||||||
| 11 | Trim cover, switch, power window, right | CANBERRABEIGE | 1 | 51417438580 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white |
LCEW=Yes LCFI=Yes LZFI=Yes |
|||||||||
| 11 | Trim cover, switch, power window, left | ELFENBEINWEISS | 1 | 51417438581 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 12 | Trim cover, switch, trunk lid | SCHWARZ | 1 | 51417438587 | Shop at ECS Tuning | |||||
| 13 | Clip | 20 | 51417325082 | Shop at ECS Tuning | ||||||
| 14 | LED for interior lamp | KALTWEISS | 2 | 63319313574 | Shop at ECS Tuning | |||||
| 15 | Support, pull strap, left | SCHWARZ | 1 | 51417438523 | Shop at ECS Tuning | |||||
| 15 | Support, pull strap, right | SCHWARZ | 1 | 51417438524 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec perforated/Canberra beige or Sensatec perforated/Canberra beige |
KHCY=Yes KHFY=Yes |
|||||||||
| 15 | Support, pull strap, left | CANBERRABEIGE | 1 | 51417438521 | Shop at ECS Tuning | |||||
| 15 | Support, pull strap, right | CANBERRABEIGE | 1 | 51417438522 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white |
LCEW=Yes LCFI=Yes LZFI=Yes |
|||||||||
| 15 | Support, pull strap, left | ELFENBEINWEISS | 1 | 51417450177 | Shop at ECS Tuning | |||||
| 15 | Support, pull strap, right | ELFENBEINWEISS | 1 | 51417450178 | Shop at ECS Tuning | |||||
| 16 | Torx-bolt for plastic material | ISA L=25MM | 4 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G31 Touring LCI 530e Surface-mounted parts, door panel, front?
- This technical diagram illustrates the Surface-mounted parts, door panel, front within the Vehicle trim group for the 5 Series G31 Touring LCI 530e. It provides a detailed exploded view of the components, identifying key parts such as the Armrest, front left (Part #51417489205).
- Which models use the hardware listed in this Surface-mounted parts, door panel, front?
- The hardware and components featured in the Surface-mounted parts, door panel, front are specific to the 5 Series G31 Touring LCI 530e. These technical specifications ensure that parts like the Armrest, front left (51417489205) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Surface-mounted parts, door panel, front assembly?
- Each item in the Surface-mounted parts, door panel, front corresponds to the numbered list below the illustration. For the 5 Series G31 Touring LCI 530e, you can identify the Armrest, front left by locating its position on the schematic, which then links to the official BMW part number 51417489205 for the Vehicle trim section.
