Headlining for BMW 4 Series G22 Coupé 420d (2024)

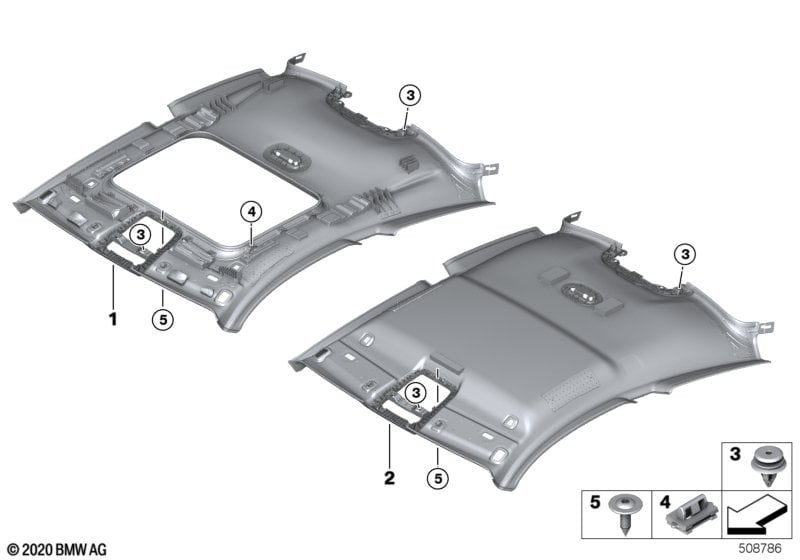

This Headlining technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=Yes S775A=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | SCHWARZ | 1 | 51448097323 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
S403A=Yes S775A=No KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | CANBERRABEIGE | 1 | 51449477947 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
S403A=Yes S775A=No KFSW=Yes KGNL=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MANL=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | ELFENBEINWEISS | 1 | 51449477948 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=No S775A=Yes |
|||||||||
| 02 | Headlining | SCHWARZ | 1 | 51448097321 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
S403A=No S775A=No KHFR=Yes KHFS=Yes |
|||||||||
| 02 | Headlining | CANBERRABEIGE | 1 | 51449477933 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
S403A=No S775A=No KFSW=Yes KGNL=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MANL=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 02 | Headlining | ELFENBEINWEISS | 1 | 51449477934 | NoS | Shop at ECS Tuning | ||||
| 03 | Clip Natur | 4 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 04 | Clip, panoramic glass sunroof | 14 | 07147212593 | $0.36 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapp.screw w collar | ST 3,5X12 | 1 | 07147139407 | $0.11 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
