Rear window shelf for BMW 4 Series G22 Coupé 430dX (2024)

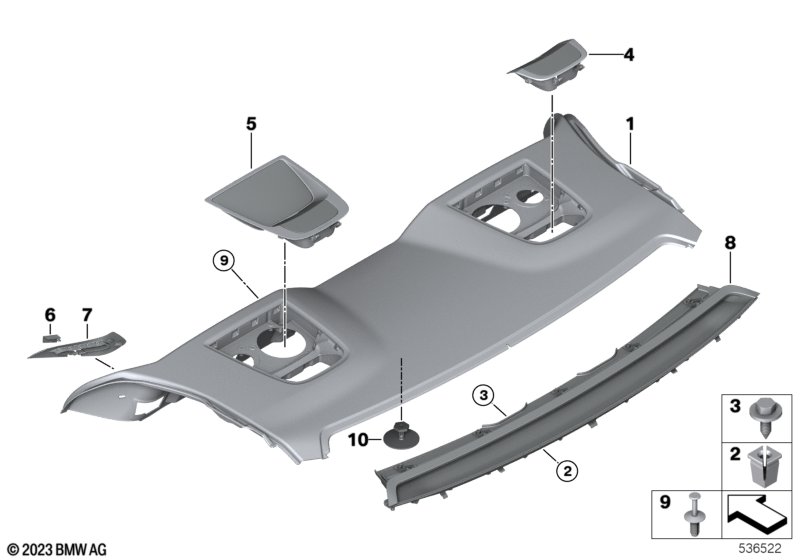

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite |
S688A=Yes S775A=Yes |
|||||||||
| 01 | Rear window shelf | M | 1 | 51468097336 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 10/2021 | 51469478138 | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite |
S688A=Yes S775A=No |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51469478138 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite |
S688A=No S775A=Yes |
|||||||||
| 01 | Rear window shelf | M | 1 | 51468097335 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite |
S688A=No S775A=No |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51469478136 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite and Leath.Vernasca/Canberra beige de.stitch. |
S688A=Yes S775A=No MAFO=Yes |
|||||||||
| 01 | Rear window shelf | CANBERRABEIGE | 1 | 10/2021 | 51469478139 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite and Leath.Vernasca/Canberra beige de.stitch. |
S688A=No S775A=No MAFO=Yes |
|||||||||
| 01 | Rear window shelf | CANBERRABEIGE | 1 | 10/2021 | 51469478137 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
S688A=No S775A=No KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 10/2021 | 51469478136 | NoS | Shop at ECS Tuning | |||
| 02 | Expanding nut | ST4,8MM | 4 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,8X16 | 4 | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite |
S688A=No S775A=Yes |
|||||||||
| 04 | Trim cover for Top Tether | SCHWARZ | 2 | 51469472521 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite |
S688A=No S775A=No |
|||||||||
| 04 | Trim cover for Top Tether | SCHWARZ | 2 | 51469472521 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite and Leath.Vernasca/Canberra beige de.stitch. |
S688A=No S775A=No MAFO=Yes |
|||||||||
| 04 | Trim cover for Top Tether | CANBERRABEIGE | 2 | 10/2021 | 51469472516 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
S688A=No S775A=No KHFR=Yes KHFS=Yes |
|||||||||
| 04 | Trim cover for Top Tether | SCHWARZ | 2 | 10/2021 | 51469472521 | NoS | Shop at ECS Tuning | |||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 05 | Cover Loudspeaker | 2 | 51466998477 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 06 | Cover panel for belt gap cover left | SCHWARZ | 1 | 51469472519 | Shop at ECS Tuning | |||||
| 06 | Cover panel for belt gap cover right | SCHWARZ | 1 | 51469472520 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=No |
|||||||||
| 06 | Cover panel for belt gap cover left | SCHWARZ | 1 | 51469472519 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover panel for belt gap cover right | SCHWARZ | 1 | 51469472520 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. |
S775A=No KHFR=Yes KHFS=Yes MAFO=Yes |
|||||||||
| 06 | Cover panel for belt gap cover left | CANBERRABEIGE | 1 | 51469472517 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover panel for belt gap cover right | CANBERRABEIGE | 1 | 51469472518 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 07 | Cover, belt outlet, right | SCHWARZ | 1 | 51469478026 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=No |
|||||||||
| 07 | Cover, belt outlet, left | SCHWARZ | 1 | 51469478025 | NoS | Shop at ECS Tuning | ||||
| 07 | Cover, belt outlet, right | SCHWARZ | 1 | 51469478026 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. |
S775A=No KHFR=Yes KHFS=Yes MAFO=Yes |
|||||||||
| 07 | Cover, belt outlet, left | CANBERRABEIGE | 1 | 51469478023 | NoS | Shop at ECS Tuning | ||||
| 07 | Cover, belt outlet, right | CANBERRABEIGE | 1 | 51469478024 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 08 | Cover, luggage screen | SCHWARZ | 1 | 51467491179 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=No |
|||||||||
| 08 | Cover, luggage screen | SCHWARZ | 1 | 51467491179 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. |
S775A=No KHFR=Yes KHFS=Yes MAFO=Yes |
|||||||||
| 08 | Cover, luggage screen | CANBERRABEIGE | 1 | 51469875145 | NoS | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Package shelf bracket | 2 | 51469108183 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 430dX Rear window shelf?
- This technical diagram illustrates the Rear window shelf within the Vehicle trim group for the 4 Series G22 Coupé 430dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Rear window shelf (Part #51468097336).
- Which models use the hardware listed in this Rear window shelf?
- The hardware and components featured in the Rear window shelf are specific to the 4 Series G22 Coupé 430dX produced during 2024. These technical specifications ensure that parts like the Rear window shelf (51468097336) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear window shelf assembly?
- Each item in the Rear window shelf corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 430dX, you can identify the Rear window shelf by locating its position on the schematic, which then links to the official BMW part number 51468097336 for the Vehicle trim section.
