Mounting parts, door trim for BMW 4 Series G22 Coupé M440i (2024)

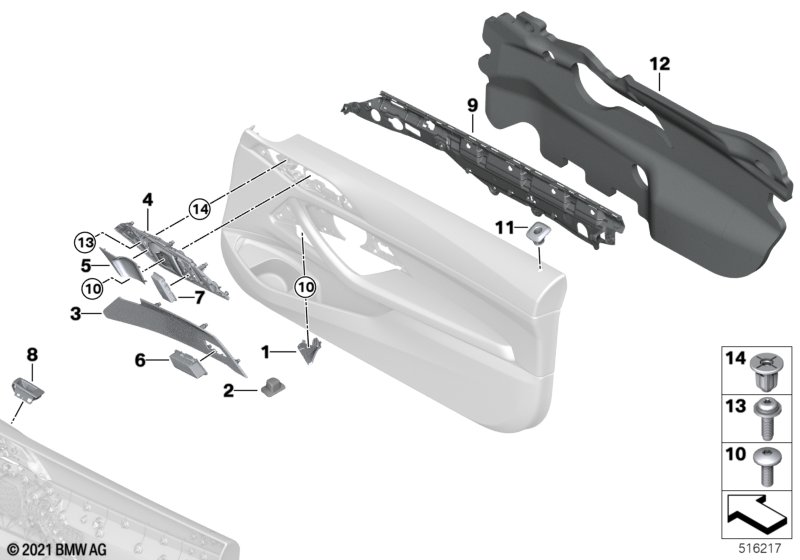

This Mounting parts, door trim technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Screw cover cap, left | SCHWARZ | 1 | 51419892849 | NoS | Shop at ECS Tuning | ||||
| 01 | Screw cover, right | SCHWARZ | 1 | 51419892850 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Screw cover cap, left | OYSTER | 1 | 51419892845 | NoS | Shop at ECS Tuning | ||||
| 01 | Screw cover, right | OYSTER | 1 | 51419892846 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 01 | Screw cover cap, left | CANBERRABEIGE | 1 | 51419892847 | NoS | Shop at ECS Tuning | ||||
| 01 | Screw cover, right | CANBERRABEIGE | 1 | 51419892848 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror |
S313A=No |
|||||||||
| 02 | Cover plate | SCHWARZ | 1 | 61315A0DE36 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 03 | Cover loudspeaker left | SCHWARZ | 1 | 51415A11B43 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Cover loudspeaker right | SCHWARZ | 1 | 51415A11B44 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister head screw | TS4X10 ISA | 6 | 07147270744 | Shop at ECS Tuning | |||||
| -- | Spring nut | 8 | 07149459832 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 03 | Cover loudspeaker left | 1 | 51415A11AE1 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 03 | Cover loudspeaker right | 1 | 51415A11AE2 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fillister head screw | TS4X10 ISA | 6 | 07147270744 | Shop at ECS Tuning | |||||
| -- | Spring nut | 8 | 07149459832 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system and Leather Vernasca/ oyster dec.stitching |
S688A=No MAOI=Yes |
|||||||||
| 03 | Cover loudspeaker left | OYSTER | 1 | 51415A11B45 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Cover loudspeaker right | OYSTER | 1 | 51415A11B46 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister head screw | TS4X10 ISA | 6 | 07147270744 | Shop at ECS Tuning | |||||
| -- | Spring nut | 8 | 07149459832 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S688A=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 03 | Cover loudspeaker left | CANBERRABEIGE | 1 | 51415A11B47 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Cover loudspeaker right | CANBERRABEIGE | 1 | 51415A11B48 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister head screw | TS4X10 ISA | 1 | 07147270744 | Shop at ECS Tuning | |||||
| -- | Spring nut | 1 | 07149459832 | Shop at ECS Tuning | ||||||
| 04 | Door handle, inside left | 1 | 51415A11AD1 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 04 | Door handle inner right | 1 | 51415A11AD2 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Spring nut | 7 | 07149459832 | NoS | Shop at ECS Tuning | |||||
| 05 | Covering left | 1 | 51417940417 | NoS | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 51417940418 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 06 | Blanking plate, right | SCHWARZ | 1 | 51415A1C458 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Leather Vernasca/ oyster dec.stitching |
S688A=No MAOI=Yes |
|||||||||
| 06 | Blanking plate, right | OYSTER | 1 | 51415A1C454 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S688A=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 06 | Blanking plate, right | CANBERRABEIGE | 1 | 51415A1C456 | NoS | Shop at ECS Tuning | ||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 08 | Trunk lid cover | SCHWARZ | 1 | 51415A1C450 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 08 | Trunk lid cover | SCHWARZ | 1 | 51415A1C450 | NoS | Shop at ECS Tuning | ||||
| 09 | Switch panel, left | 1 | 51417944185 | NoS | Shop at ECS Tuning | |||||
| 09 | Switch panel, right | 1 | 51417944186 | NoS | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | ISA | 10 | 07149281969 | Shop at ECS Tuning | |||||
| 11 | Cover, locking button left | 1 | 51415A11AE3 | NoS | Shop at ECS Tuning | |||||
| 11 | Cover, locking button right | 1 | 51415A11AE4 | NoS | Shop at ECS Tuning | |||||
| 12 | Acoustic insulation felt, front left | 1 | 51415A11AE5 | NoS | Shop at ECS Tuning | |||||
| 12 | Acoustic nonwoven front right | 1 | 51415A11AE6 | NoS | Shop at ECS Tuning | |||||
| 13 | Screw | VS-TS6X20-U2 | 2 | 07129909270 | Shop at ECS Tuning | |||||
| 14 | Expanding nut | 2 | 07149177765 | $0.56 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
