Exterior trim / grill for BMW 5 Series G30 LCI 530e (2023)

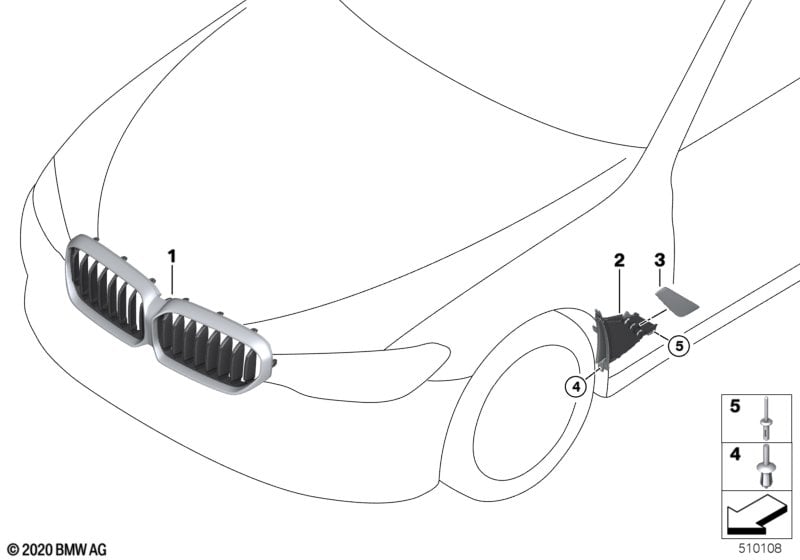

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Parking assistance system Plus and M Shadow Line with expanded scope |
S5DNA=Yes S7M9A=Yes |
|||||||||
| 01 | Grill front | SHADOWLINE/ICAM | 1 | 51129852169 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and M Shadow Line with expanded scope |
S5DNA=No S7M9A=Yes |
|||||||||
| 01 | Grill front | SHADOWLINE | 1 | 51129852168 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
L8AAA=No S5DNA=Yes S715A=Yes S7M9A=No |
|||||||||
| 01 | Grill front | M / ICAM | 1 | 51129852284 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
P7S2A=No S5DNA=No S715A=No S7M9A=No |
|||||||||
| 01 | Grill front | BASIS | 1 | 51139464210 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
L8AAA=No S5DNA=No S715A=Yes S7M9A=No |
|||||||||
| 01 | Grill front | M | 1 | 51129852283 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
P7S2A=No S5DNA=Yes S715A=No S7M9A=No |
|||||||||
| 01 | Grill front | ICAM | 1 | 51139464217 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
L8AAA=Yes S5DNA=No S715A=Yes S7M9A=No |
|||||||||
| 01 | Grill front | M | 1 | 51129852283 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
L8AAA=Yes S5DNA=Yes S715A=Yes S7M9A=No |
|||||||||
| 01 | Grill front | M / ICAM | 1 | 51129852284 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Luxury Line and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
L8AAA=No P7S2A=Yes S5DNA=No S715A=No S7M9A=No |
|||||||||
| 01 | Grill front | LUXURY | 1 | 51139464218 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Luxury Line and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
L8AAA=Yes P7S2A=Yes S5DNA=Yes S715A=No S7M9A=No |
|||||||||
| 01 | Grill front | LUXURY / ICAM | 1 | 51139464219 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Luxury Line and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
L8AAA=Yes P7S2A=Yes S5DNA=No S715A=No S7M9A=No |
|||||||||
| 01 | Grill front | LUXURY | 1 | 51139464218 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Luxury Line and Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
L8AAA=No P7S2A=Yes S5DNA=Yes S715A=No S7M9A=No |
|||||||||
| 01 | Grill front | LUXURY / ICAM | 1 | 51139464219 | Shop at ECS Tuning | |||||
| 02 | Air duct, sidewall, inner left | 1 | 51137349591 | Shop at ECS Tuning | ||||||
| 02 | Air duct, sidewall, inner right | 1 | 51137349592 | Shop at ECS Tuning | ||||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 03 | Trim, air duct, sidewall, left | CHROM | 1 | 51137349593 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 03 | Trim, air duct, sidewall, left | ALU SATINIERT | 1 | 51748063259 | Shop at ECS Tuning | |||||
| 03 | Trim, air duct, sidewall, right | ALU SATINIERT | 1 | 51748063260 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and M Aerodynamics package and High gloss shadow line and M Shadow Line with expanded scope |
S3MBA=No S715A=No S760A=No S7M9A=No |
|||||||||
| 03 | Trim, air duct, sidewall, left | CHROM | 1 | 51137349593 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Indiv. Ext. Line, burnished aluminium and M Aerodynamics package and High gloss shadow line |
S346A=No S3MBA=No S715A=No S760A=No |
|||||||||
| 03 | Trim, air duct, sidewall, left | CHROM | 1 | 51137349593 | Shop at ECS Tuning | |||||
| 03 | Trim, air duct, sidewall, right | CHROM | 1 | 51137349594 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Indiv. Ext. Line, burnished aluminium and M Aerodynamics package and High gloss shadow line |
S346A=No S3MBA=No S715A=Yes S760A=Yes |
|||||||||
| 03 | Trim, air duct, sidewall, left | GLANZSCHWARZ | 1 | 51747439013 | Shop at ECS Tuning | |||||
| 03 | Trim, air duct, sidewall, right | GLANZSCHWARZ | 1 | 51747439014 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Indiv. Ext. Line, burnished aluminium and M Aerodynamics package and High gloss shadow line |
S346A=No S3MBA=No S715A=Yes S760A=No |
|||||||||
| 03 | Trim, air duct, sidewall, left | GLANZSCHWARZ | 1 | 51747439013 | Shop at ECS Tuning | |||||
| 03 | Trim, air duct, sidewall, right | GLANZSCHWARZ | 1 | 51747439014 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur and Indiv. Ext. Line, burnished aluminium and M Aerodynamics package and High gloss shadow line |
S346A=No S3MBA=No S715A=No S760A=Yes |
|||||||||
| 03 | Trim, air duct, sidewall, left | GLANZSCHWARZ | 1 | 51747439013 | Shop at ECS Tuning | |||||
| 03 | Trim, air duct, sidewall, right | GLANZSCHWARZ | 1 | 51747439014 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | L = 11MM | 4 | 07149807127 | Shop at ECS Tuning | |||||
| 05 | Blind compression rivet | 4 | 07147378241 | Shop at ECS Tuning | ||||||
