Lateral trunk floor trim panel for BMW 4 Series G23 Convertible 420i (2024)

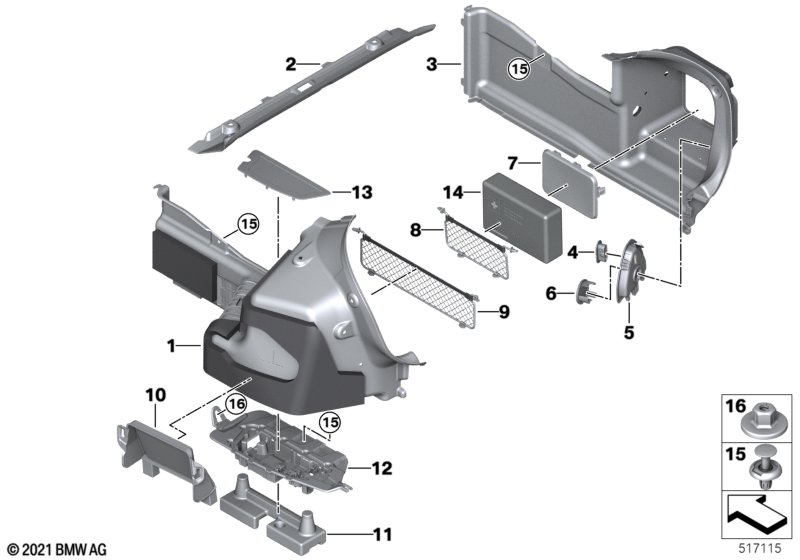

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 01 | Left trunk trim | 1 | 51477489585 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Left trunk trim | 1 | 51477490009 | NoS | Shop at ECS Tuning | |||||
| 02 | Rear window frame trim | 1 | 51477489600 | NoS | Shop at ECS Tuning | |||||
| 03 | Right TRUNK TRIM | 1 | 03/2023 | 51477489586 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling and Storage compartment package |
S3ACA=Yes S493A=No |
|||||||||
| 03 | Right TRUNK TRIM | 1 | 51475A26EE8 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling and Emergency release, luggage compartment |
S3ACA=Yes S5DSA=Yes |
|||||||||
| 03 | Right TRUNK TRIM | 1 | 51475A26EE8 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling and Emergency release, luggage compartment |
S3ACA=Yes S5DSA=No |
|||||||||
| 03 | Right TRUNK TRIM | 1 | 51475A26EE8 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling and Emergency release, luggage compartment |
S3ACA=No S5DSA=Yes |
|||||||||
| 03 | Right TRUNK TRIM | 1 | 51475A26EE8 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and Emergency release, luggage compartment |
S3ACA=Yes S5DSA=No |
|||||||||
| 04 | Seal plug | SCHWARZ | 1 | 51477381117 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and Emergency release, luggage compartment |
S3ACA=Yes S5DSA=Yes |
|||||||||
| 05 | Cover emergency unlocking | 1 | 51477381926 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling and Emergency release, luggage compartment |
S3ACA=Yes S5DSA=No |
|||||||||
| 05 | Cover emergency unlocking | 1 | 51477381926 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling and Emergency release, luggage compartment |
S3ACA=No S5DSA=Yes |
|||||||||
| 05 | Cover emergency unlocking | 1 | 51477381926 | Shop at ECS Tuning | ||||||
| 06 | Trim cover for button | 1 | 51477396474 | Shop at ECS Tuning | ||||||
| 07 | Cover, power distribution box | 1 | 51475A24399 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 08 | Network side trim panel right | 1 | 51475A243A9 | NoS | Shop at ECS Tuning | |||||
| 09 | Network side trim panel, left | 1 | 51475A243A0 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 10 | Impact absorber, left | 1 | 51479108444 | NoS | Shop at ECS Tuning | |||||
| 11 | Left support | 1 | 51475A12390 | NoS | Shop at ECS Tuning | |||||
| 12 | Trunk tray | 1 | 51477489593 | NoS | Shop at ECS Tuning | |||||
| 13 | Cover, storage compartment | 1 | 51476998225 | NoS | Shop at ECS Tuning | |||||
| 14 | First-aid kit, case, black | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
| Attachment luggage compartment trim panel left/right |
||||||||||
| 15 | Expanding rivet | 8 | 07147401727 | Shop at ECS Tuning | ||||||
| Attachment storage tray | ||||||||||
| 15 | Expanding rivet | 1 | 07147401727 | Shop at ECS Tuning | ||||||
| 16 | Plastic capnut with washer | D=22MM | 1 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
