M cover for rocker panel / wheel arch for BMW 5 Series G30 LCI 520dX (2022)

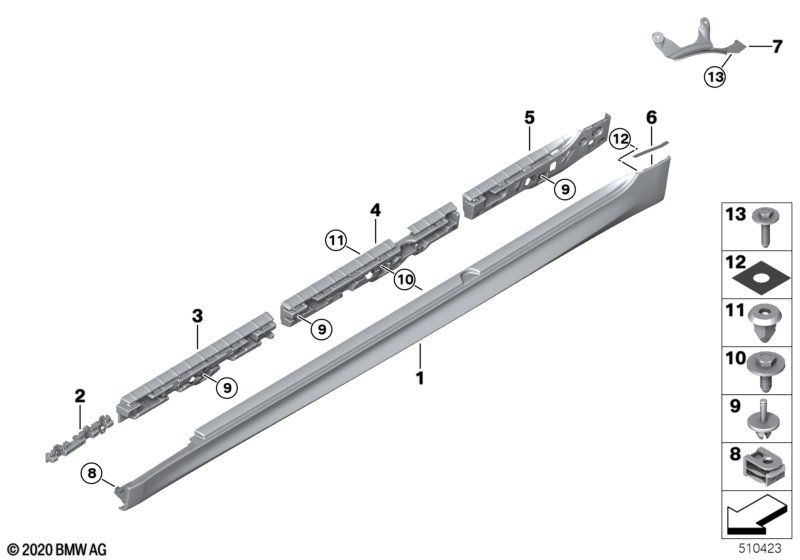

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Rocker panel trim, primed, left | -M- | 1 | 51778073133 | Shop at ECS Tuning | |||||
| 01 | Rocker panel trim, primed, right | -M- | 1 | 51778073134 | Shop at ECS Tuning | |||||
| 02 | Supporting ledge left | 1 | 51777387341 | Shop at ECS Tuning | ||||||
| 02 | Supporting ledge right | 1 | 51777387342 | Shop at ECS Tuning | ||||||
| 03 | Supporting ledge left | 1 | 51777387343 | Shop at ECS Tuning | ||||||
| 03 | Supporting ledge right | 1 | 51777387344 | Shop at ECS Tuning | ||||||
| 04 | Supporting ledge left | 1 | 51777387345 | Shop at ECS Tuning | ||||||
| 04 | Supporting ledge right | 1 | 51777387346 | Shop at ECS Tuning | ||||||
| 05 | Supporting ledge left | 1 | 51777387347 | Shop at ECS Tuning | ||||||
| 05 | Supporting ledge right | 1 | 51777387348 | Shop at ECS Tuning | ||||||
| 06 | Paint protect. film, rocker panel, left | 1 | 51777385753 | Shop at ECS Tuning | ||||||
| 06 | Paint protect. film, rocker panel, right | 1 | 51777385754 | Shop at ECS Tuning | ||||||
| For vehicles with Country-specific equipment Russia 10323 |
S8LRA=Yes |
|||||||||
| 07 | Wheel arch trim, rear left | 1 | 51777448307 | Shop at ECS Tuning | ||||||
| 07 | Wheel arch trim, rear right | 1 | 51777448308 | Shop at ECS Tuning | ||||||
| 08 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | 16 | 07147213303 | Shop at ECS Tuning | ||||||
| 10 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 11 | Expanding nut | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Abrasion-resistant film | 2 | 51777489805 | Shop at ECS Tuning | ||||||
| 13 | Hexagon screw for plastic | 2 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
