M Trim, rear for BMW 5 Series G30 LCI 530dX (2023)

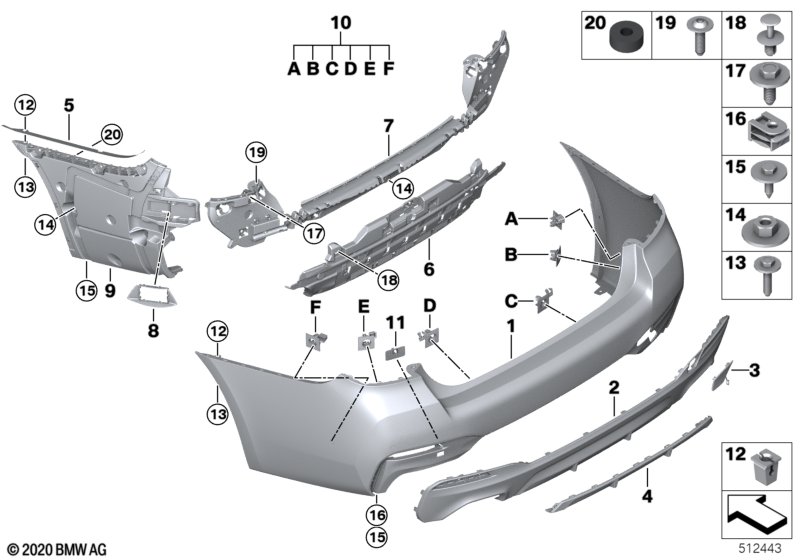

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| For vehicles with National version China and Parking assistance system and Parking assistance system Plus |
L8AAA=Yes S5DMA=No S5DNA=No |
|||||||||
| 01 | Bumper trim panel, rear | M PDC/PMA | 1 | 51125A2C1E9 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B4E201 | Shop at ECS Tuning | |||||
| 02 | Trim panel, bumper, rear, bottom | M | 1 | 51128098694 | Shop at ECS Tuning | |||||
| 03 | Cover, tow fitting rear, painted | M | 1 | 51128746050 | Shop at ECS Tuning | |||||
| 05 | Left protection foil | 1 | 51127385755 | Shop at ECS Tuning | ||||||
| 05 | Right protection foil | 1 | 51127385756 | Shop at ECS Tuning | ||||||
| 06 | Exhaust support | M | 1 | 51128098702 | Shop at ECS Tuning | |||||
| 07 | Guide, center rear | M | 1 | 51128098687 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=Yes |
|||||||||
| 08 | Absorber funnel, left | M SRR | 1 | 51128746053 | Shop at ECS Tuning | |||||
| 08 | Absorber funnel, right | M SRR | 1 | 51128746054 | Shop at ECS Tuning | |||||
| 09 | Guide, rear left | M | 1 | 51128098689 | Shop at ECS Tuning | |||||
| 09 | Guide, rear right | M | 1 | 51128098690 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 10 | Kit, mount for PDC/PMA sensor, rear | M | 1 | 51125A35818 | Shop at ECS Tuning | |||||
| 12 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Hexagon screw for plastic | 8 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 14 | Combination nut | 19 | 07147305178 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt | TS5X20 SW8 D=22 | 4 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 16 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 17 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 18 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 19 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Gasket ring | 4 | 51127256354 | Shop at ECS Tuning | ||||||
